USB
SM 7 G338/G339
Scanner/
Printer Unit
G338/G339

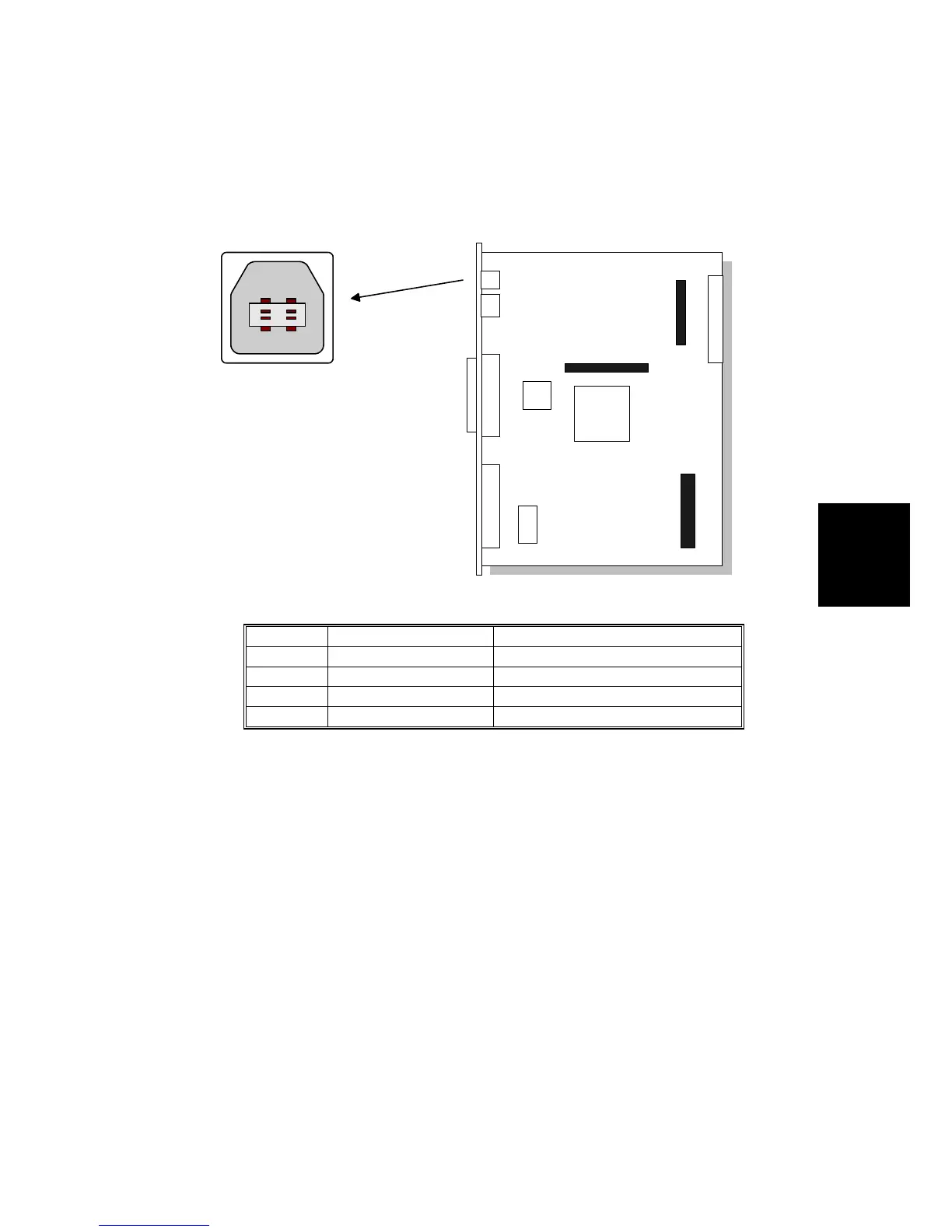

1.4 USB
1.4.1 PIN ASSIGNMENT
The controller has a type “B” receptacle (CN10).
Pin No. Signal Description Wiring Assignment
1 Power Red
2 Data – White
3 Data + Green
4 Power GND White
Controller Board
SIMAC
Parallel I/FIC Card I/F
NVRAM
CN5 (SLOT1)
CN4
CPU
CN1
CN2
USB I/F
Ethernet I/F
(standard for G073 model)
12
34
G338D906.WMF
