REPLACEMENT AND ADJUSTMENT
B478/B513/B531 20 SM
3.7.1 STACKING ROLLER/ROLLER DRAG MOTORS, RETURN HP
SENSOR
1. Do the procedures to remove the front door and all covers, with the exception
of the left lower cover and top cover (labeled [C]: and [E]).
NOTE: Be sure to lower the shift tray by pulling the gear toward you. The shift
tray must be down.
2. Remove the shift tray motor. ( 3.7)
3. Remove the left stay [A] ( x 3).
4. Unhook the stay at top [B].
5. Remove the shift tray mounting plate [C] ( x 2).

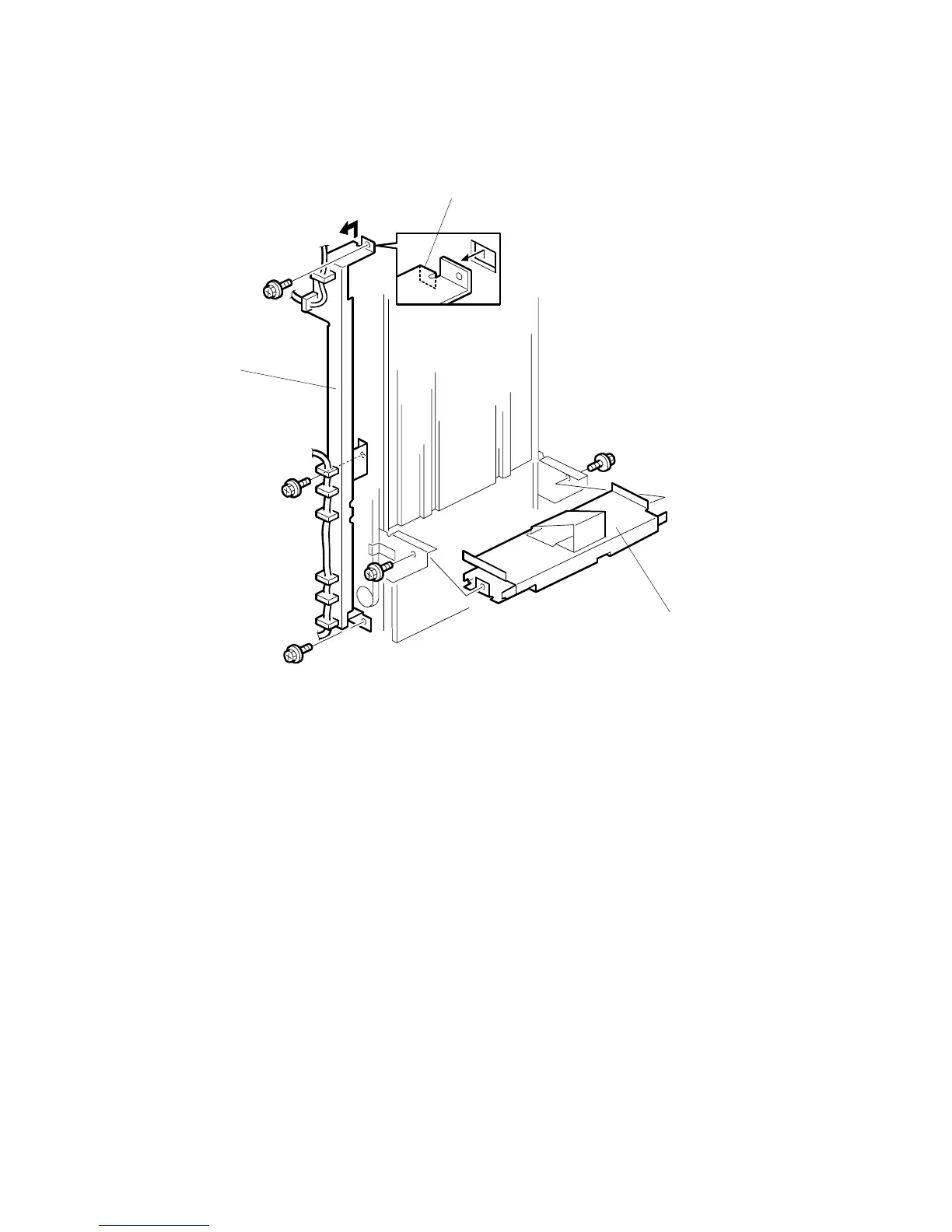

B478R526.WMF
[A]
[B]
[C]
