Roland M-5000 Reference Manual

CH EDIT Window
103

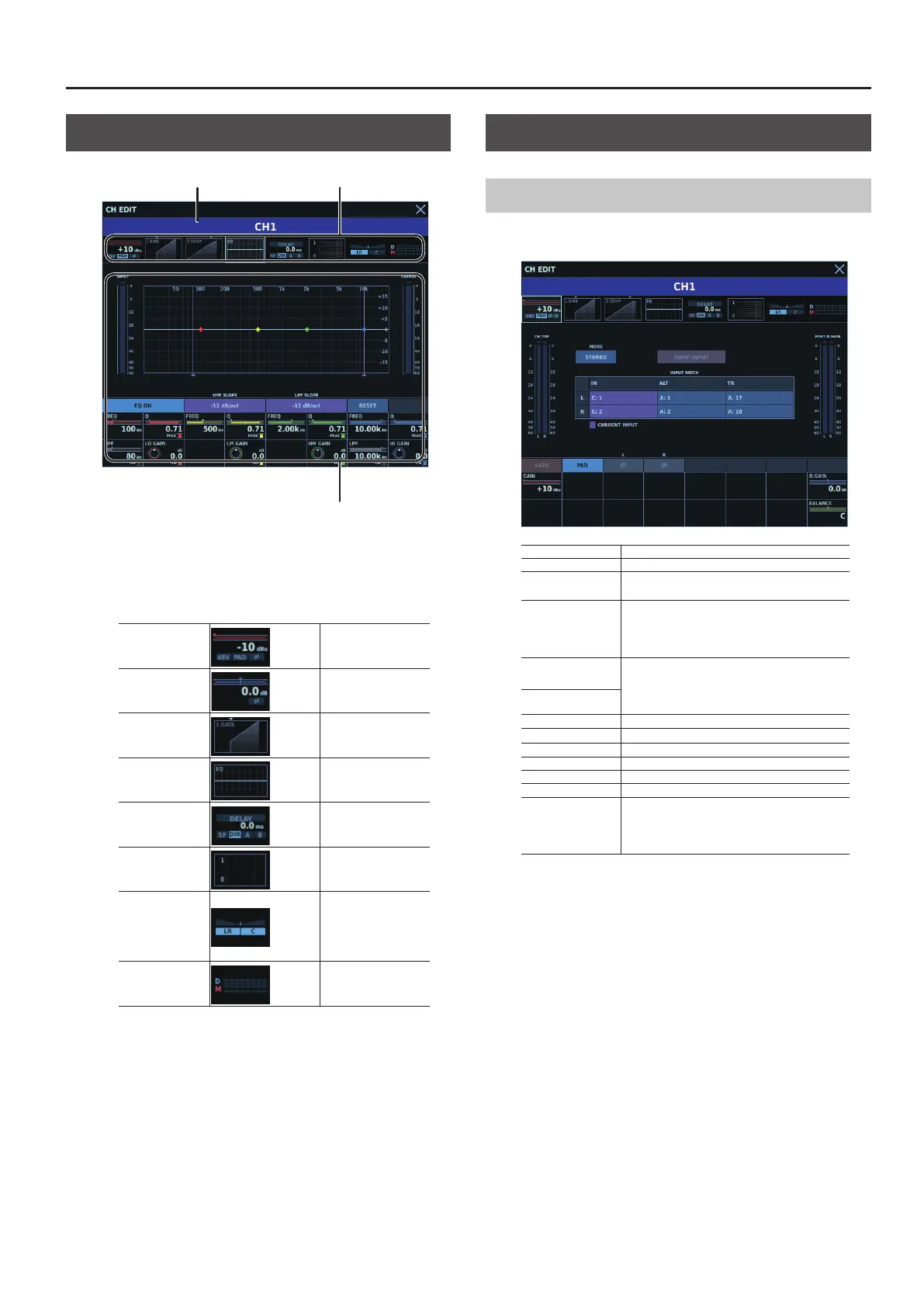

Layout of the CH EDIT Window
Display area
Channel name/channel color
Tab
5 Channel name/channel color
To change the channel name or channel color, double-tap or
long-tap this.
5 Tabs
These change the functioning of the CH EDIT window.
INPUT tab
p. 103
* Displayed for input
channels.
OUTPUT tab
p. 114
* Displayed for output
buses.
DYNAMICS tab
p. 104
EQ tab
p. 106
MISC tab
p. 107
p. 114
SENDS tab
p. 108
* Displayed for input
channels.
PAN/ROUTING tab
p. 110
* Displayed for
input channels,
SUBGROUP, and
AUX.
DCA/MUTE
GROUP tab
p. 113
5 Display area
This displays the functions switched using the tabs.
CH EDIT Window (Input Channel)
INPUT Tab
In the INPUT tab, you make input patchbay settings, preamp
settings, and other such settings.
CH TOP meter Displays the signal level at CH TOP.
MODE Selects monaural/stereo.
SWAP INPUT
Uses alternate input connectors.
0“Using Alternate Input Connectors” (p. 104)
IN (L/R)
Input connector
Tap and specify an input connector.
Currently specied input connectors among IN,
ALT, and TR are displayed in purple.
ALT (L/R)
Alternate input connector
Tap and specify an input connector.
Currently specied input connectors among IN,
ALT, and TR are displayed in purple.
TR (L/R)
POST D.GAIN meter Displays the signal level at POST D.GAIN.
+48V Preamp +48 V phantom power
PAD Preamp PAD
Φ (L/R) Polarity
GAIN Preamp gain
D.GAIN Digital gain
BALANCE
Adjusts L/R balance before lters, EQ, or
Dynamics.
* This is displayed when the input channel is
stereo.
