Part Names and Functions
32

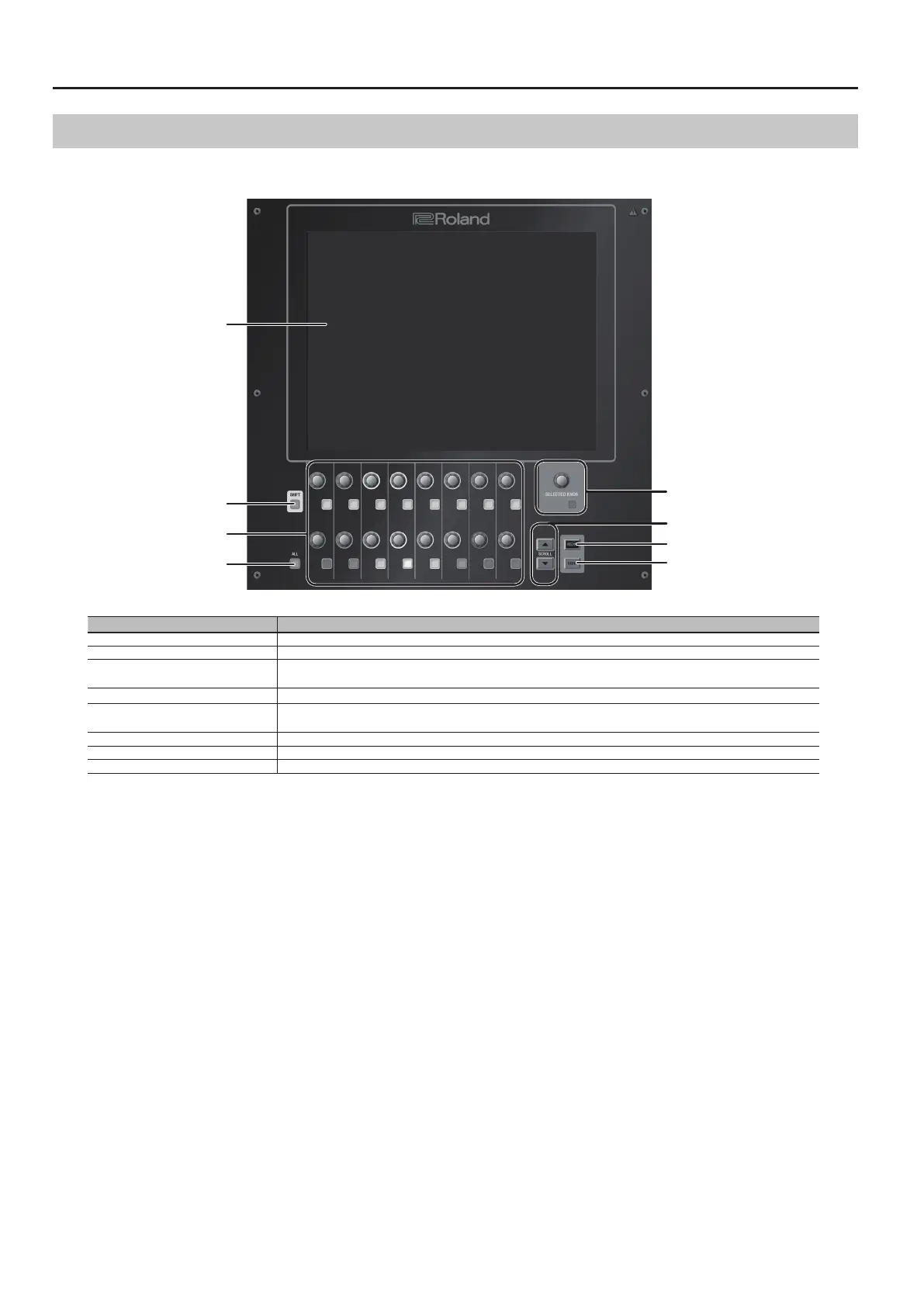

Display Section
This section lets you display and work with mixer parameters, system settings, and other values.
For details, refer to the "Operation of the touch display" section in the Reference Manual (PDF).
Touch display
Selected knob / button
[SCROLL H]/
[SCROLL I] button
[MENU] button
[VIEW] button
[SHIFT] button
Knob section
[ALL] button
Name Description
Touch display This displays mixer parameters, settings, and other values. You touch this to manipulate the parameters.
[SHIFT] button This changes the functioning of buttons while depressed.
Knob section
This manipulates the parameter area displayed at the bottom of the touch display.
The color of the knob or button changes according to the parameter.
[ALL] button When this is pressed, the action of the knob or button is applied to the eight channels shown on the touch display.
Selected knob / button
This manipulates the selected parameter on the touch display.
The color of the knob or button changes according to the selected parameter.
[SCROLL H]/[SCROLL I] button
This switches the AUX value selected at the knob-assign area of the HOME screen (p. 50).
[MENU] button This makes the MENU window appear on the touch display.
[VIEW] button This switches the appearance of the channel strip on the HOME screen (p. 50).
* Pressing or scraping the surface of the touch display using a pointed object can damage the touch display.
* If the touch display surface becomes dirty, clean by wiping gently using a soft cloth moistened with neutral detergent.
