Overview of Operations
48
Isolated Banks
A fader bank whose [ISOLATE] button has been turned on is called an “isolated bank.” Using isolated banks makes it possible to congure a wide
variety of fader layouts, such as arranging a CHANNEL layer and DCA/BUS layer side by side at the same time.
[ISOLATE] Term Description
O (dark) Normal bank
The bank operates in an interlinked fashion with other normal banks. When layer-switching or scrolling is performed in this
normal bank, the earlier or later channel in other normal banks is also accessed.
On (lighted) Isolated bank
This bank is isolated from other fader banks. In an isolated bank, layer-switching and scrolling can be performed
independently of other fader banks.

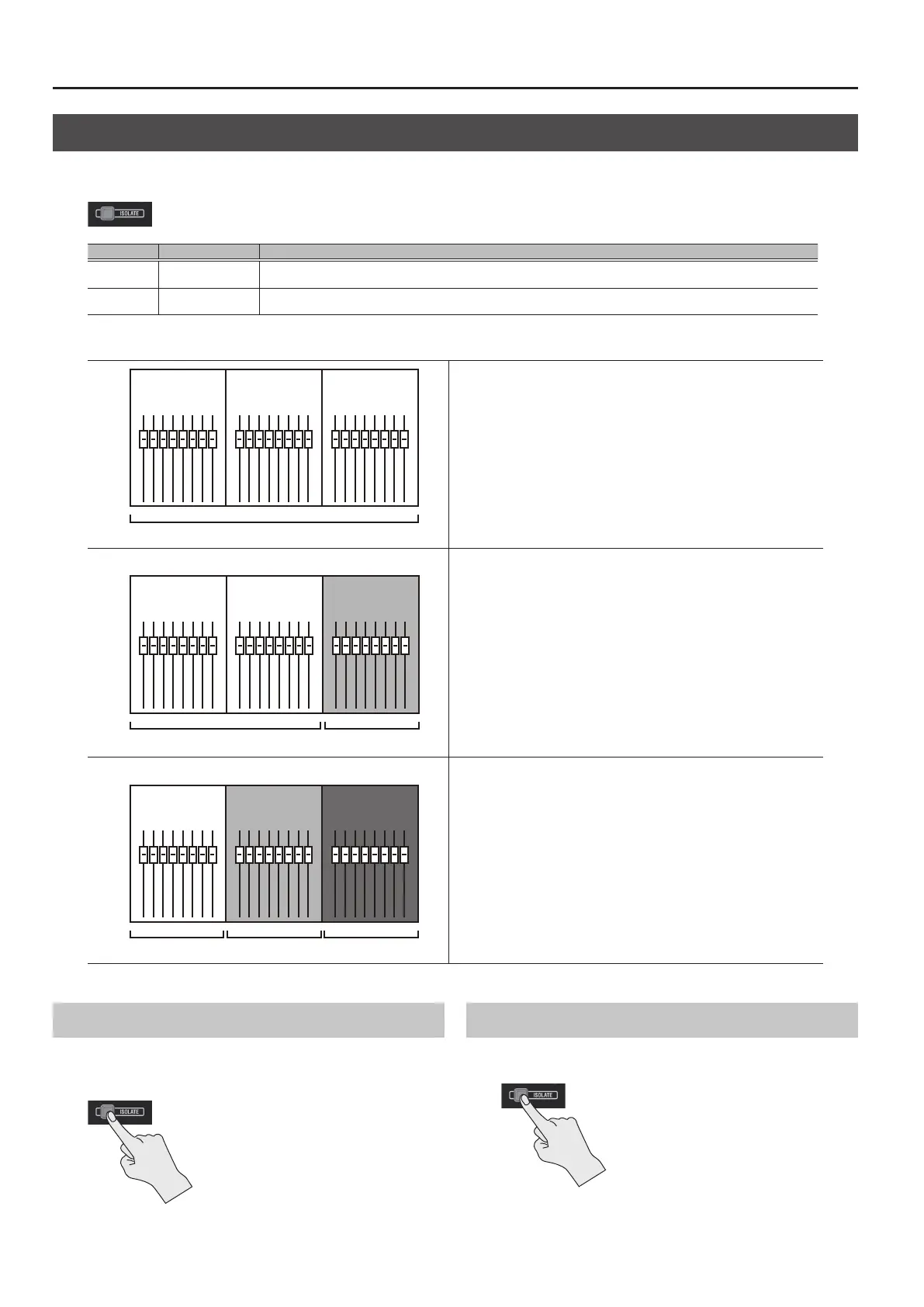

Usage Examples
24 INPUTS
All banks are set to be normal banks. This allows access to, for example, 24 input-
channel faders.
16 INPUTS 8 OUTPUTS
ISOLATED
One bank is set as an isolated bank. This allows access to, for example, 16 input-
channel faders and 8 output-bus faders.
8 INPUTS8 INPUTS 8 DCA
ISOLATEDISOLATED
Two banks are set as isolated banks. This allows access to, for example, 8 input-
channel faders, 8 DCA faders, and 8 other input-channel faders.
(The M-5000 is depicted.)
Isolating a Fader Bank
1. At the desired fader bank, press the [ISOLATE] button to
turn it on (lighted).
The target fader bank is isolated.
Unisolating a Fader Bank
1. Press the [ISOLATE] button to turn it o (dark).
If one or more other normal banks exist, each switches to the same
layer, and the same earlier or later channel is accessed.
