Using a MATRIX
MATRIX processes audio sent from input channels and output
buses, and outputs it to OUTPUT PATCHBAY.
In the MATRIX INPUT window, you select input channels or output
buses to send to MATRIX and adjust the send levels.
You specify the MATRIX count and the number of input channels
or output buses to input to MATRIX in the MIXER CONFIGURATION
window.
0“Changing the Number of Input Channels/Output Buses” (p. 81)

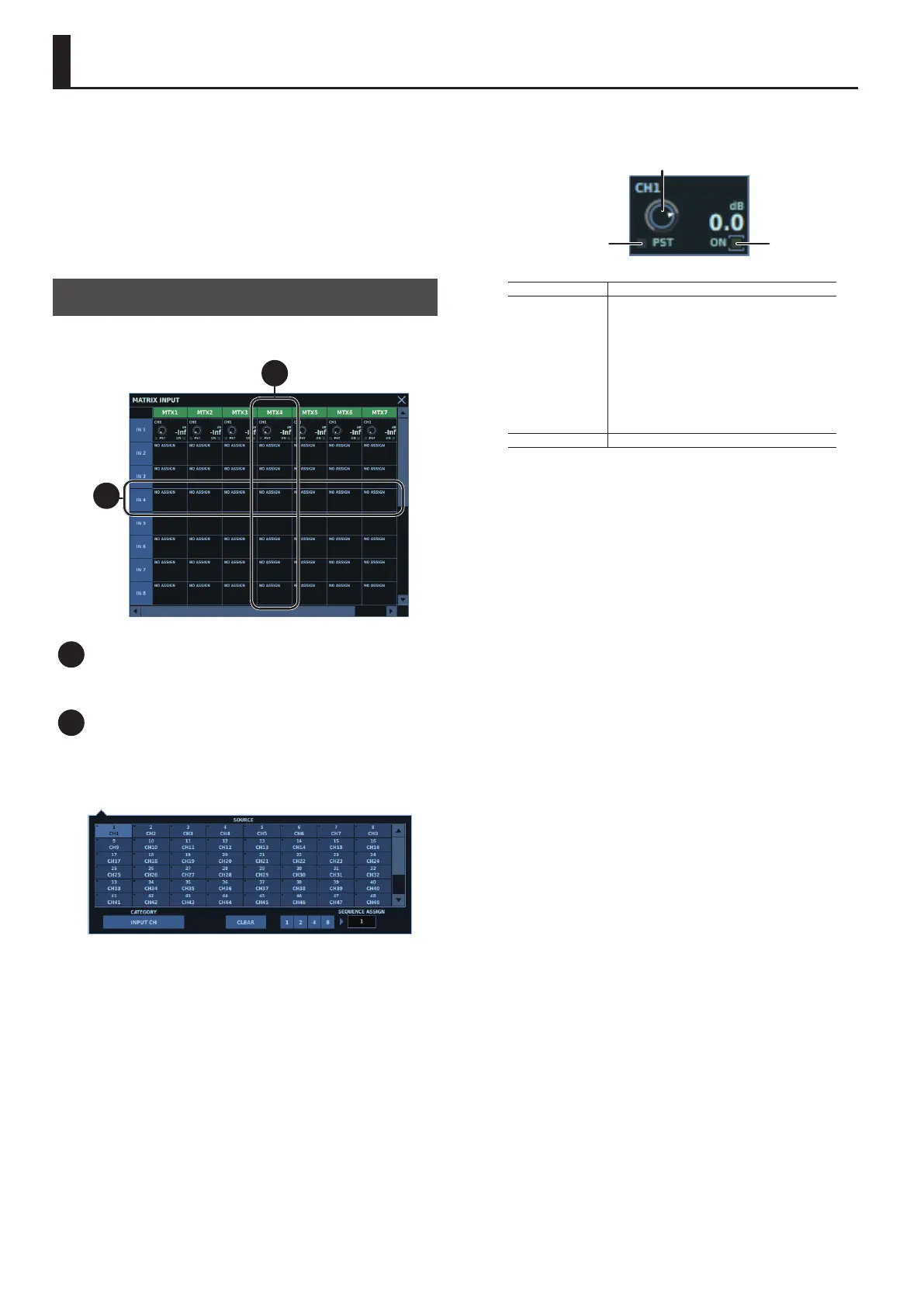

MATRIX INPUT Window
To display the MATRIX INPUT window, go to the MENU window and
tap <MATRIX INPUT>.
1
2
1
MATRIX column
This adjusts the send level from the input channels and output
buses to the MATRIX at the head of the column.
2 Input channel/output bus row
This adjusts the send level to each respective MATRIX from the
input channels or output buses at the head of the row.
Tapping <IN 1> through <IN (n)> (at the head of each row) displays
a popover for selecting the input channel or output bus.
Tapping an individual element lets you manipulate the following
parameters using the selected knob/button.
Send point
Send level
ON
Send level Send level to MATRIX
Send point
Selects the send point to the MATRIX from the
input channel/output bus from among the
following.
5 PRE-P
Pre-processing
5 PRE
Pre-fader
5 POST
Post-fader
ON Turns sending to MATRIX on/o.
