M-48 Control

210

Copying and Pasting Settings at the M-48

SETUP Window

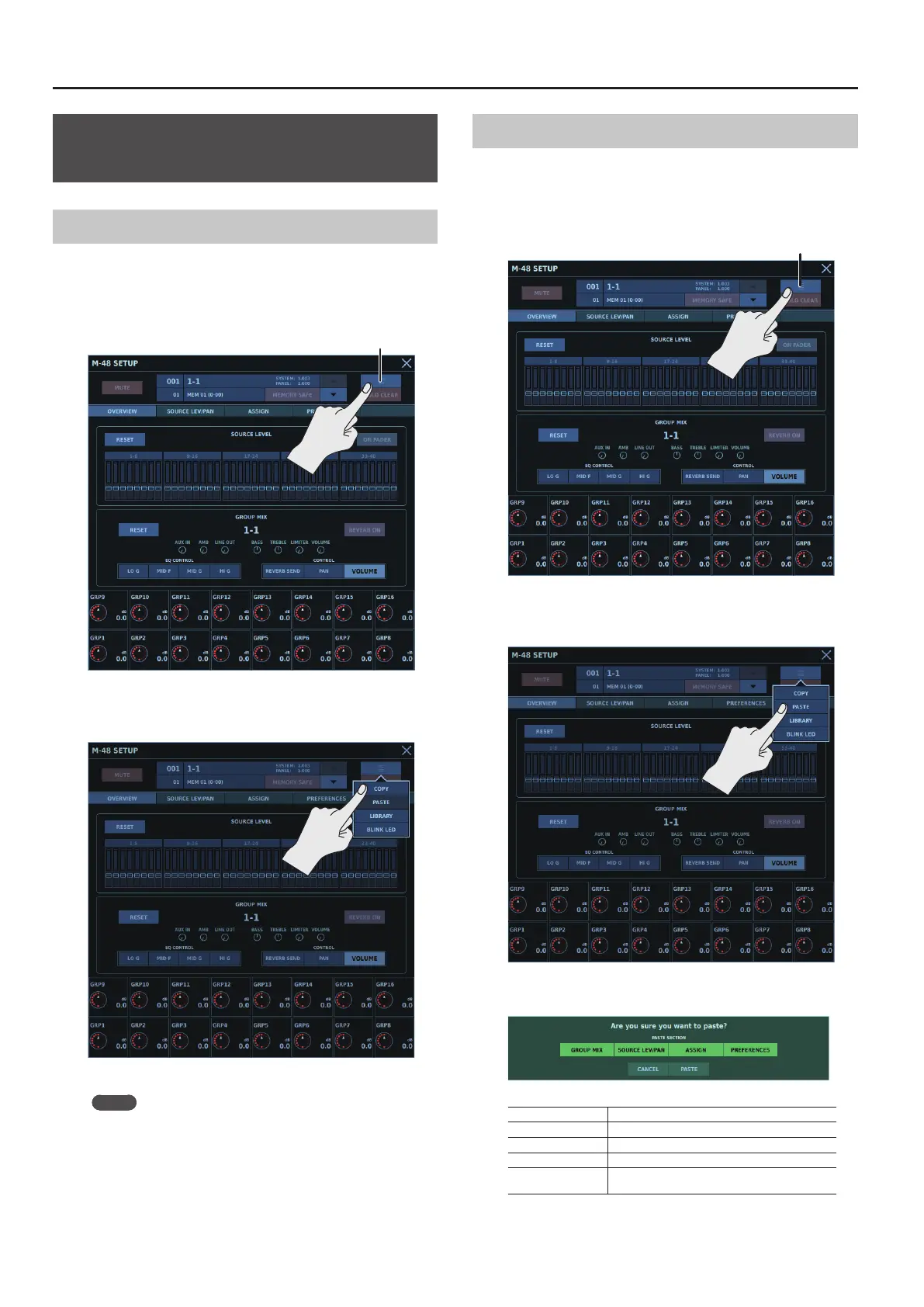

Copying M-48 Settings

1. Display the M-48 SETUP window for the M-48 you want to

copy from.

2. Tap <MORE>.

A popover appears.

3. Tap <COPY>.

The M-48’s settings are saved on the clipboard.

Memo

You can copy M-48 settings at the M-48 MANAGER window as well.

0“Copying M-48 Settings” (p. 205)

Pasting M-48 Settings

1. Display the M-48 SETUP window for the M-48 you want to

paste to.

2. Tap <MORE>.

A popover appears.

3. Tap <PASTE>.

4. Select the section to paste.

GROUP MIX This pastes the group mix.

SOURCE LEV/PAN This pastes the source level/pan settings.

ASSIGN This pastes assignment settings to a group.

PREFERENCES This pastes preferences.

CANCEL

This cancels the paste operation and exits the

popup.
