Overview of Operations
57

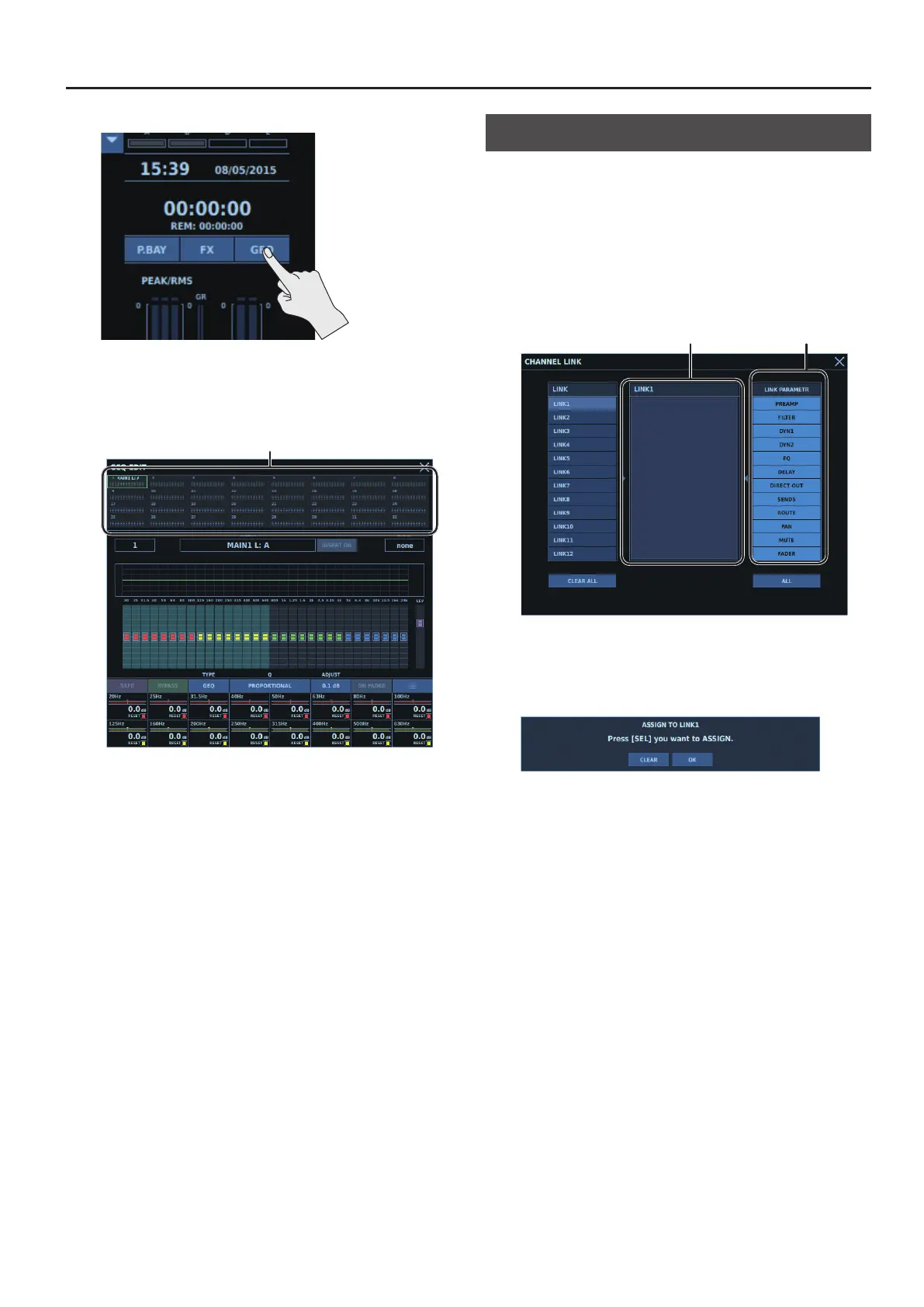

6. On the HOME screen, tap <GEQ>.
The GEQ window appears.
7. Tap a tab from <GEQ 1> to <GEQ 32>, then use the touch
display and knob section to make detailed adjustments.
<GEQ 1> - <GEQ 32>
Linking Channels
You can link multiple input channels or output buses into up to 12
groups.
The parameters of linked input channels or output buses are set to
the same values. You can select the parameters to link.
1. Press the [MENU] button.
2. On the MENU window, tap <SETUP>, then tap <CHANNEL
LINK>.
The CHANNEL LINK window appears.
LINK PARAMETERLINK LIST
3. Tap a link number from <LINK 1> to <LINK 12>.
4. Tap <LINK LIST>.
A popup for setting the link is displayed.
5. Press the [SEL] button for the input channel or output bus
you want to assign to the channel link.
The input channel or output bus is assigned to the channel link.
6. Tap <OK>.
7. Select <LINK PARAMETER> to link.
To Next Page
