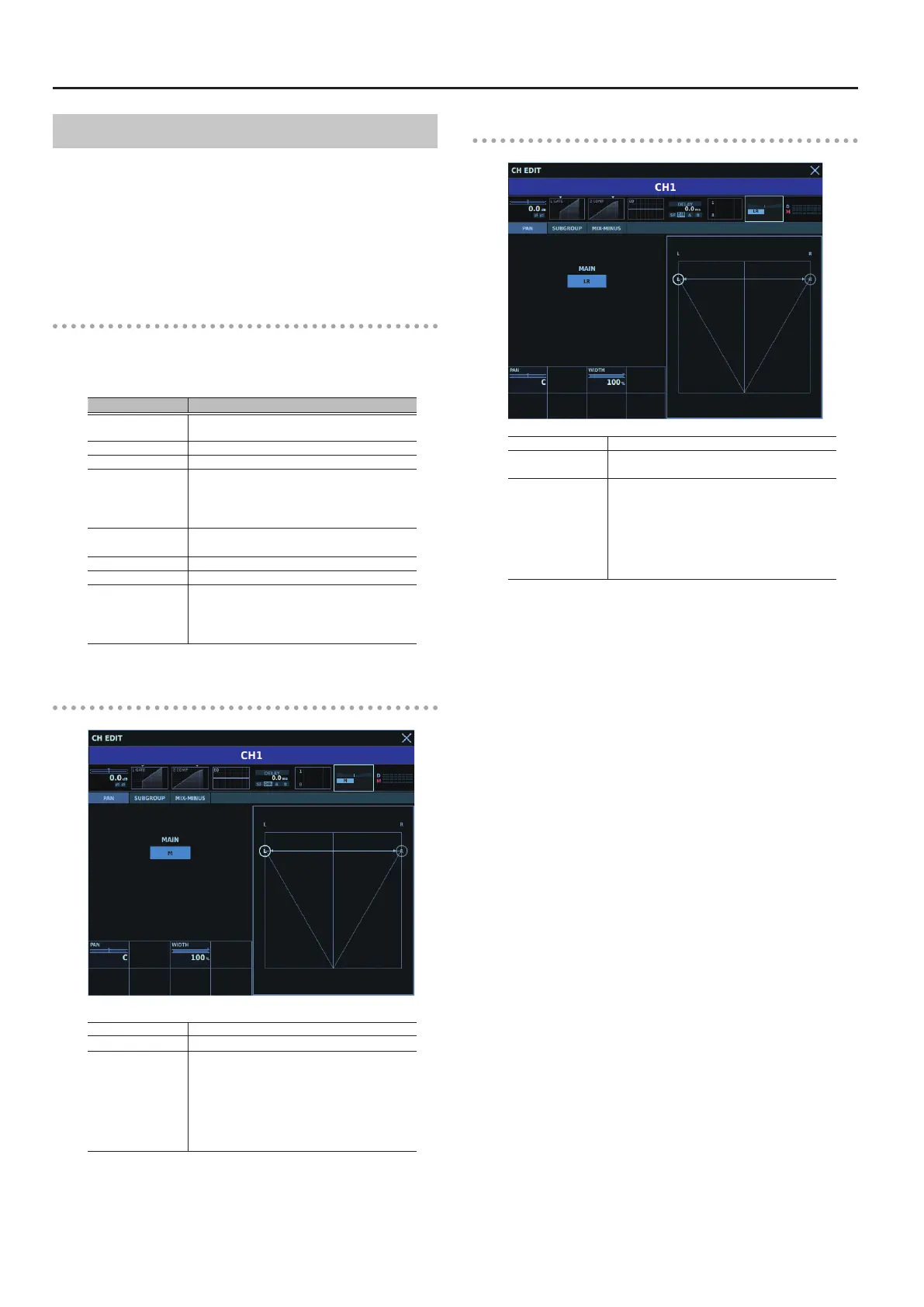

Roland M-5000 Reference Manual

CH EDIT Window
110
PAN/ROUTING Tab
The further tabs are displayed on the PAN/ROUTING tab.
5 PAN tab
This sets panning when sending to MAIN.
5 SUBGROUP tab
This sets assignments to SUBGROUPs.
5 MIX-MINUS tab
This is displayed using the input channel, AUX, and SUBGROUP.
PAN Tab Operations
The operation procedures in the PAN tab dier according to the
setting for MAIN that has been made in the MIXER CONFIGURATION
window.
MAIN setting Operation
NONE
Parameters are not displayed when no MAIN
exists.
MONO
0“PAN Tab (MONO)” (p. 110)
LR
0“PAN Tab (LR)” (p. 110)
LR+M
MAIN 1
0“PAN Tab (LR)” (p. 110)
MAIN 2
0“PAN Tab (MONO)” (p. 110)
LR+LR
MAIN 1/2
0“PAN Tab (LR)” (p. 110)
LCR
0“PAN Tab (LCR/CROSS-MATRIX LCR)” (p. 111)
CROSS-MATRIX LCR
0“PAN Tab (LCR/CROSS-MATRIX LCR)” (p. 111)
5.1+LR
MAIN 1
0“PAN Tab (5.1)” (p. 112)
MAIN 2
0“PAN Tab (LR)” (p. 110)
PAN Tab (MONO)
MAIN M Sends the signal to MAIN M (monaural).
PAN Sends pan to MAIN M (monaural)
WIDTH
Sets the width of the stereo image.
You can maintain the stereo-image width set here
while working with PAN.
-100% - 100%
* This is displayed when the input channel/
output bus being manipulated is set to
STEREO.
PAN Tab (LR)
MAIN LR Sends the signal to MAIN LR.
PAN Sends pan to MAIN LR
WIDTH
Sets the width of the stereo image.
You can maintain the stereo-image width set here
while working with PAN.
-100% - 100%
* This is displayed when the input channel/
output bus being manipulated is set to
STEREO.
