Roland M-5000 Reference Manual

Talkback/Oscillator
191

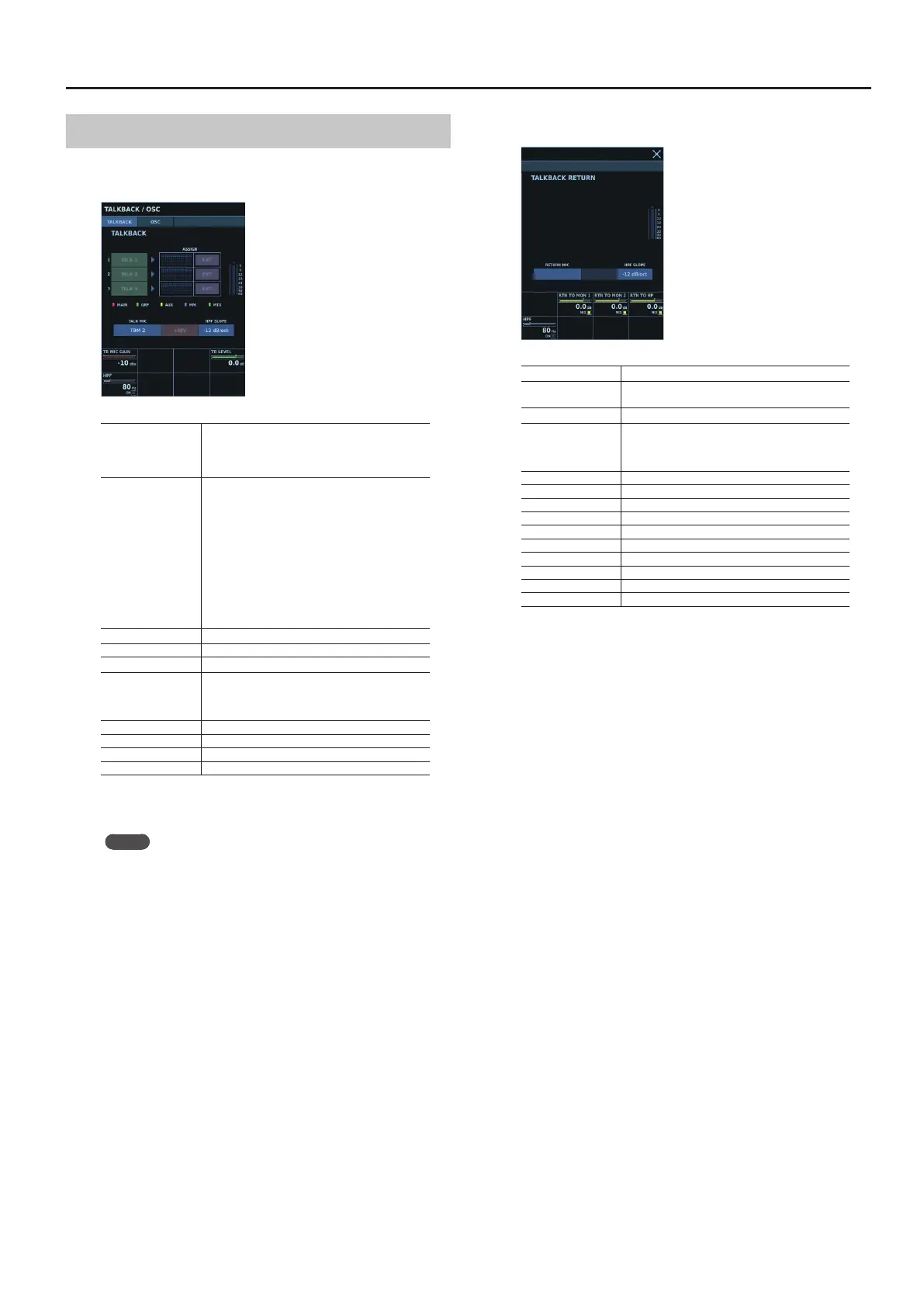

TALKBACK/OSC Window TALKBACK Tab
TALKBACK
TALK 1-3
These send talkback to the output destinations
assigned to TALK 1 through TALK 3.
Operation is interlinked with the [TALK 1]-[TALK
3] buttons on the top panel.
ASSIGN
Displays the assignments to output buses/output
patchbay.
The left side shows the status of assignments
to output buses. Tapping it displays the
DESTINATION popover for making assignments
to output buses.
When <EXT> on the right side is turned on,
output to the output patchbay is permitted. You
make the assignment to the output patchbay in
the PATCHBAY window.
0“PATCHBAY Window” (p. 89)
INPUT METER Input-connector input level
TALK MIC Selects the input connector to use for talkback.
+48V Turns input-connector phantom power on/o.
HPF SLOPE
Input-connector HPF slope characteristics
5 -6dB/oct
5 -12dB/oct
TB MIC GAIN Input-connector preamp gain
TB LEVEL Talkback level
HPF HPF center frequency
HPF ON Turns the HPF on/o.
* This is only displayed when talkback has been turned on in the
MIXER CONFIGURATION window.
Memo
The way in which talkback is turned on and o varies depending
on how you press <TALK 1> through <TALK 3>.
When you release the button quickly after pressing it, it operates
as a latch to turn talkback on or o with each press.
When held depressed for a longer interval before release, it
operates as a momentary switch that turns on talkback only
while held down.
TALKBACK RETURN
INPUT METER Input-connector input level
RETURN MIC
Selects the input connector to use for talkback
return.
+48V Turns input-connector phantom power on/o.
HPF SLOPE
HPF slope characteristics
5 -6dB/oct
5 -12dB/oct
RTN MIC GAIN Input-connector preamp gain
RTN MIC PAD Turns input-connector PAD on/o.
RTN TO MON 1 Send level to MONITOR 1
RTN TO MON 1 MIX Turns sending to MONITOR 1 on/o.
RTN TO MON 2 Send level to MONITOR 2
RTN TO MON 2 MIX Turns sending to MONITOR 2 on/o.
RTN TO HP Send level to HEADPHONES
RTN TO HP MIX Turns sending to HEADPHONES on/o.
HPF HPF center frequency
HPF ON Turns the HPF on/o.
* This is not displayed when no talkback return has been created
in the MIXER CONFIGURATION window.
