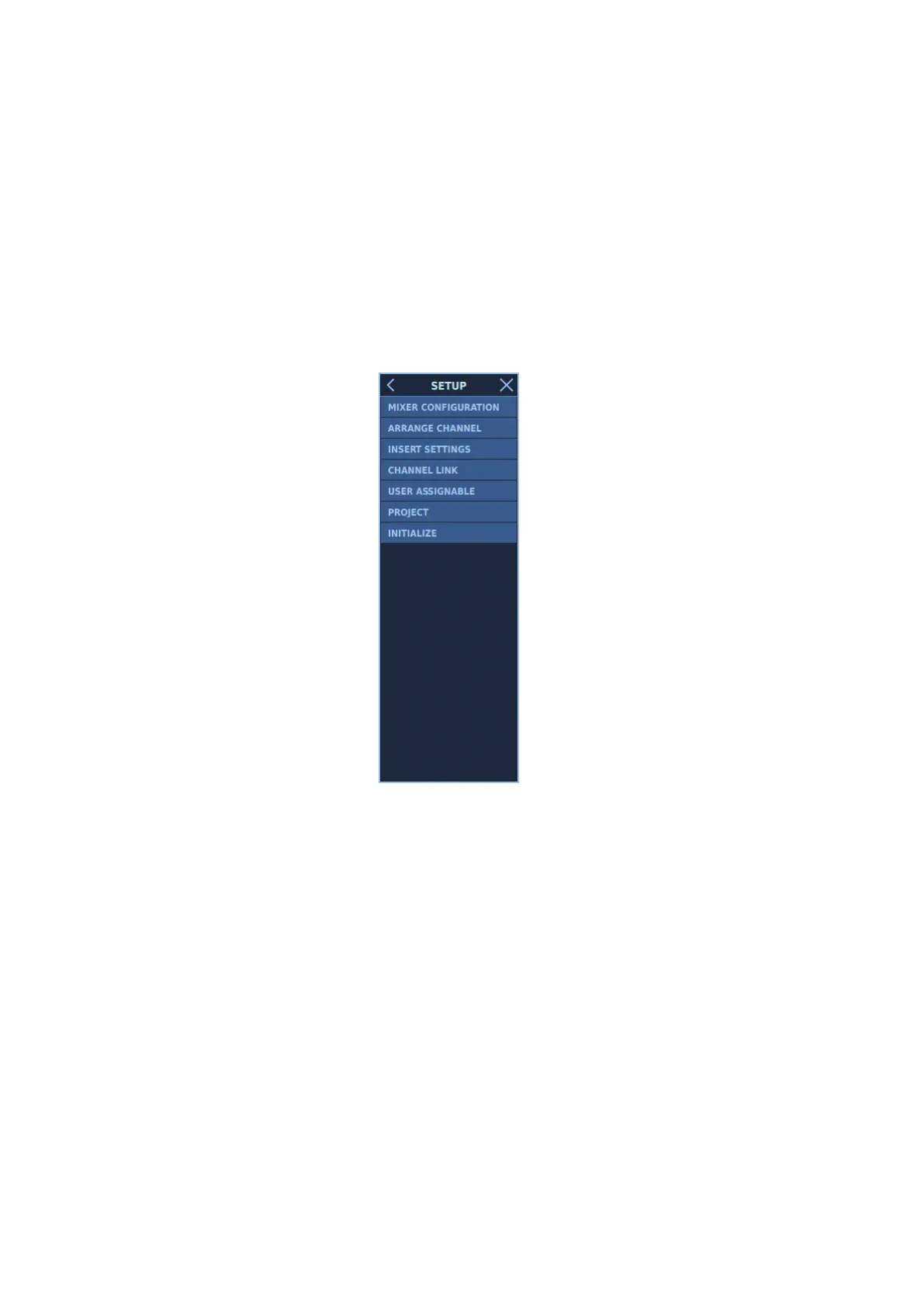

SETUP Window

In the SETUP window, you can display screens for making conguration settings for the M-5000, such as changing the mixer conguration, organizing

and managing projects, and initializing the unit.

In this chapter, the explanations are organized into the following sections.

5 “SETUP Window” (p. 225)

5 “Inserting External Eects Devices” (p. 226)

5 “Channel Link” (p. 228)

5 “Projects” (p. 230)

5 “Initializing Mixer Parameter” (p. 234)
