228
Channel Link
About Channel Link
Channel link is a function that makes specic input channels or
output buses have the same parameters.
The M-5000 has 12 channel links.
You can assign any number of input channels or output buses to a
single channel link. The linked parameters in the channel link are
also selectable.
* Assigning individual input channels or output buses to multiple
channel links is not possible.
You make the settings for channel link in the CHANNEL LINK
window.

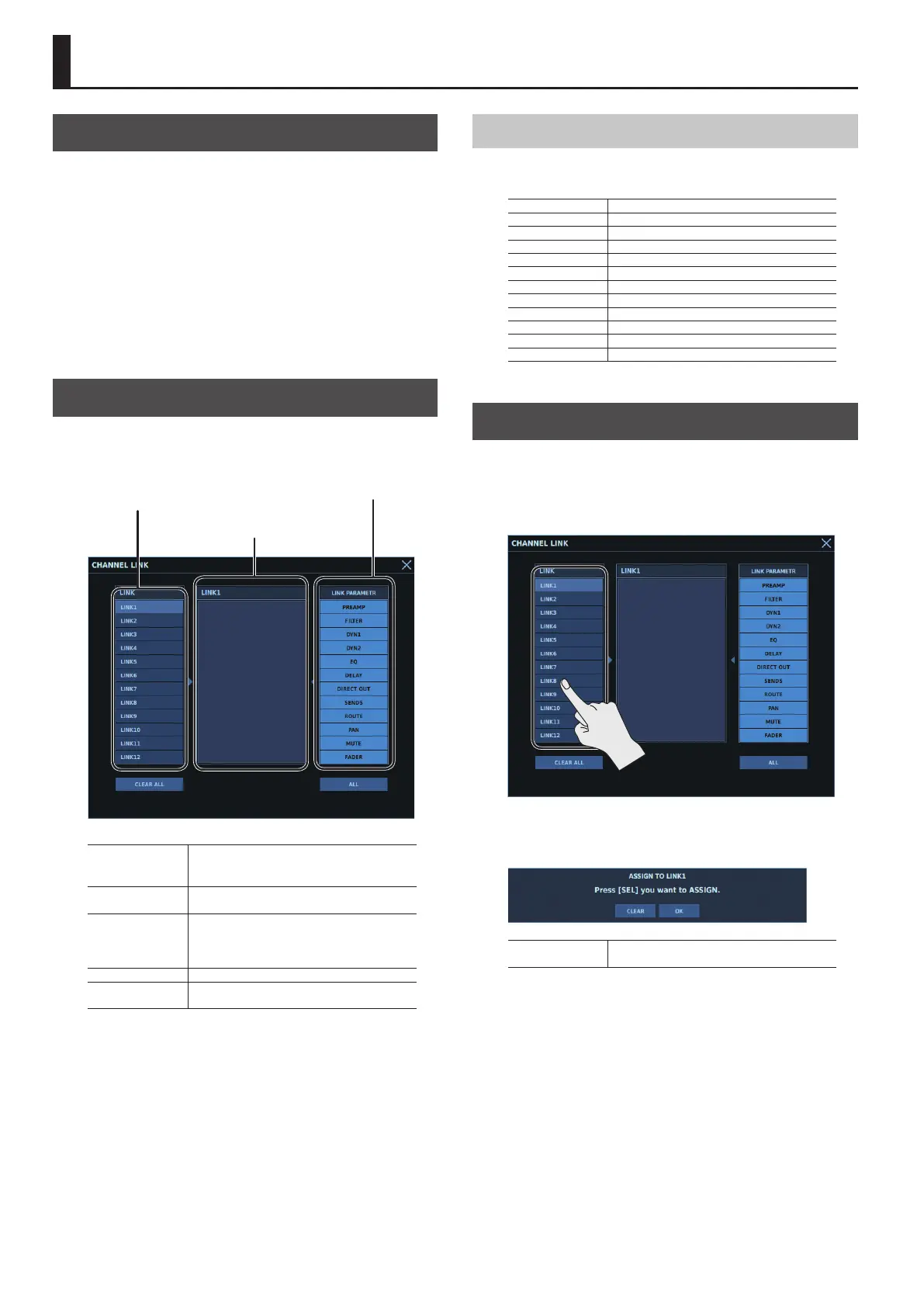

CHANNEL LINK Window
To display the CHANNEL LINK window, go to the SETUP window
and tap <CHANNEL LINK>.
0“SETUP Window” (p. 225)
Channel link number
Input channel/output bus list
Parameter list
Channel link name
Selects the channel link you want to specify
(LINK 1-12).
Double-tap or long tap, then set the name.
CLEAR ALL
Clears all input channels/output buses for which
a channel links (LINK 1-LINK 12) are set.
Input channel/
output bus list
Displays the set input channels/output buses in
a channel link.
You tap the input channel/output bus list and
add input channels/output buses.
Parameter list Selects the parameters to link in a channel link.
ALL
Selects all parameters or nothing in the
parameter list.
Linkable Parameters
You can link the following parameters for input channels or output
buses specied for a single channel link.
PREAMP Preamp settings
FILTER HPF, LPF
DYN 1 Dynamics 1(Excludes the key-in)
DYN 2 Dynamics 2(Excludes the key-in)
EQ 4-band EQ
DELAY Delay
DIRECT OUT Direct out (on/o, send point, level)
SENDS Sends to AUX
ROUTE Sends on/o to MAIN/SUBGROUP/MIX MINUS
PAN Pan settings
MUTE Muting
FADER Sends to MAIN
Making the Settings for Channel Link
1. Display the CHANNEL LINK window.
2. Tap the channel link number from <LINK 1> to <LINK 12>
that you want to specify.
3. Tap the input channel/output bus list.
A popup for making the channel link settings appears.
CLEAR
Clears the input channels/output buses specied
for the channel link you selected in step 2.
To Next Page
