Sidebar

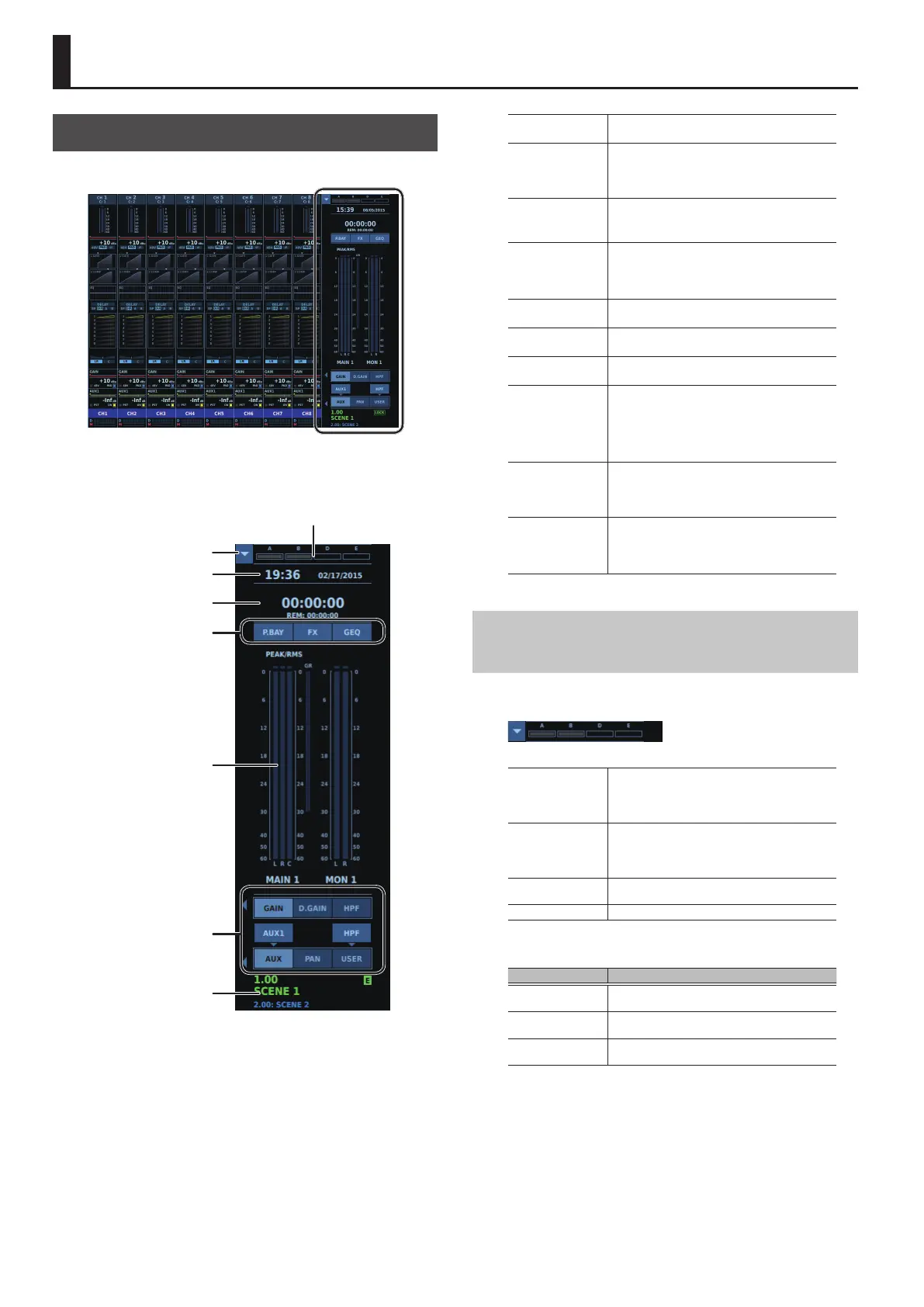

About the Sidebar
The right side of the HOME screen is called the "sidebar."
Important information you want to monitor at all times and buttons
for accessing important screens are displayed here.
REAC/SLOT
indicators
Date/time area
I
Recorder area
P.BAY
FX
GEQ
PEAK/RMS
meter
Knob-assign
area
Scene area
I
Displays the meter bridge
0“Overviewing Meters/Faders” (p. 134)
REAC/SLOT
indicators
Indicate the communication status of the REAC
ports and EXPANSION SLOTs.
0“Checking the REAC Port and EXPANSION
SLOT Communication Status” (p. 132)
Date/time area
Displays the date and time.
Tapping this displays the DATE & TIME window.
0“Date and Time” (p. 135)
Recorder area
Displays le information and playback/recording
time during playback/recording.
Tapping this displays the RECORDER window.
0“USB Memory Recorder” (p. 187)
P. B AY
Tapping this displays the PATCHBAY window.
0“Patchbays” (p. 89)
FX
Tapping this displays the FX window.
0“Eects” (p. 138)
GEQ
Tapping this displays the GEQ window.
0“GEQ” (p. 158)
PEAK/RMS meter
You can select meters displayed in the sidebar.
5 PEAK/RMS meter of MAIN 1/2
5 PEAK meter of MONITOR 1/2
0“Changing What the PEAK/RMS Meter
Displays” (p. 133)
Knob-assign area
Selects parameter to assign to the knob section
area of the HOME screen.
0“About the Screens for Working with Eects”
(p. 138)
SCENE
Displays the currently selected scene (green) and
the next scene (blue).
Tapping this displays the SCENE window.
0“Scene Memory” (p. 176)
Checking the REAC Port and EXPANSION SLOT
Communication Status
You can use the "REAC/SLOT indicators" on the sidebar to check the
conrmation status of the REAC ports and EXPANSION SLOTs.
A
Indicates the status of REAC A port.
When the REAC SPLIT/BACKUP port splits or
duplicates (backs up) the REAC A port, the status
of the REAC SPLIT/BACKUP port is also displayed.
B
Indicates the status of the REAC B port.
When the REAC SPLIT/BACKUP port splits or
duplicates (backs up) the REAC B port, the status
of the REAC SPLIT/BACKUP port is also displayed.
D
Indicates the status of EXPANSION SLOT D
(upper).
E Indicates the status of EXPANSION SLOT E (lower).
The respective indicators show the following states.
Indicator Status
Unlighted
No REAC device/optional expansion interface is
connected.
Flashing
Connection to a REAC device/optional expansion
interface is being established.
Lighted
A REAC device/optional expansion interface is
connected correctly.
* When restarting the unit with the expansion interface installed,
wait for about one second before you turn on the power.
