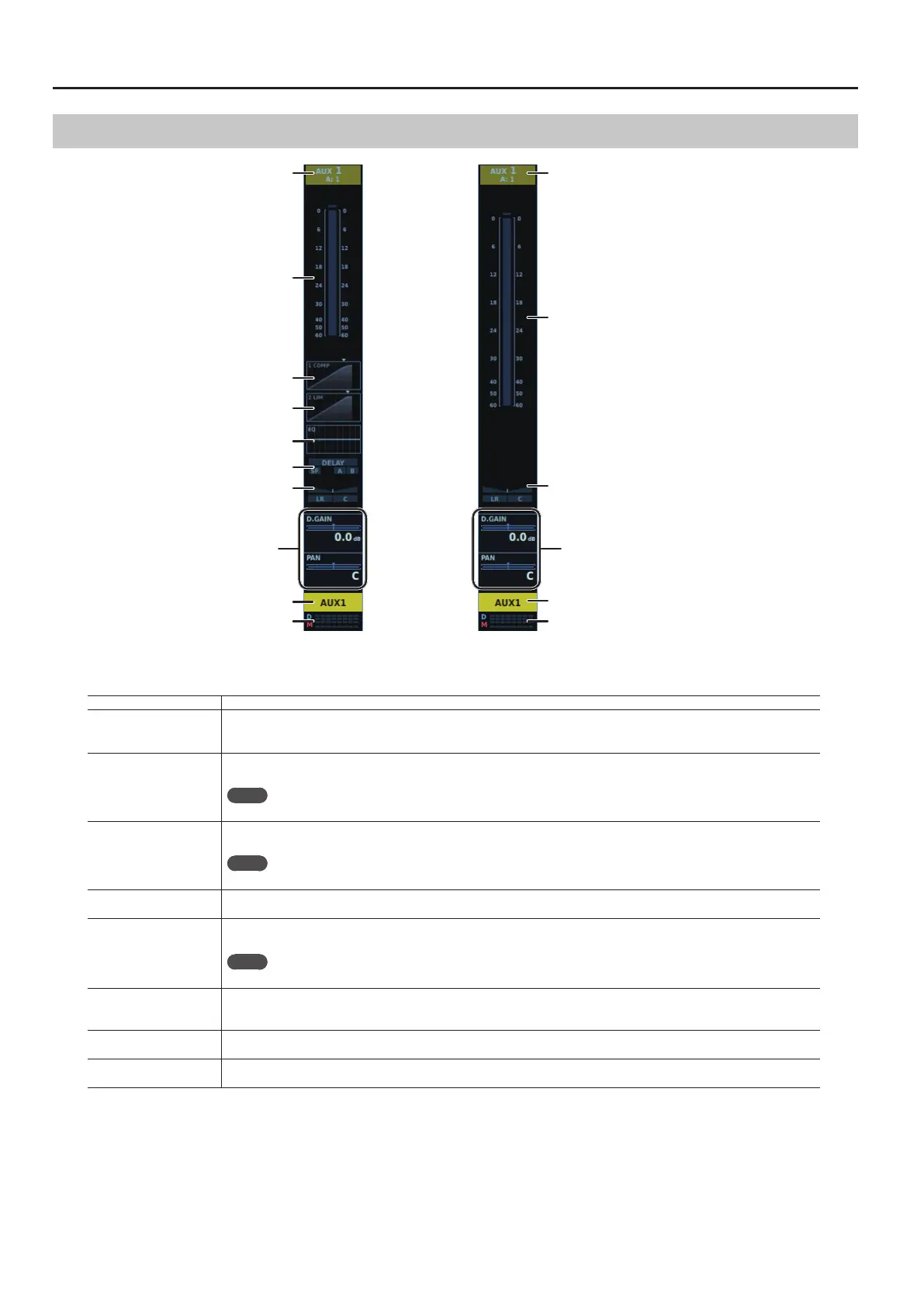

Channel Strip (Output Bus)
Process view Meter view
Output patchbay
EQ
DYNAMICS 1
DYNAMICS 2
MISC
PAN/ROUTING
NAME
DCA/MUTE GROUP
Meter
Output patchbay
Meter
PAN/ROUTING
NAME
DCA/MUTE GROUP
Knob section
area
Knob section area
Output patchbay Displays the channel number and output destination as dened in the patchbay.
Meter
Displays the signal level.
The level detection position is selected on the METER SETUP popover.
0“METER SETUP Popover” (p. 134)
DYNAMICS 1
DYNAMICS 2
Displays general characteristics for DYNAMICS.
Tapping displays the CH EDIT window DYNAMICS tab.
Memo
The order in which DYNAMICS 1/2 and EQ are displayed depends on the routing for DYNAMICS 1/2 and EQ.
EQ
Display general characteristics for EQ.
Tapping displays the CH EDIT window EQ tab.
Memo
The order in which DYNAMICS 1/2 and EQ are displayed depends on the routing for DYNAMICS 1/2 and EQ.
MISC
Displays the status of Channel Delay, Recall Safe or Insert A/B.
Tapping displays the CH EDIT window MISC tab.
PAN/ROUTING
Displays the status for Pan or Mix-Minus.
Tapping displays the CH EDIT window PAN/ROUTING tab.
Memo
Diplayed for SUBGROUP and AUX.
Knob section area
These are parameters assigned to the knob section on the top panel. Assigned parameters are set in the knob-assign area on the
sidebar.
0“Knob-assign Area” (p. 136)
NAME
Displays the channel name and channel color.
To change the channel name or channel color, double-tap or long-tap this.
DCA/MUTE GROUP
Displays the DCA group/Mute group status.
Tapping displays the CH EDIT window DCA/MUTE GROUP tab.
