261

Fader Calibration

If the fader positions are no longer aligned with the index markings

of the top panel, carry out fader calibration to adjust.

1. Press the [MENU] button.

2. On the MENU window, tap <SYSTEM>, then tap <FADER

CALIBRATION>.

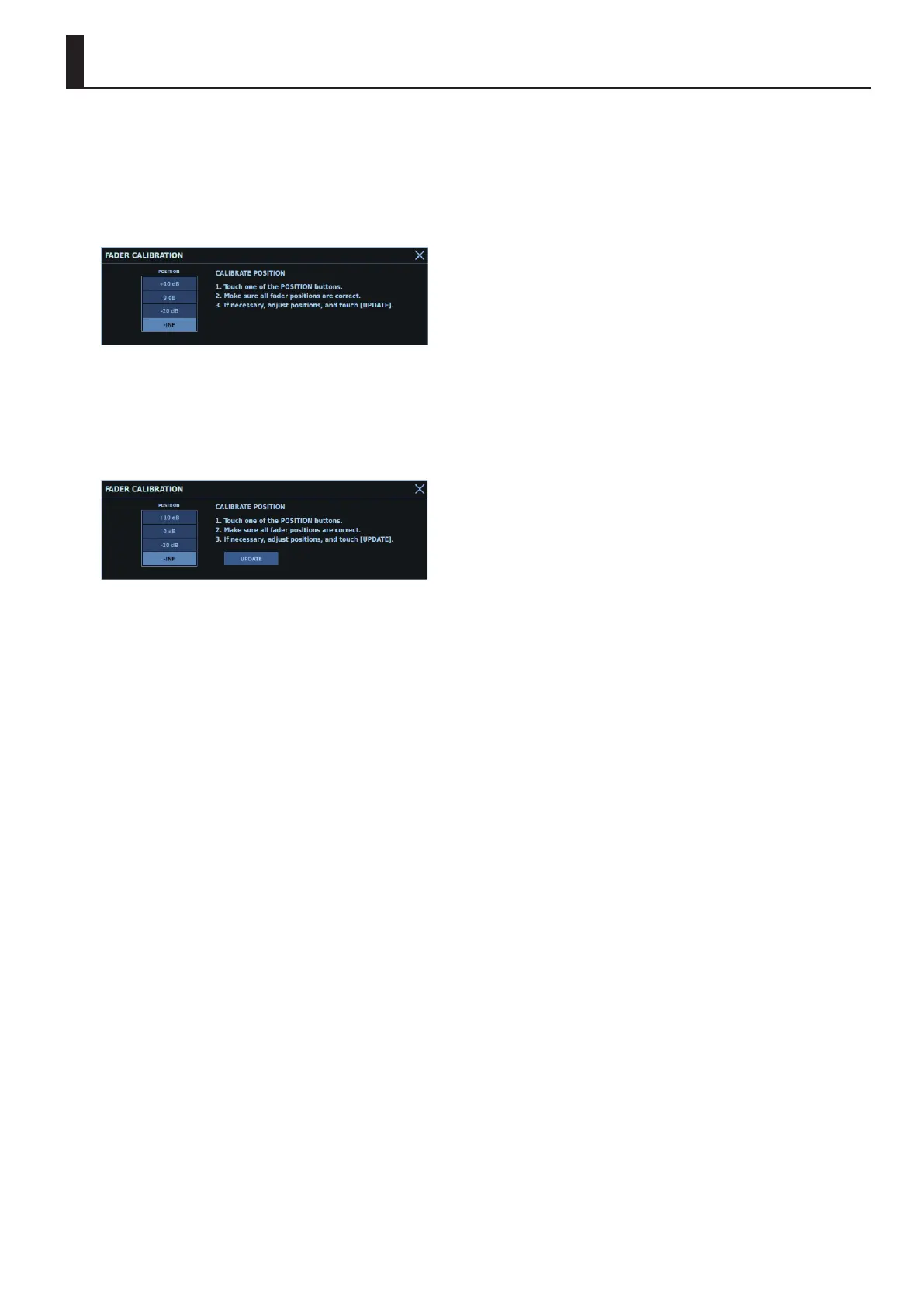

The FADER CALIBRATION window appears.

3. Tap an item from <-INF> to <+10dB>.

This moves to the location where all faders are supported.

4. Adjust the fader that is not aligned with the index

markings on the top panel.

The <UPDATE> appears.

5. Tap <UPDATE>.

The fader position is adjusted to the specied location.
