Part Names and Functions
44

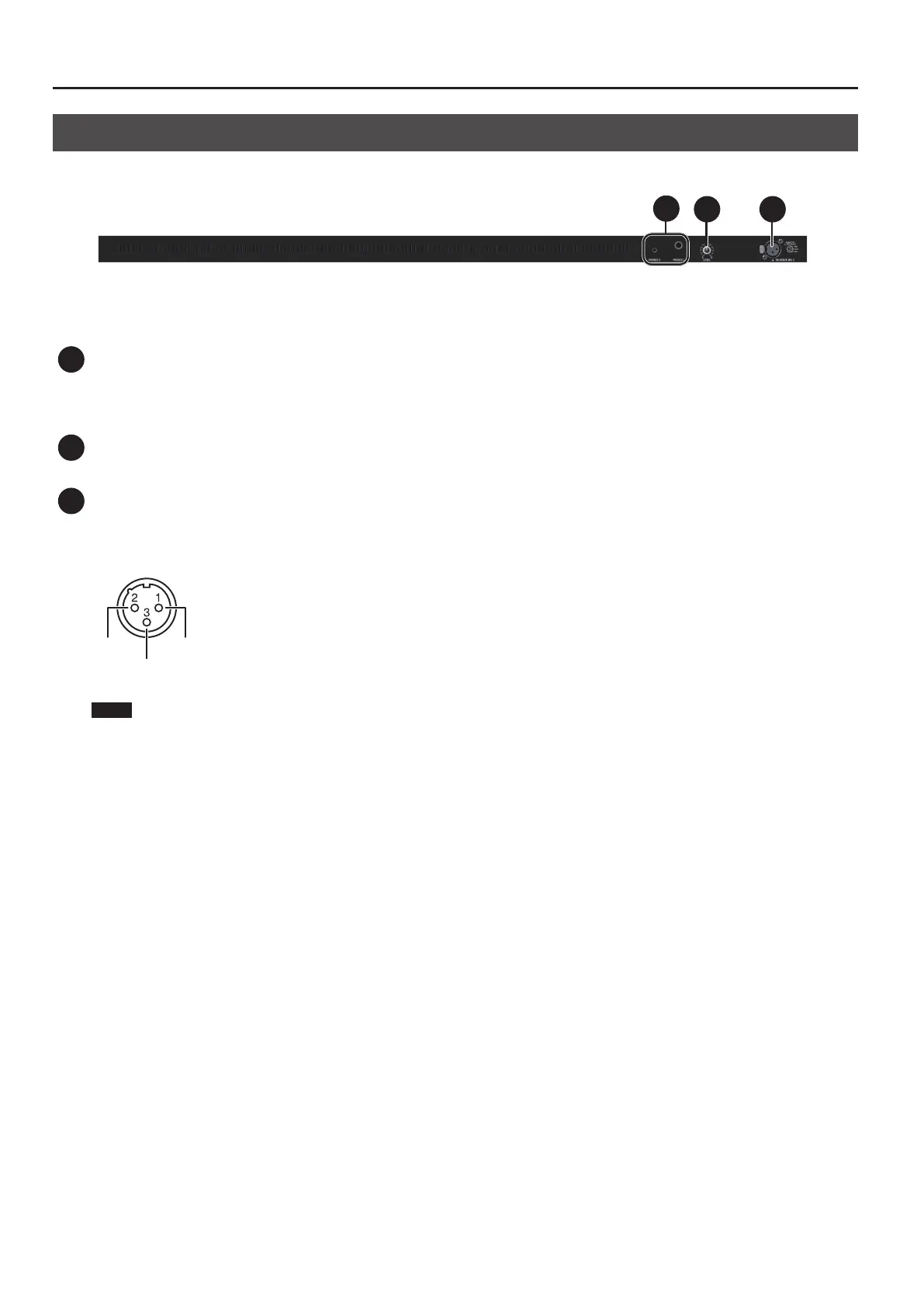

Front Panel
2 3 1
1
PHONES 1/2 Jacks
These are jacks for connecting headphones. You can use them to monitor MONITOR 1 or MONITOR 2 audio.
Two outputs are provided: miniature stereo phone type and stereo 1/4-inch phone type.
Ensure that the total impedance of both is less than 16 ohms.
2 PHONES LEVEL Knob
This adjusts the output level for headphones connected to the PHONES jacks.
3 TALKBACK MIC 2 Jack
This is a female balanced XLR-3-31 input connector for connecting an external microphone for talkback use.
* This instrument is equipped with balanced (XLR) type jacks. Wiring diagrams for these jacks are shown below. Make connections after rst
checking the wiring diagrams of other equipment you intend to connect.
GND
+PHANTOM [+48V/14mA]
COLD
HOT
NOTE
Always turn the phantom power o when connecting any device other than condenser microphones that require phantom power. You risk
causing damage if you mistakenly supply phantom power to dynamic microphones, audio playback devices, or other devices that don’t require
such power. Be sure to check the specications of any microphone you intend to use by referring to the manual that came with it.
(This instrument’s phantom power: DC+48 V, 14 mA Max)
