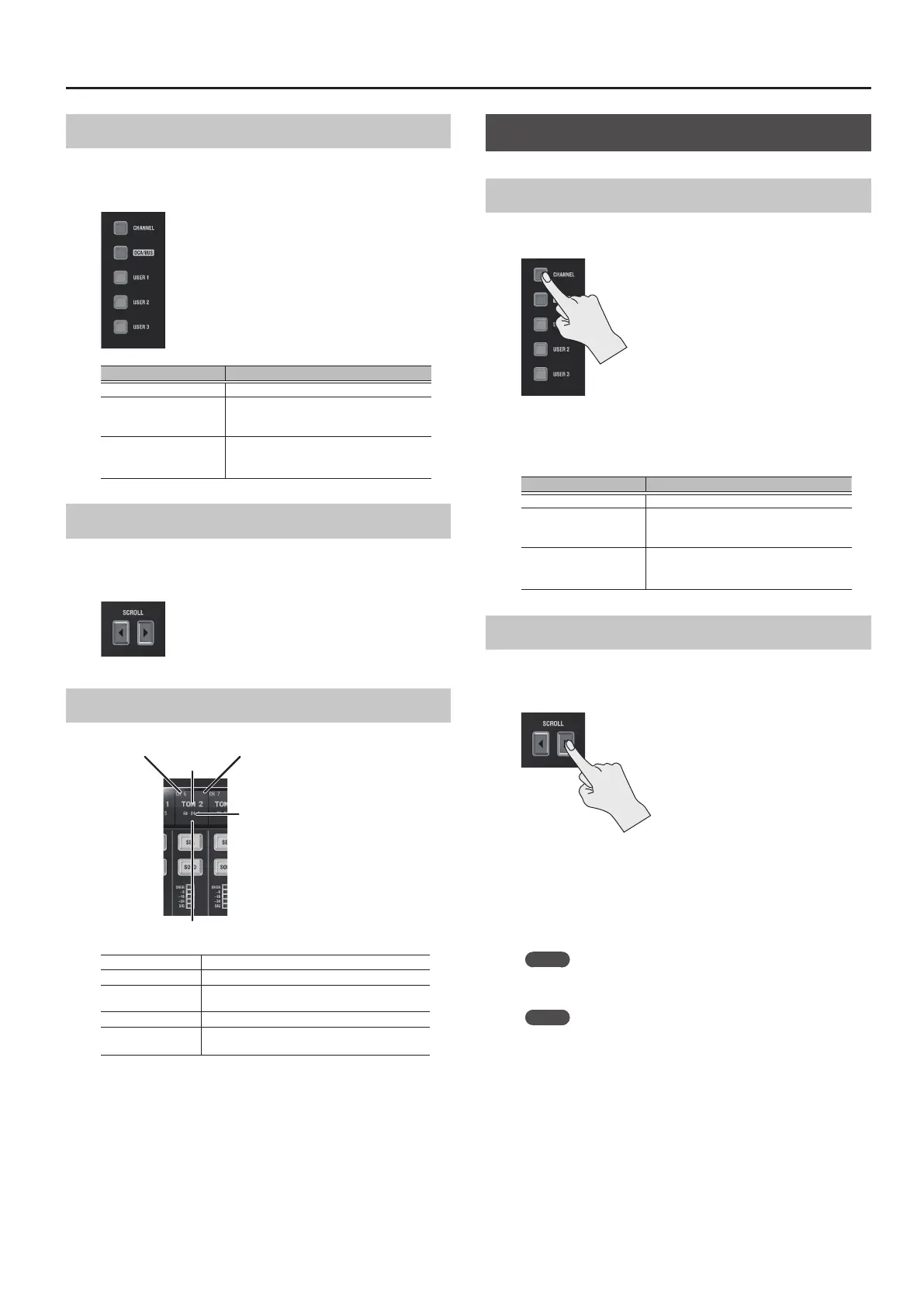

Fader Bank Section
119
Layers
Each fader bank has two basic layers (CHANNEL and DCA/BUS) and
three customizable layers (USER 1 through 3) that you can switch
between according to purpose.
Layer button Description
[CHANNEL] This accesses the input-channel layer.
[DCA/BUS]
This accesses the layer of the DCA group
master and the output buses (MAIN,
SUBGROUP, AUX, MIX-MINUS, and MATRIX).
[USER 1]–[USER 3]
These access user-assigned channels.
You can assign up to 64 at a time for each
layer.
Scrolling
Pressing the [SCROLL K] or [SCROLL J] button shifts the channels
accessed by the fader bank in the currently selected layer by eight
channels at a time.
Fader Bank Display
NUMBER
NAME
FADER VALUE
ICON
PATCHBAY
NUMBER Displays the input channel/output bus number.
NAME Displays the input channel/output bus name.
ICON
When the channel is stereo, LCR, or 5.1ch, an icon
is displayed.
PATCHBAY Displays the input/output patchbay.
FADER VALUE
Displays the value when the fader has been
operated or touched.
Basic Operations of Fader Bank Section
Changing Layers
1. Press a layer button to switch to the desired layer.
If you pressed the button at a “Normal bank” (p. 48), other normal
banks also change in an interlinked way.
If an isolated bank has been pressed, only that isolated bank is
switched.
Layer button Description
[CHANNEL] This accesses the input-channel layer.
[DCA/BUS]
This accesses the layer of the DCA group
master and the output buses (MAIN,
SUBGROUP, AUX, MIX-MINUS, and MATRIX).
[USER 1]–[USER 3]
These access user-assigned channels.
You can assign up to 64 at a time for each
layer.
Scrolling the Channels
1. Press the [SCROLL K] or [SCROLL J] button to scroll the
channels.
The channels assigned to the fader bank section in the selected
layer are switched in groups of eight.
An orange bar is displayed in the fader bank display to the right of
the fader bank you’re scrolling. For each respective layer, this shows
the approximate position of the channel loaded into the fader bank.
Memo
If you pressed the button at a “Normal bank” (p. 48), other
normal banks also change in an interlinked way.
Memo
Scrolling by one channel at a time when the [SHIFT] button is
on.
