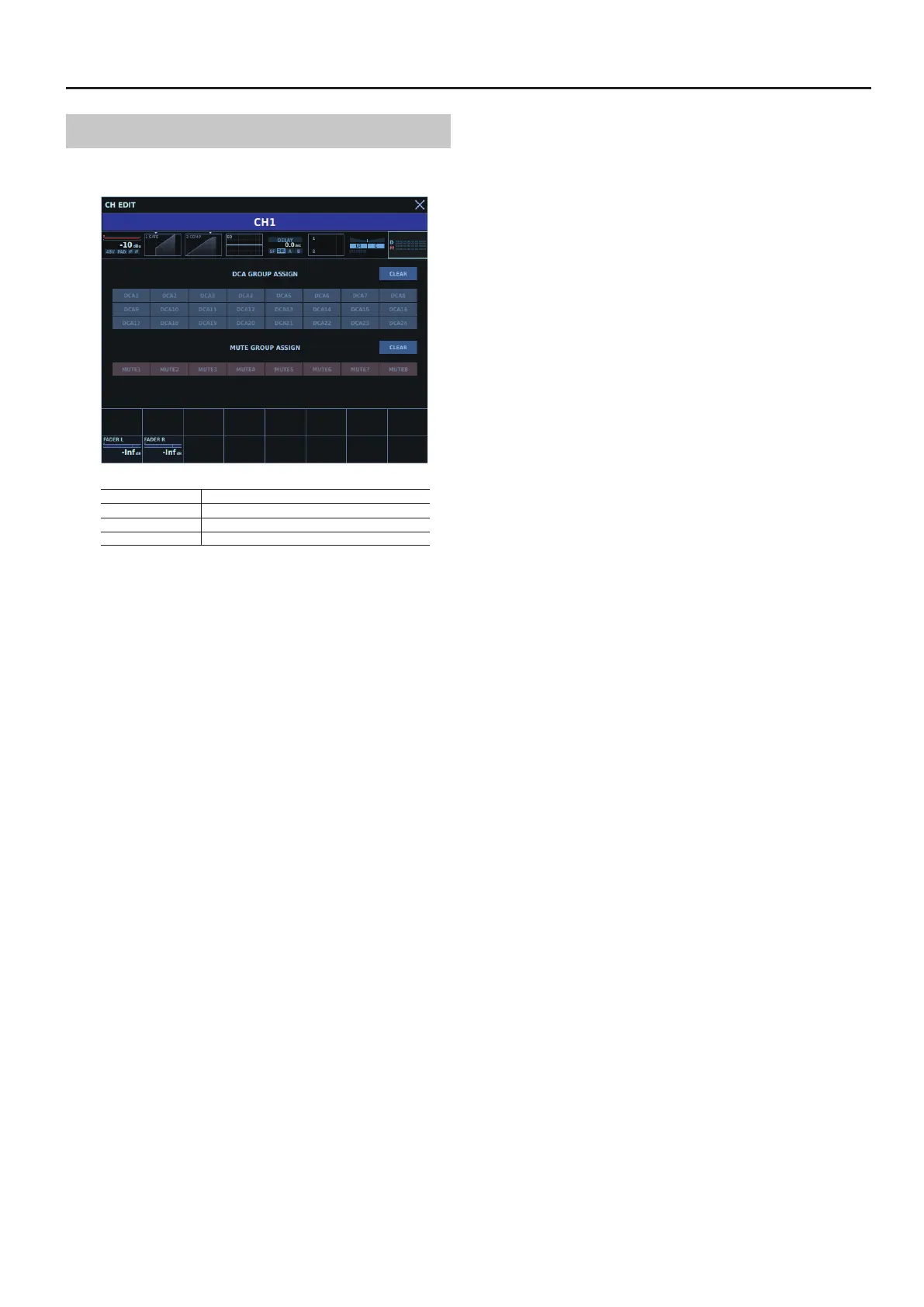

CH EDIT Window

113

DCA/MUTE GROUP Tab

In the DCA/MUTE GROUP tab, you assign input channels and

output buses to DCA and MUTE groups

DCA 1 - DCA 24 Assigns to the DCA group.

MUTE 1 - MUTE 8 Assigns to the MUTE group.

CLEAR Clears all assignments to DCA/MUTE groups.

FADER Manipulates fader.
