About Eect Types

157

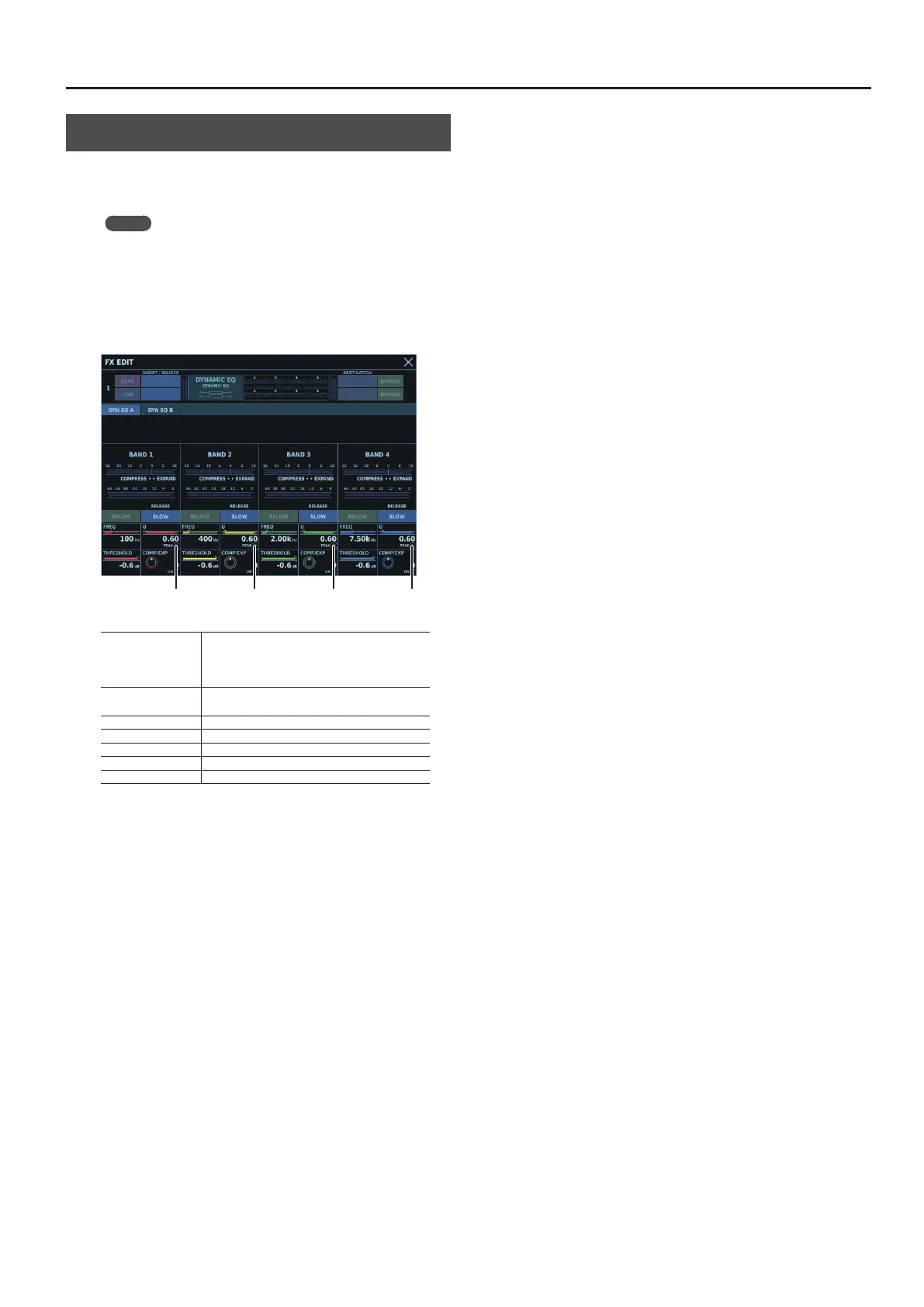

DYNAMIC EQ

This applies a compressor or expander around a specic frequency.

You can make settings for four bands each for A and B.

The operation procedures for A and B are the same.

MEMO

The center-frequency setting ranges for each band are as

follows.

5 Band1: 40Hz-320Hz

5 Band2: 150Hz-1.6kHz

5 Band3: 800Hz-9kHz

5 Band4: 1.6kHz-18kHz

TYPE TYPE TYPE TYPE

BELOW

ON: Eect applied to incoming signals below the

set threshold value

OFF: Eect applied to incoming signals above

and below the set threshold value

RELEASE

Release time

(FAST/SLOW)

FREQ Center frequency

Q Sharpness of the frequency-response curve

THRESHOLD Threshold

COMP/EXP Compressor/Expander

ON Turns the respective band on/o.
