Part Names and Functions

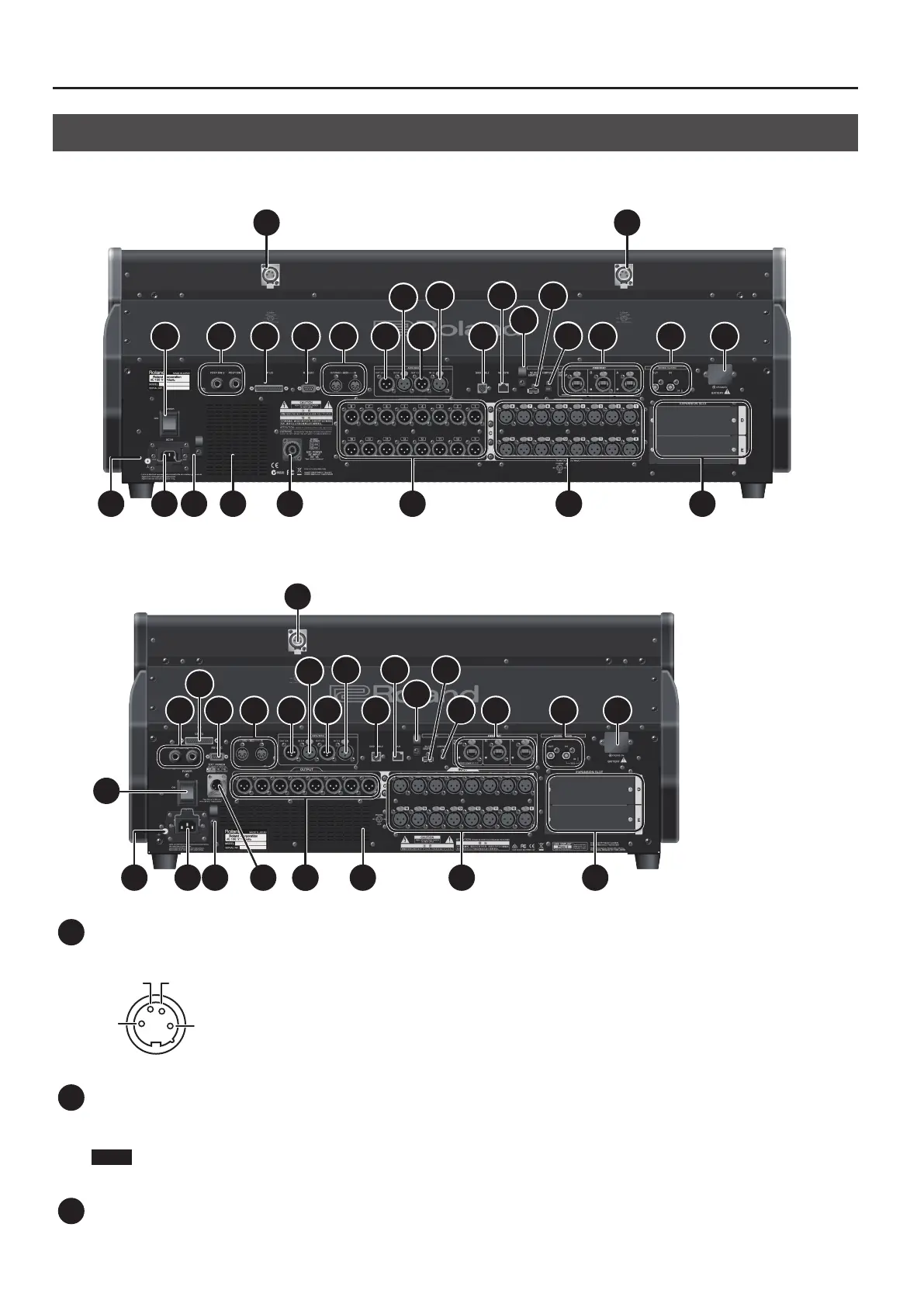

Rear Panel

M-5000

1 1

3 4 5 6 7

14 15 16

18 17 19 20 21 22

25 24

M-5000C

5 6 7

14 15 16

18 17 19 20 21 23 24 25

LAMP Connectors

These are XLR-4-31 connectors that supply power to third-party gooseneck lamps.

GNDNC

NC DC+12V [DC+12V/500mA]

2 POWER Switch

This turns the power on and o.

0“Turning the Power On and O” (p. 20)

NOTE

If you need to turn o the power completely, rst turn o the unit, then unplug the power cord from the power outlet.

3 FOOT SW 1/2 Jacks

These are TRS standard jacks for connecting footswitch pedals.
