242
Settings for the Word Clock
About the Word Clock
The word clock is a synchronizing signal for digital-audio signals.
This is used in the M-5000’s internal digital signal processing and in
the transmission of digital-audio signals between devices.
When transmitting or receiving digital-audio signals between
dierent devices, all devices are synchronized to the same
word-clock signal. Pops and clicks occur if synchronization is not
accomplished correctly.
You can select from among the following as the sampling
frequency for the M-5000.
5 96kHz
5 48kHz
5 44.1kHz
You can select from among the following as the word clock
(clock source) to which M-5000 and devices connected to it are
synchronized.
INTERNAL The M-5000’s internal clock.
WORD CLOCK WORD CLOCK IN connector
A: REAC Master device connected to REAC port A
B: REAC Master device connected to REAC port B
D: (EXPANSION SLOT D)
Expansion interface card installed in
EXPANSION SLOT D
E: (EXPANSION SLOT E)
Expansion interface card installed in
EXPANSION SLOT E

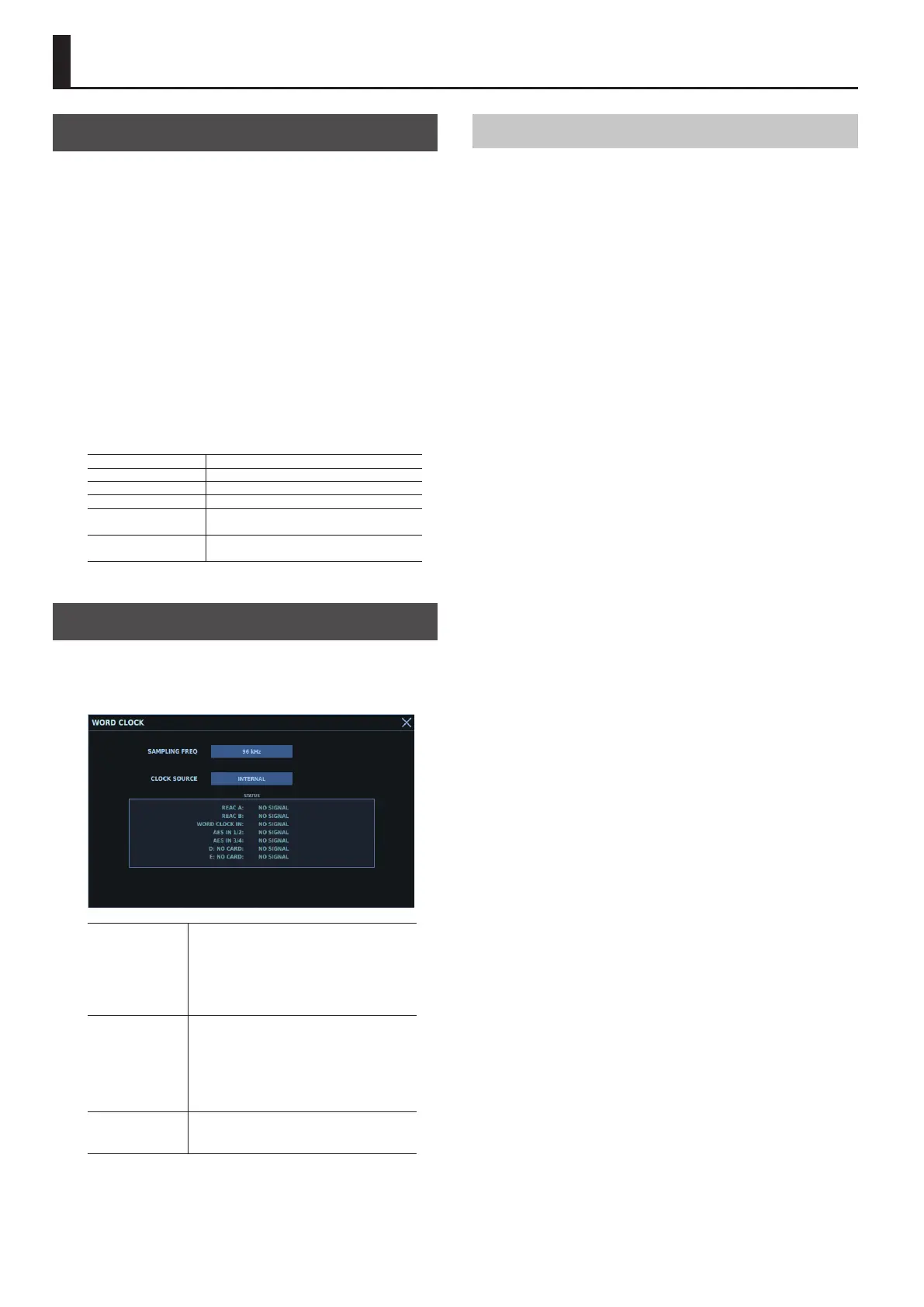

WORD CLOCK Window
In the WORD CLOCK window, you set the M-5000’s sampling
frequency and the clock source.
To display the WORD CLOCK window, go to the SYSTEM window
and tap <WORD CLOCK>.
SAMPLING FREQ
Selects from among the following as the
sampling frequency at which the M-5000
operates.
5 96kHz
5 48kHz
5 44.1kHz
CLOCK SOURCE
Selects the clock source from among the
following.
5 INTERNAL
5 WORD CLOCK
5 A: REAC
5 B: REAC
STATUS
Displays the status of the word clock.
Connectors for which synchronization has not
been achieved are displayed in red.
Changing the Settings for the Word Clock
1. Display the WORD CLOCK window.
2. Tap <SAMPLING FREQ> and select a sampling frequency.
If the setting has changed, <APPLY> is displayed.
3. Tap <CLOCK SOURCE> and select a clock source.
If the setting has changed, <APPLY> is displayed.
4. Tap <APPLY>.
The values set in steps 2 and 3 are applied.
