146

MULTI TAP DELAY

Input R

Output R

Multi Tap Delay

Pan 1

Pan 2

Pan 12

FEEDBACK

LEVEL

DRY

Input L

Output L

DPF

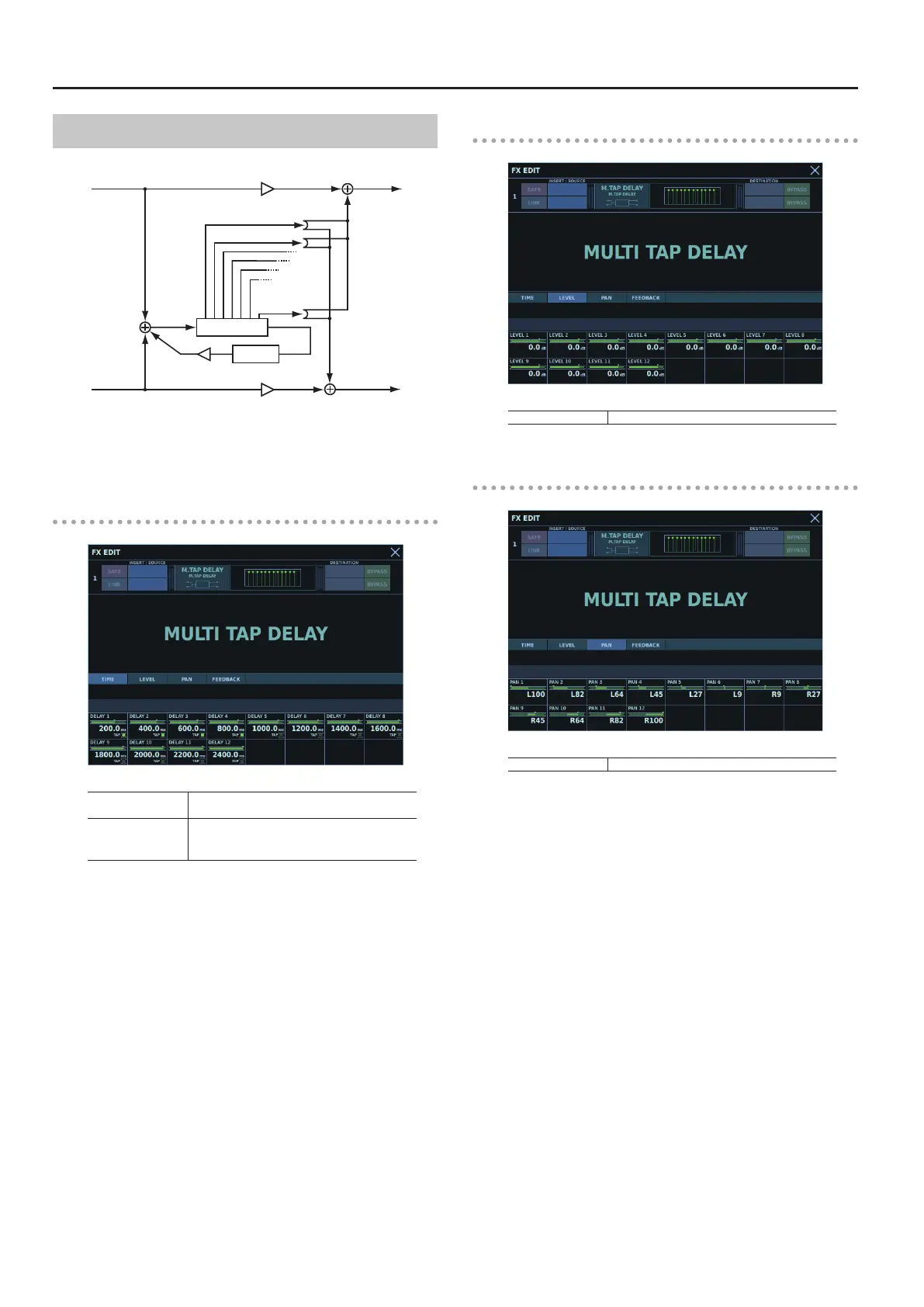

This is a mono-in, stereo-out twelve-stage tap delay.

When MULTI TAP DELAY is selected, four tabs are displayed.

TIME Tab

DELAY 1-12

Time from the original sound until the delay is

heard

TAP

Tap Tempo

Species the DELAY 1-12 as the average interval

at which the button is pressed.

LEVEL Tab

LEVEL 1-12 Level of the delay sound

PAN Tab

PAN 1-12 Panning of the delay sound
