Roland M-5000 Reference Manual

GP I/O and Foot Switches
251

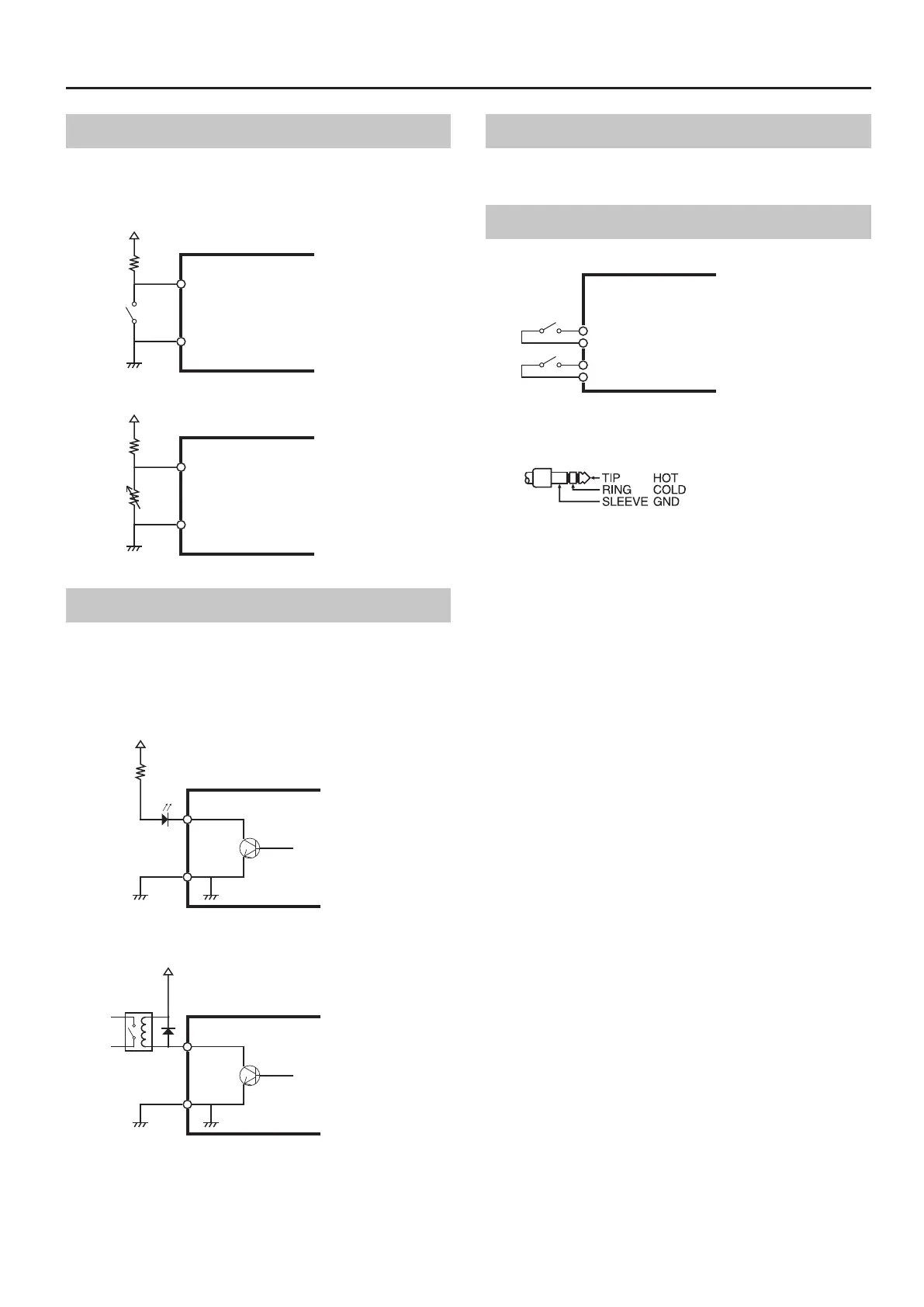

GPI Connectors
The voltage-detection range of GPI connectors is 0 to 5 V. Never
input a voltage higher than 5 V.
GND
GPI
Vmax +5V
M-5000
GND
GPI
Vmax +5V
M-5000
GPO Connectors
The GPO connectors are open-collector outputs.
Maximum voltage is +12 V, and maximum current is 75 mA. Be
careful not to exceed these values.
GND
GPO
Imax 75mA
Vmax +12V
M-5000
GND
GPO
Imax 75mA
Vmax +12V
M-5000
STATUS H: Open
STATUS L: Grounding
+5 V Connector
DC +5 V is output from the +5 V connector. Maximum current is
1,000 mA. Be careful not to exceed this value.
FOOT SW 1/2 Jacks
Switches can be detected at the FOOT SW 1 and 2 jacks.
FOOT SW 1/2 RING
FOOT SW 1/2 TIP
M-5000
FOOT SW 1 and 2 are also balanced 1/4” TRS phone jacks, and
detection of separate signals at the tip (hot) and ring (cold) is
possible.
> FS 1/2 T
> FS 1/2 R
