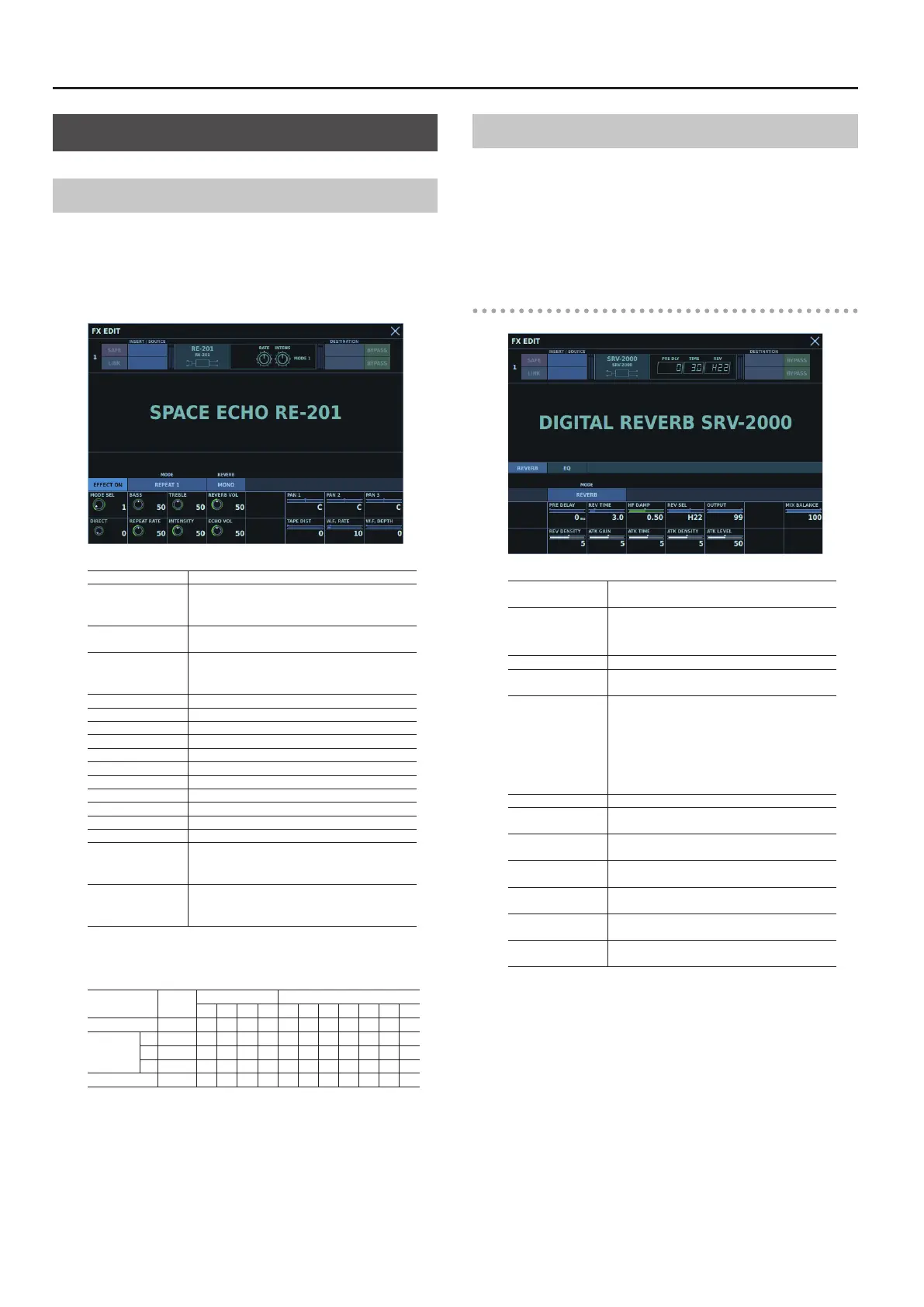

Roland M-5000 Reference Manual

About Eect Types
150
Roland Vintage Eects
RE-201 (Space Echo)
This is a delay that models the Roland RE-201 Space Echo. The
original was mono-in, mono-out, but this modeling adds PAN HEAD
SHORT/MIDDLE/LONG settings and a REVERB STEREO Sw, allowing
you to use it as a mono-in, stereo-out eect.
The RE-201 was a very popular product that was produced from
1974 to 1987.
EFFECT ON Turns the eect sound on/o
MODE
Mode selector
Combination of the three playback heads and
reverb
REVERB
Species whether the reverb sound will be
output in stereo
MODE SEL
Mode selector
Combination of the three playback heads and
reverb
BASS Low-frequency tone of the tape echo sound
TREBLE High-frequency tone of the tape echo sound
REVERB VOL Level of the reverb sound
DIRECT Turns the unprocessed sound on/o
REPEAT RATE Tape speed
INTENSITY Number of times the delay sound will repeat
ECHO VOL Volume of the tape echo sound
PAN 1 Panning of the short playback head
PAN 2 Panning of the middle playback head
PAN 3 Panning of the long playback head
TAPE DIST Adds distortion typical of a tape
W.F. RATE
WOW and FLUTTER RATE
Speed of pitch modulation caused by tape aging
and uneven rotation
W.F. DEPTH
WOW and FLUTTER DEPTH
Depth of pitch modulation caused by tape aging
and uneven rotation
The mode selector position corresponds to the playback head and
reverb as follows.
REV
ONLY
REPEAT REVERB ECHO
1 2 3 4 1 2 3 4 5 6 7
MODE SEL 0 1 2 3 4 5 6 7 8 9 10 11
Playback
head
S
7 7 7 7 7
M
7 7 7 7 7 7
L
7 7 7 7 7 7
Reverb
7 7 7 7 7 7 7 7
SRV-2000 (Digital Reverb)
This is a mono-in, stereo-out reverb that models the Roland
SRV-2000 MIDI digital reverb. It provides two modes: REVERB
mode in which it operates as a conventional reverb, and NON LNR
(non-linear) mode in which the reverb sound is cut o according to
the gate time setting.
When SRV-2000 is selected, two tabs are displayed.
REVERB Tab
MODE
Switches between REVERB mode and NON LNR
mode
PRE DELAY
Time until the reverb sound is output
5 0–160 ms (REVERB mode)
5 0–120 ms (NON LNR mode)
REV TIME Length of the reverb sound
HF DAMP
Proportion by which the high-frequency range is
attenuated (only in REVERB mode)
REV SEL
Type of reverb (only in REVERB mode)
P-A, P-B: Two types of PLATE reverb, A or B
H37, H32, H26, H22, H15: HALL reverb, Number
indicates the room size (in meters)
R37, R32, R26, R22, R15, R7.0, R1.0, R0.3: ROOM
reverb, Number indicates the room size
(in meters)
OUTPUT Output level of reverb sound
MIX BALANCE
Balance between the direct sound and reverb
sound
REV DENSITY
Density of the reverb sound (only in REVERB
mode)
ATK GAIN
Attack gain for the early reections (only in
REVERB mode)
ATK TIME
Attack time for the early reections (only in
REVERB mode)
ATK DENSITY
Density of the early reections (only in REVERB
mode)
ATK LEVEL
Level of the early reections (only in REVERB
mode)
