❑ 28 Nm

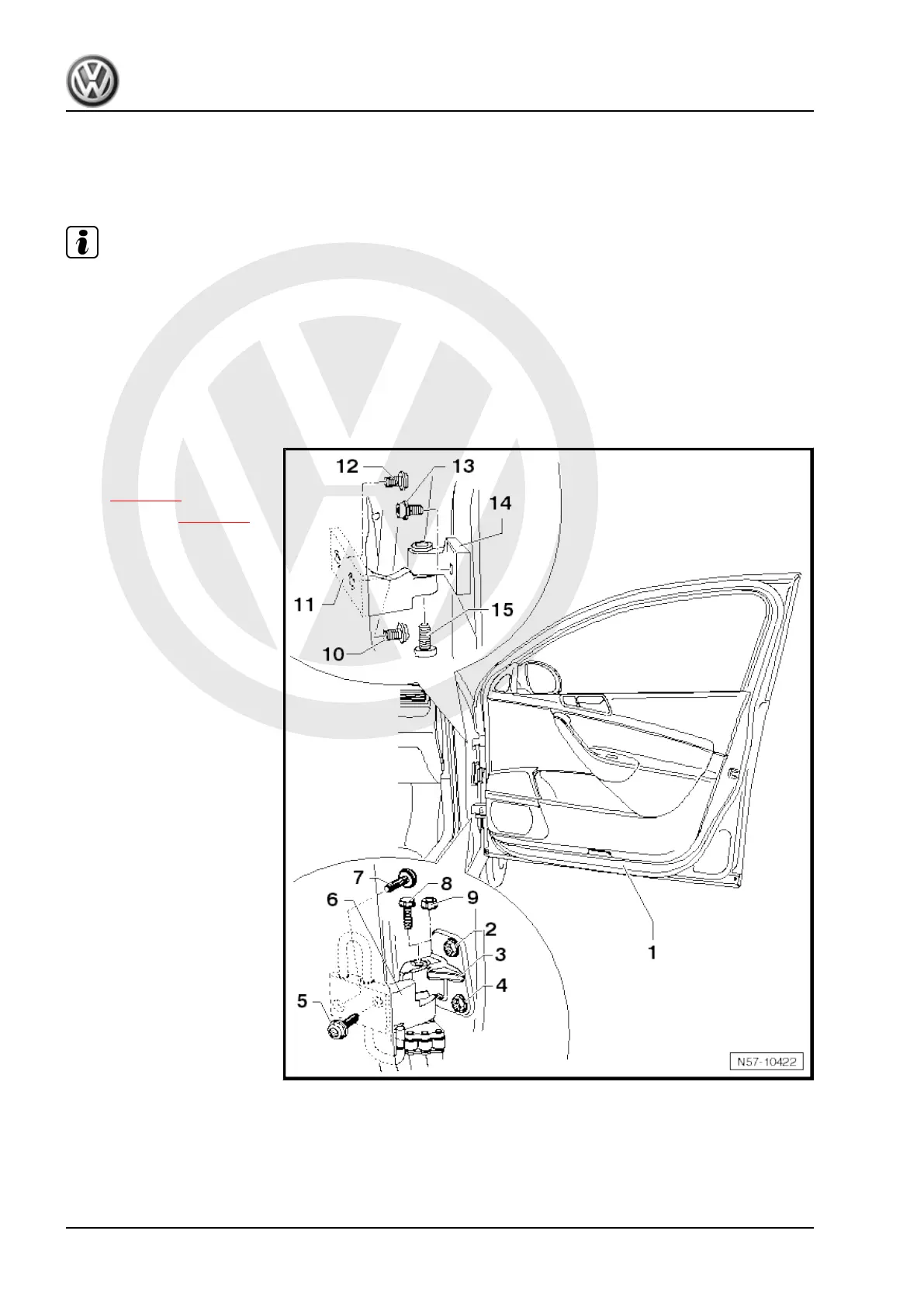

1.3 Assembly overview - door hinges
Note
♦ The right side is shown. The left side is similar.
♦ The hinge bolts must always be renewed if loosened.
♦ The parts of the lower hinge can be bolted on with a bolt -8- or a nut -9-.
♦ The specified torque for the hinge bolts to the door (bolts -2, 4 and 12-) has been revised.
♦ If a new hinge is installed, it must be greased. Work specifications can be found in the “Maintenance manual”
⇒ Maintenance ; Booklet 21.1 .
1 - Door
❑ Removing and installing
⇒ page 93
❑ Adjusting ⇒ page 95
2 - Multi-point socket head bolt
❑ Specified torque: 50 Nm
❑ Always renew bolts after
loosening.
3 - Door hinge
❑ Upper part is bolted to
lower part of hinge with
bolt -8- or nut -9-.
❑ The hinge is split.
4 - Multi-point socket head bolt
❑ Specified torque: 50 Nm
❑ Always renew bolts after
loosening.
5 - Multi-point socket head bolt
❑ Specified torque: 20 Nm
+
1
/
4
turn further (90°)
❑ Installed from inside ve‐
hicle.
❑ Remove lower A-pillar
trim ⇒ General body re‐
pairs, interior; Rep. gr.
70 ; Pillar and side panel
trim; Removing and in‐
stalling A-pillar lower
trim
❑ Always renew bolts after
loosening.
6 - Door hinge with arrester
❑ Lower part is bolted to upper part of hinge with bolt -8- or nut -9-.
❑ The hinge is split.
7 - Multi-point socket head bolt
❑
Specified torque: 20 Nm +
1
/
4
turn further (90°)
❑ Always renew bolts after loosening.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
92 Rep. gr.57 - Front doors, door components, central locking
