3.7 Adjusting height of front and rear glass
panel
3.7.1 Checking height adjustment
Note
♦
Front glass panel must only be adjusted at front edge -3- and rear glass panel at rear edge -1-.
♦
To achieve the best possible optical appearance, ensure that adjustments on left and right are as far as is
possible uniform (symmetric).
♦
Arrow -d- points in direction of normal travel.
Checking height adjustment

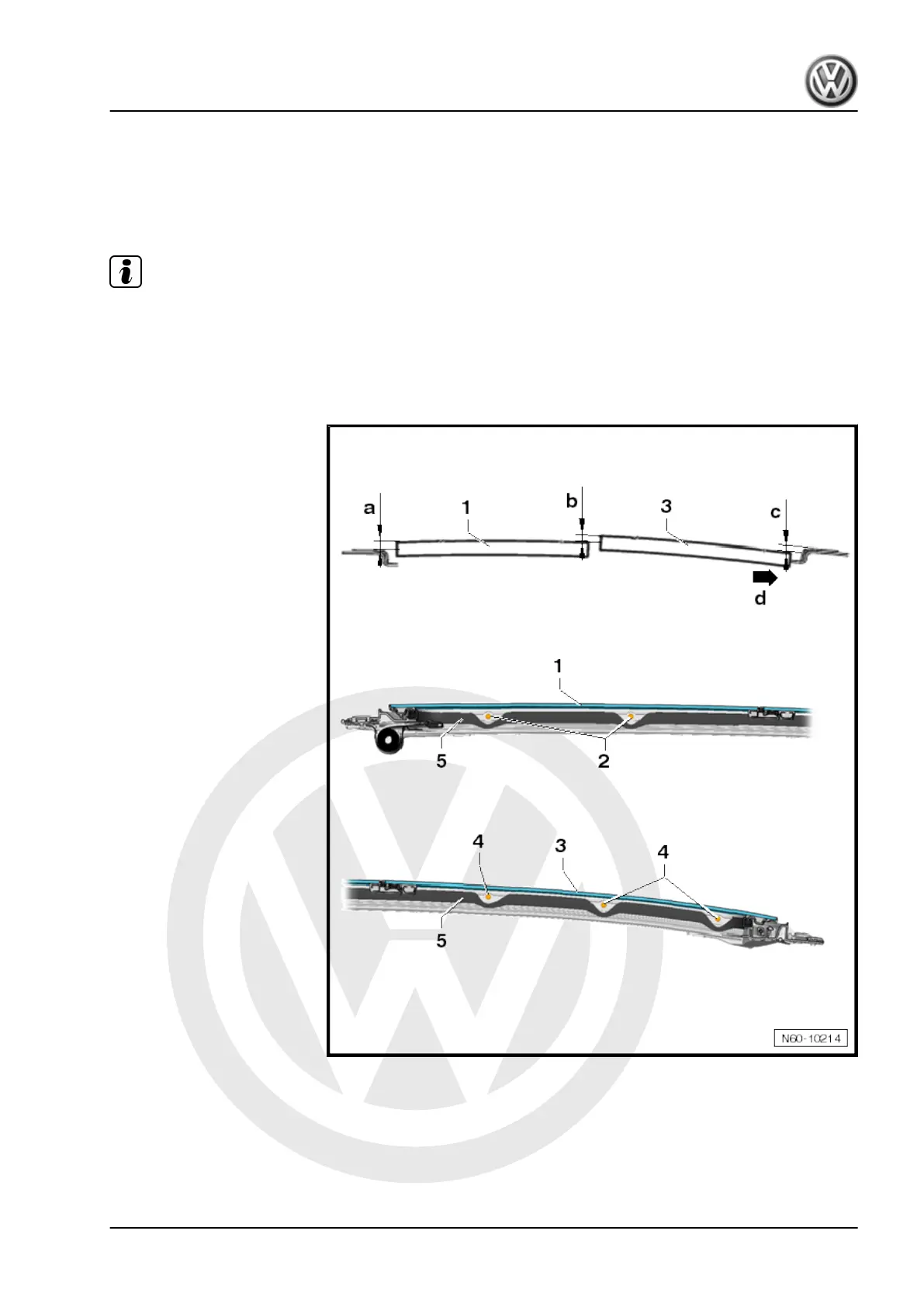

– Check adjustment of front glass panel -3- and rear glass panel
-1- with a depth gauge.
♦ Dimension -a- = -0.2 … 1.8 mm
♦ Dimension -b- : 0 … 1.3 mm
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
3. Panorama sliding sunroof (Arvin-Meritor) 221
