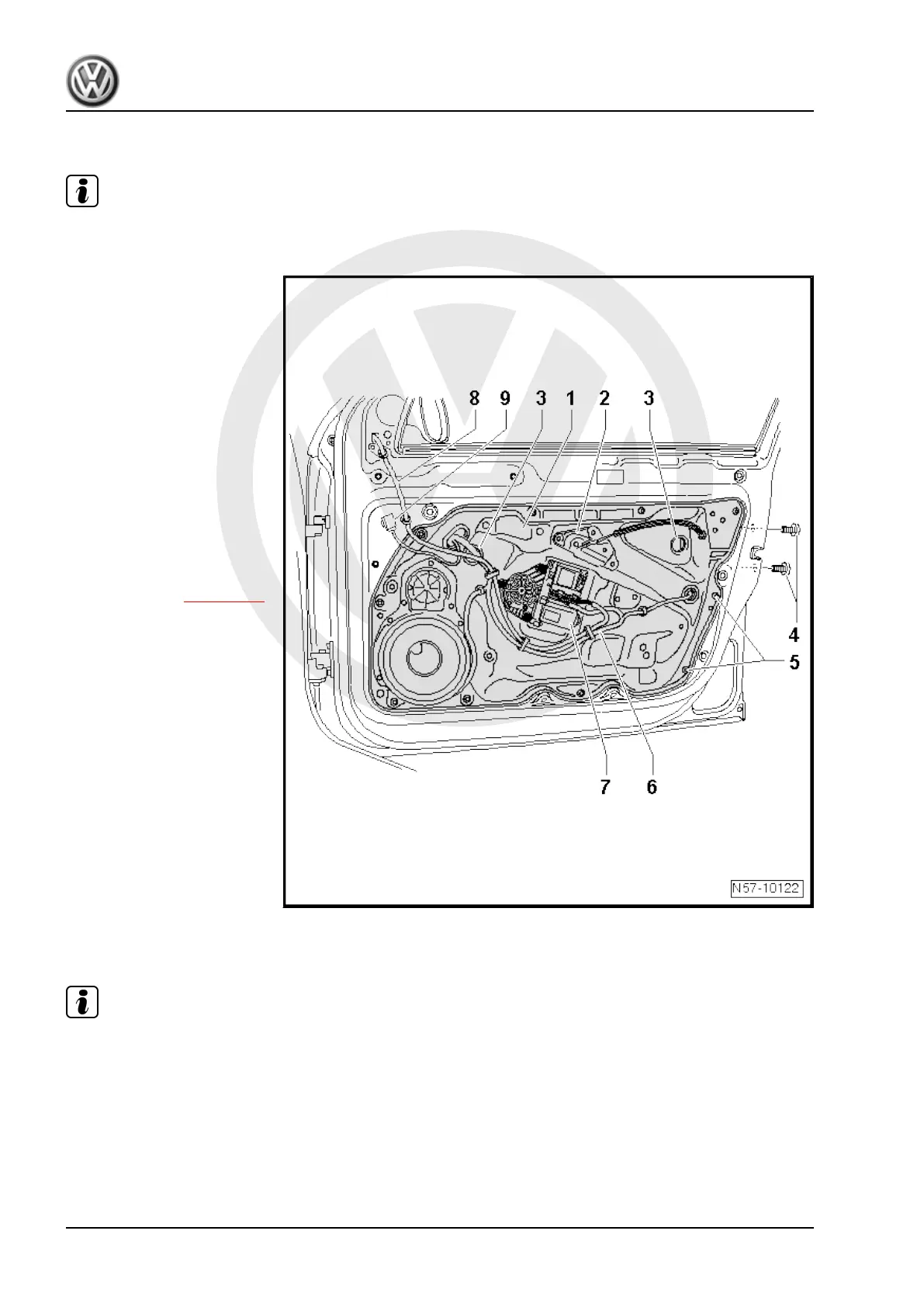

2.2 Assembly overview - assembly carrier
Note
The right side is shown. The left side is similar.
1 - Subframe
2 - Mounting bracket
3 - Caps for assembly opening
❑ Qty. 2
4 - Bolt
❑ Qty. 2
❑ Specified torque: 20 Nm
5 - Bolt
❑ Qty. 10
❑ Specified torque: 8 Nm
6 - Wiring harness
❑ To door lock.
7 - Window regulator motor
❑ Removing ⇒ page 348
8 - Wiring harness
❑ To exterior mirror.
9 - Connector
❑ For wiring harness, door
trim panel.
2.3 Removing and installing subframe
Note
♦
The removal and installation sequence is only for the right as‐
sembly carrier. Removal and installation of the left assembly
carrier are similar.
♦
The bolts -3- have left-handed threads.
Window regulator, door lock and loudspeaker are secured to the
assembly carrier.
The door lock can be removed only together with the assembly
carrier.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
98 Rep. gr.57 - Front doors, door components, central locking
