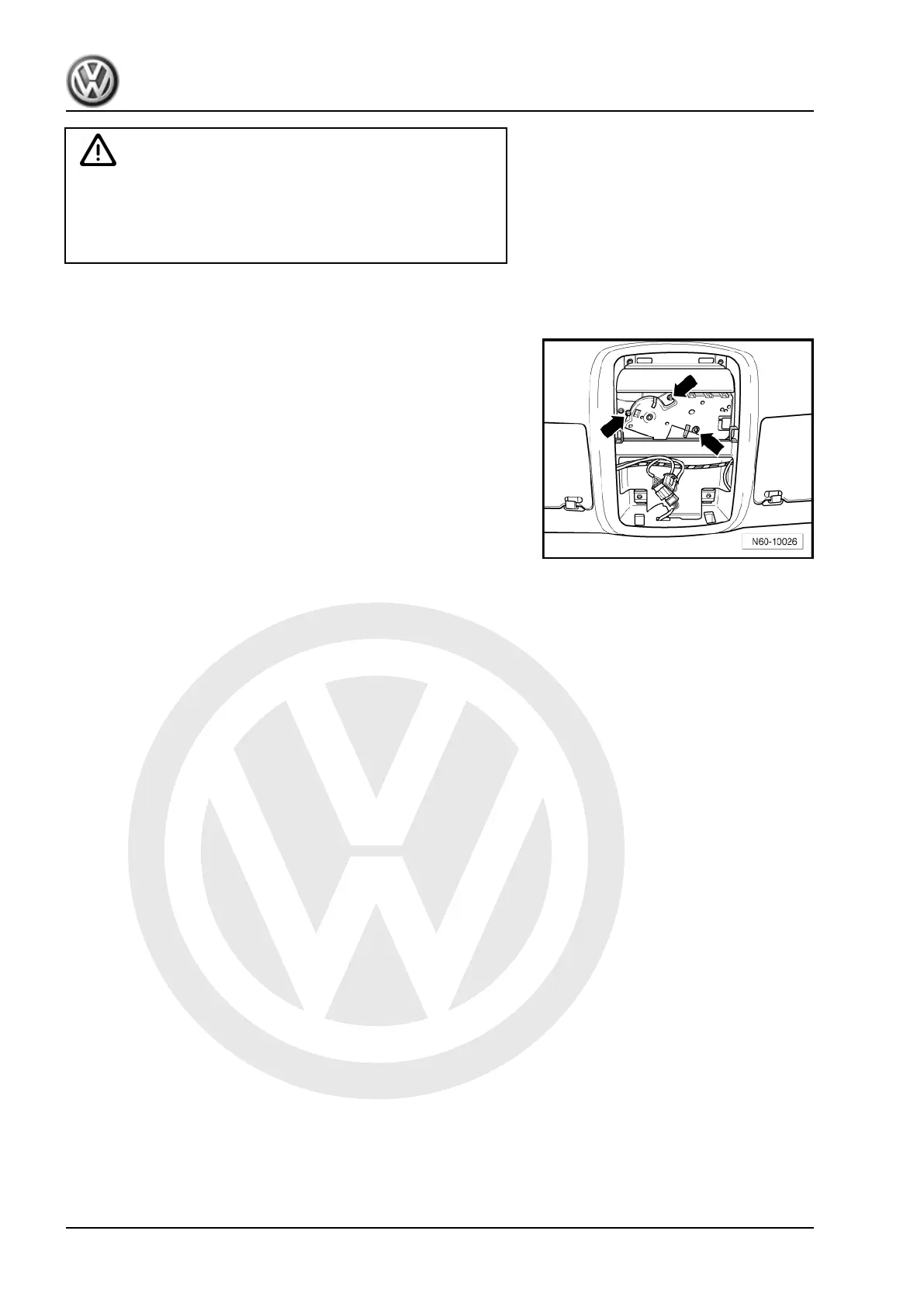

WARNING
Remove or install drive for tilting/sliding sunroof glass panel
only when sunroof is closed ("0" position ).
The requirements for removing and installing drive are: Engine
not running and ignition off, key not in ignition and door open.
– Switch off engine and ignition, withdraw key and open door.
• This condition must remain until drive has been installed.
– Remove screws -arrows- and pull off sliding/tilting sunroof
drive.
– Separate connector for sliding/tilting sunroof drive.
1.12.2 Installing
• The screws for the sliding/tilting sunroof drive are microen‐
capsulated and must always be renewed (3.5 Nm).
Installation is carried out in the reverse order of removal.
– After installation is complete the key can be placed in ignition
and starter switch again.
• Finally check function.
1.13 Adjusting drive for sliding/tilting sunroof
glass panel ("0" position)
There may be a requirement to adjust the "0" position if the drive
was removed when not in "0" position or the sliding/tilting sunroof
glass panel was opened or closed using the emergency key.
Drive removed but still connected electrically.
– Select “open sunroof” using preselection control rotary knob.
– Select “close sunroof” using preselection control rotary knob.
– Select “tilt sunroof” using preselection control rotary switch.
– Select “close sunroof” using preselection control rotary knob.
– Install drive in this position ("0" position) with sliding/tilting sun‐
roof glass panel closed.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
186 Rep. gr.60 - Sunroof
