2.10 Removing and installing hinge seal
2.10.1 Removing
– Remove left luggage compartment trim ⇒ General body re‐
pairs, interior; Rep. gr. 70 ; Load and luggage compartment
trim; Removing and installing luggage compartment trim on
left-hand side (saloon) .

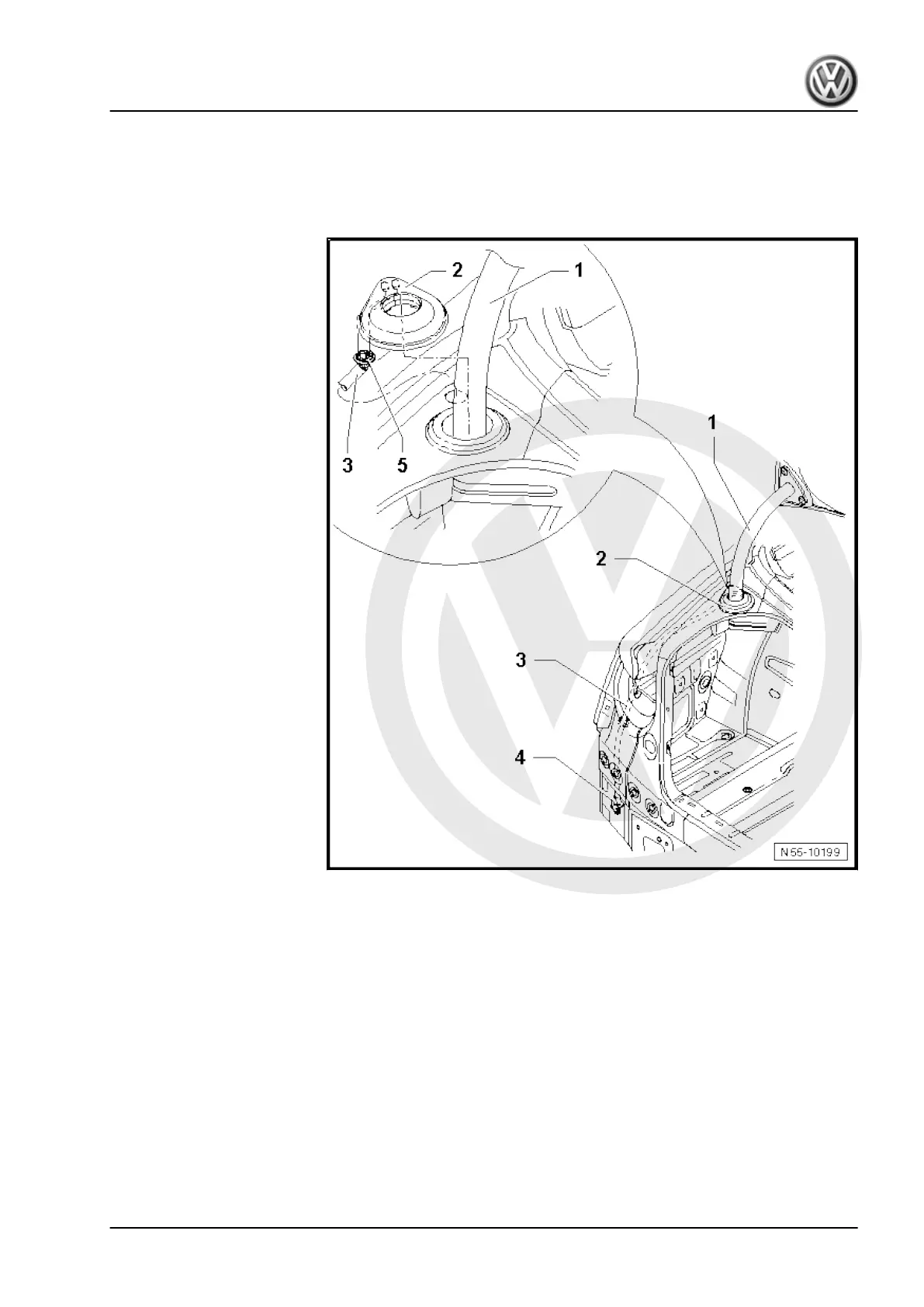

– Pull off seal -2- from sealing channel and valve.
– Open locking mechanism in seal and pull off seal from hinge
-1-.
– Detach hose -3- from retainer in side panel and from grommet
-4-.
– Pull out valve -5- with hose -3- from sealing channel.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
2. Rear lid (saloon) 47
