9 - Bolt
10 - End piece
❑ Use Butyl adhesive sealing cord AKL 450 005 05 to seal.
11 - Carrier unit
❑ Removing carrier unit ⇒ page 206 .
❑ U-frame with guide channels: grease guide channels as required with special grease G 000 450 02 only.
Otherwise correct operation cannot be guaranteed.
12 - Bolt
❑ Specified torque: 1 Nm
13 - Electrical contact for sliding/tilting sunroof solar panel
❑ On assembly unit.
❑ Both contacts with electrical wiring and push-on connection.
❑ Removing ⇒ page 205
14 - Electric drive
❑ Removing ⇒ page 203
❑ Adjusting drive ("0" position) ⇒ page 204 .
15 - Bolt
❑ Bolts are microencapsulated and must always be renewed after loosening.
❑ Qty. 3
❑ Specified torque: 3.5 Nm
16 - Spring
❑ For raising wind deflector
17 - Bolt
❑ Specified torque: 1.5 Nm
18 - Wind deflector
❑ Removing ⇒ page 202
19 - Bolt
❑ Specified torque: 2 Nm
20 - Electrical contact for sliding/tilting sunroof solar panel
❑ On panel.
❑ Removing ⇒ page 205

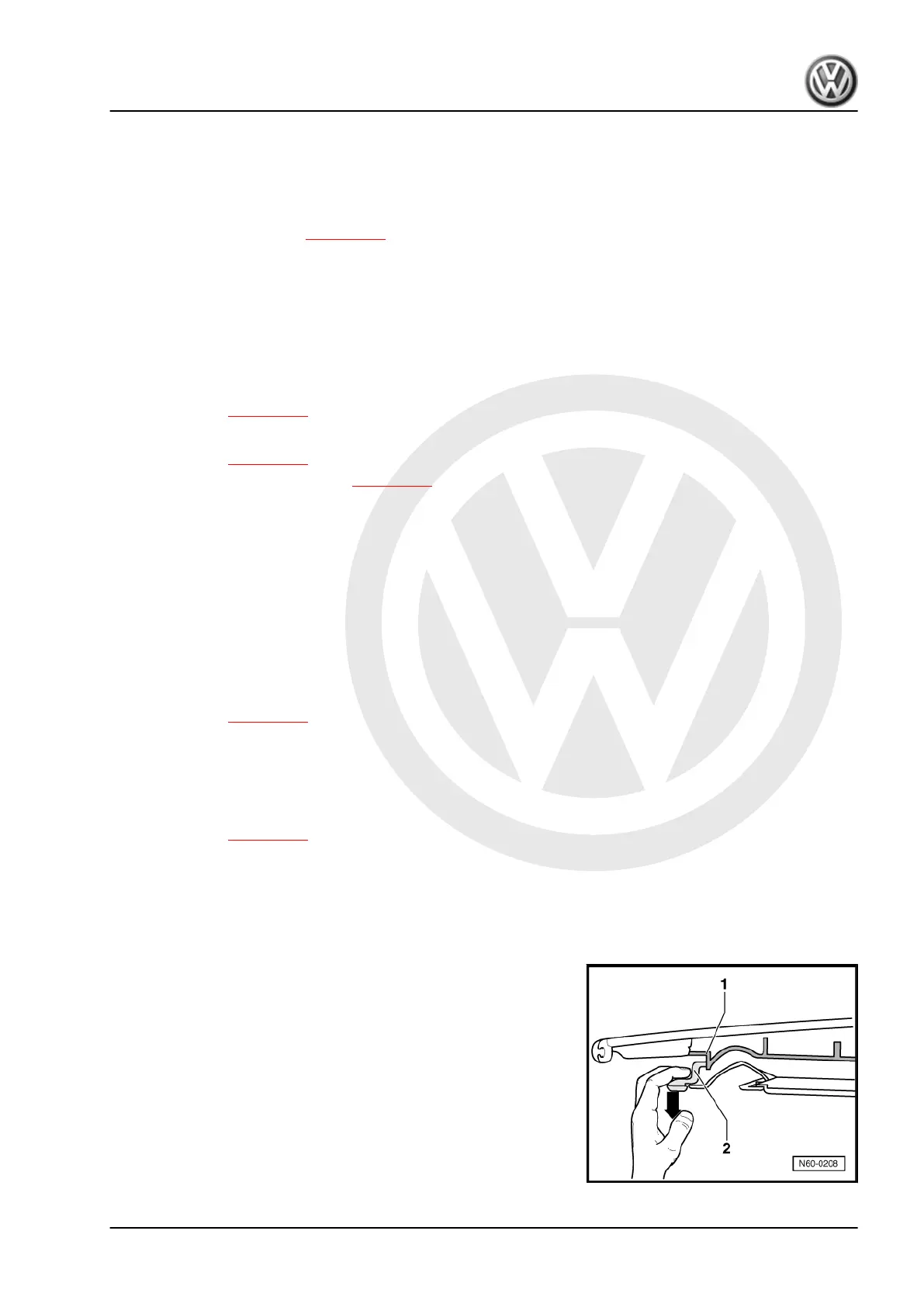

2.4 Removing sliding/tilting sunroof solar
panel
– Open sliding/tilting sunroof about 10 cm rearwards.
– Pull trim -2- downwards in the middle -arrow- out of mounting
-1-.
– Push the trim rearwards.
– Raise sliding/tilting sunroof
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
2. Sliding/tilting sunroof with solar panel (Webasto) 199
