3.9 Removing and installing door lock
Note
Removal and installation are described only for the right door lock.
The removal and installation of the left door lock is similar.
3.9.1 Removing
– Remove subframe ⇒ page 148 .

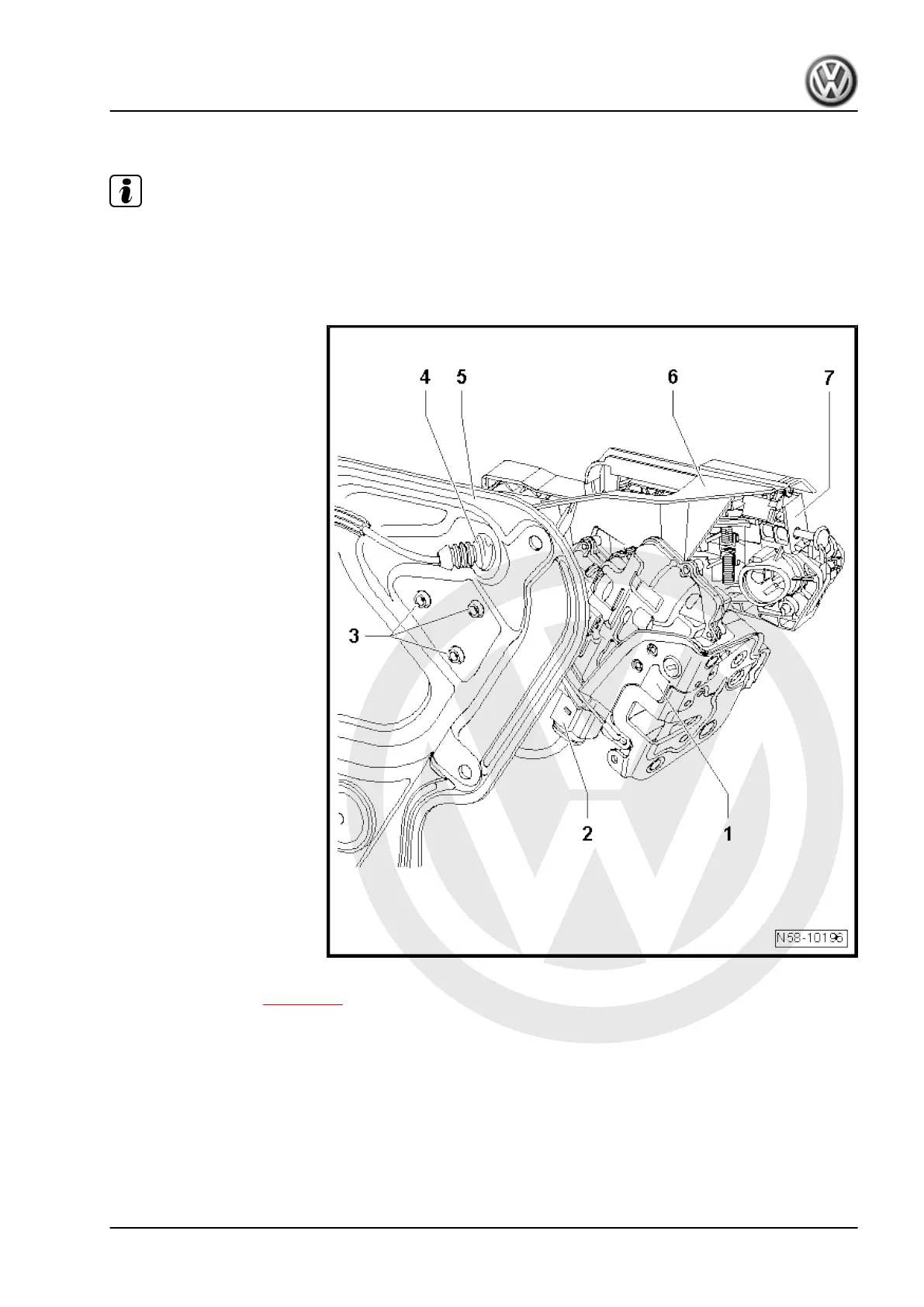

– Turn assembly carrier -5- around and pull connector -2- off
door lock -1-.
– Drive out clips -3- using a punch.
– Using a screwdriver, lever off door lock -1- with retaining
bracket -6- and mounting bracket -7- from assembly carrier.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
3. Door components 161
