3.19 Removing and installing assembly
frame
3.19.1 Removing
Note
A second mechanic is required for removing and installing assembly frame.
– Remove moulded headliner ⇒ General body repairs, interior;
Rep. gr. 70 ; Roof trim .

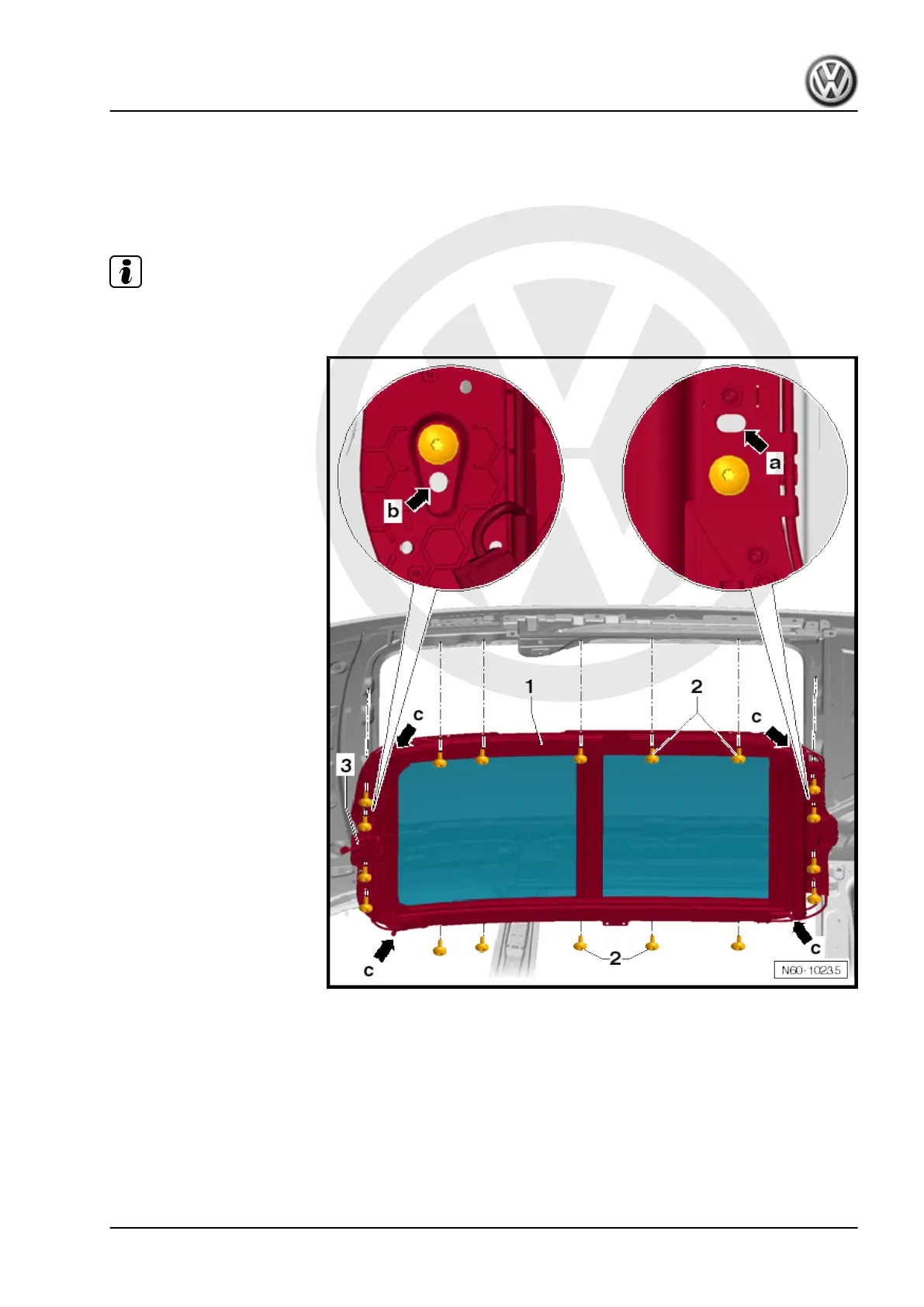

– Pull water drain hoses off the connection pieces -arrows c- of
the assembly frame -1-.
– Disconnect connector to wiring harness on sliding roof motor
-3-.
– Loosen bolts -2-, do not unscrew.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
3. Panorama sliding sunroof (Arvin-Meritor) 255
