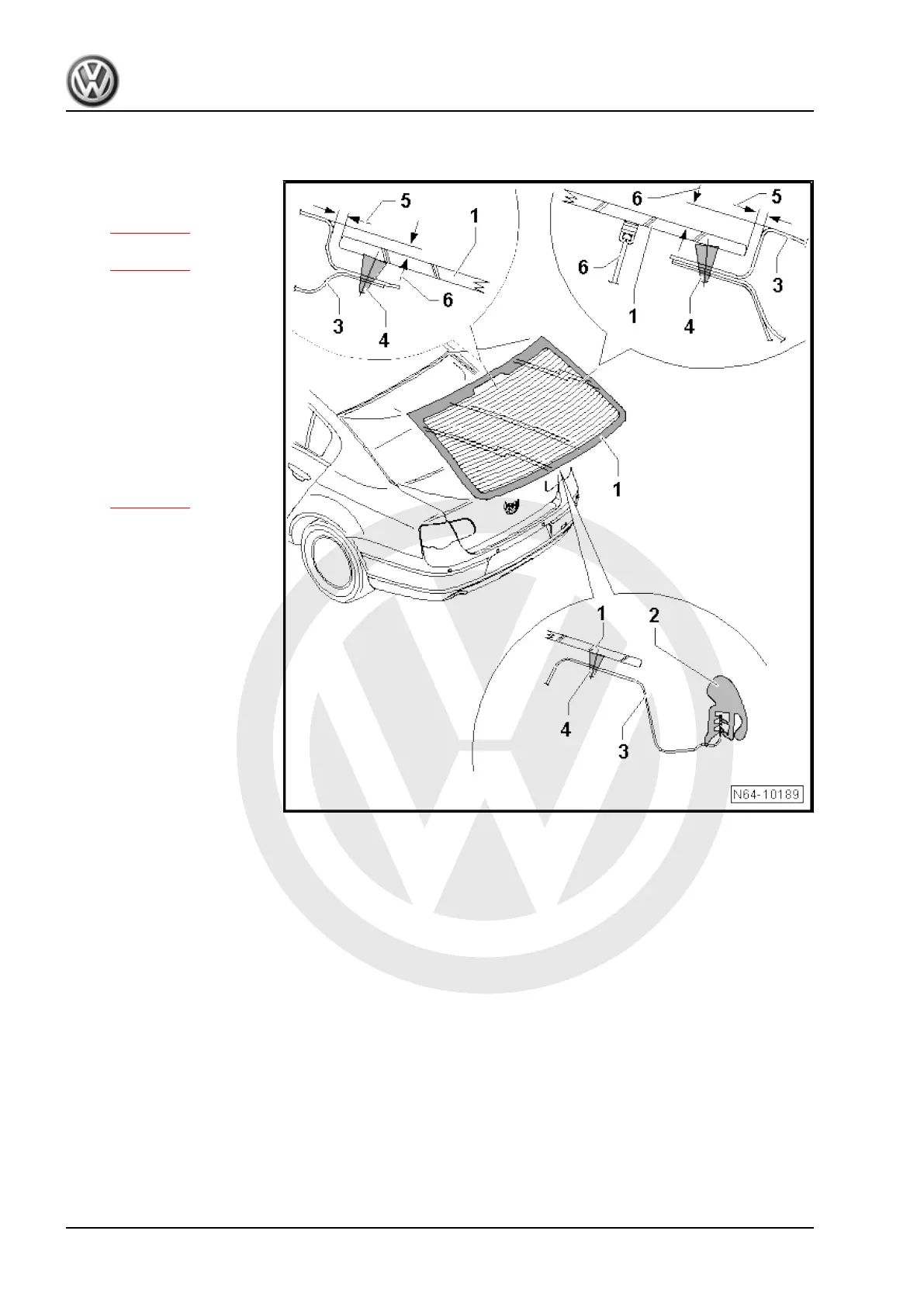

1.7 Assemble overview - rear window (saloon)
1 - Rear windscreen
❑ Removing rear window
⇒ page 327 .
❑ Installing rear window
⇒ page 328 .
2 - Seal
❑ For rear lid
3 - Body flange
4 - PUR adhesive sealant
❑ Cross section of bead:
Width = 6.5 mm Height
= 10 mm (including pre‐
coating, residual materi‐
al on window glass and
window flange).
❑ Minimum curing period
⇒ page 341 .
5 - Gaps/shut lines
❑ Set dimension on top
and side equally to
2.5 mm using setting
gauge - 3371- .
6 - Top and side dimensions
❑ Top - from window sur‐
face to roof upper edge
❑ Top: adjust dimension
uniformly to 3 mm using
setting gauge - 3371-
❑ Side - from window
edge to side panel up‐
per edge
❑ Side: adjust dimension
uniformly to 6.5 mm us‐
ing setting gauge -
3371-
7 - Window heater contact
