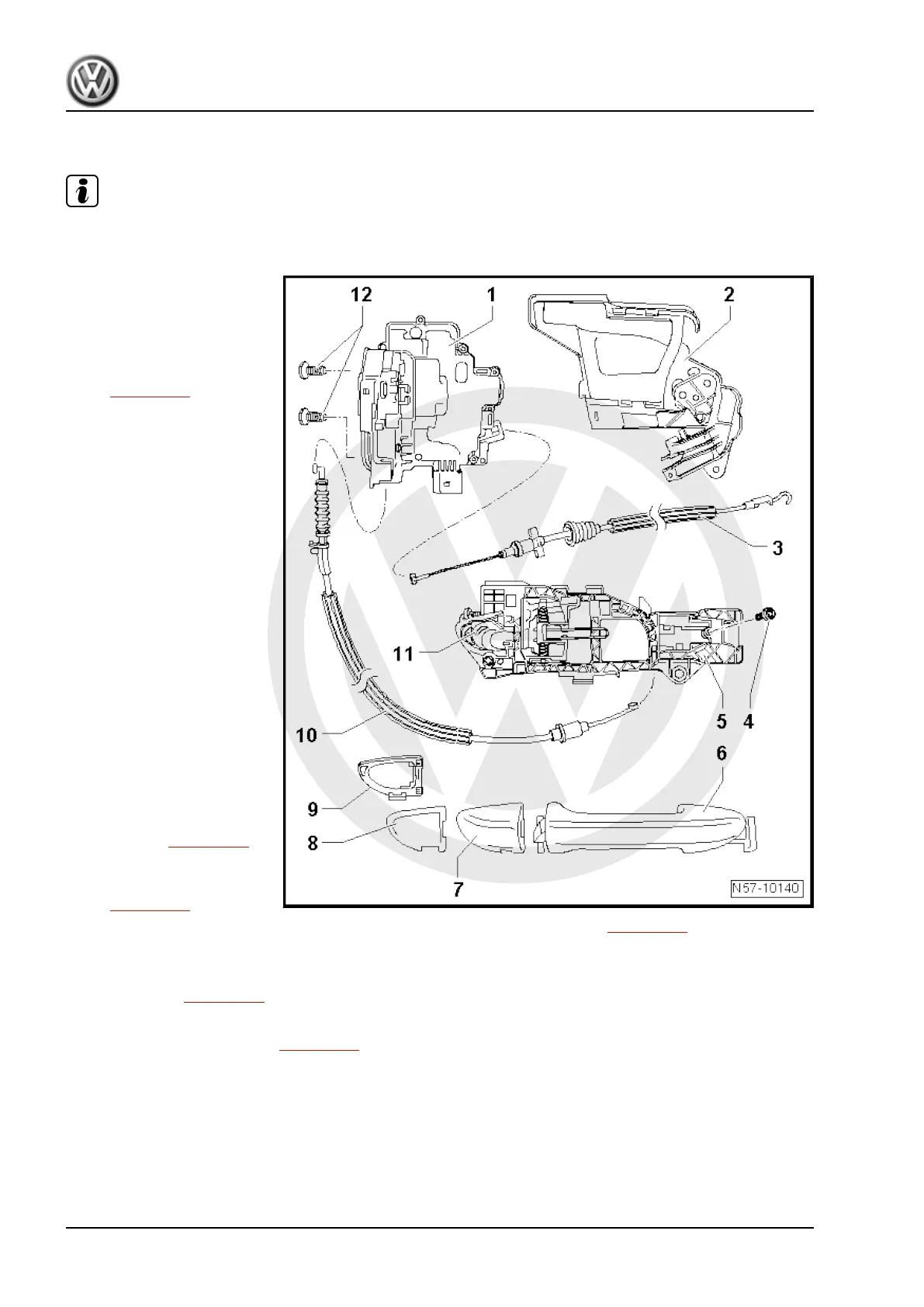

2.4 Assembly overview - door handle and door lock
Note
The right side is shown. The left side is similar.
1 - Door lock
❑ The door lock can be re‐
moved only together
with the assembly carri‐
er.
❑ Removing and installing
⇒ page 110
2 - Retaining bracket
❑ Pushed onto door lock
and engaged in place
❑ Also takes on function of
cover previously instal‐
led.
3 - Bowden cable
❑ To release lock with in‐
terior door handle.
❑ With grommet allowing
it to pass through on as‐
sembly carrier
4 - Bolt
❑ Specified torque:
4.5 Nm
❑ Bearing plate is loos‐
ened from door when
this bolt is loosened
5 - Mounting bracket
❑ Pushed into retaining
bracket.
❑ Removing lock cylinder
housing ⇒ page 106
6 - Door handle with base
❑ Removing and installing
⇒ page 107
❑ Removing and installing door handle with access and start authorisation ⇒ page 108
7 - Cover
❑ For lock cylinder housing
❑ Removing ⇒ page 105
8 - Lock cylinder housing
❑ Removing and installing ⇒ page 106
❑ A lock cylinder can only be found in the driver's door
9 - Carrier
10 - Bowden cable
❑ To mounting bracket; allows door to be opened via exterior door handle.
11 - Bolt
❑ For lock cylinder.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
104 Rep. gr.57 - Front doors, door components, central locking
