3 Central locking

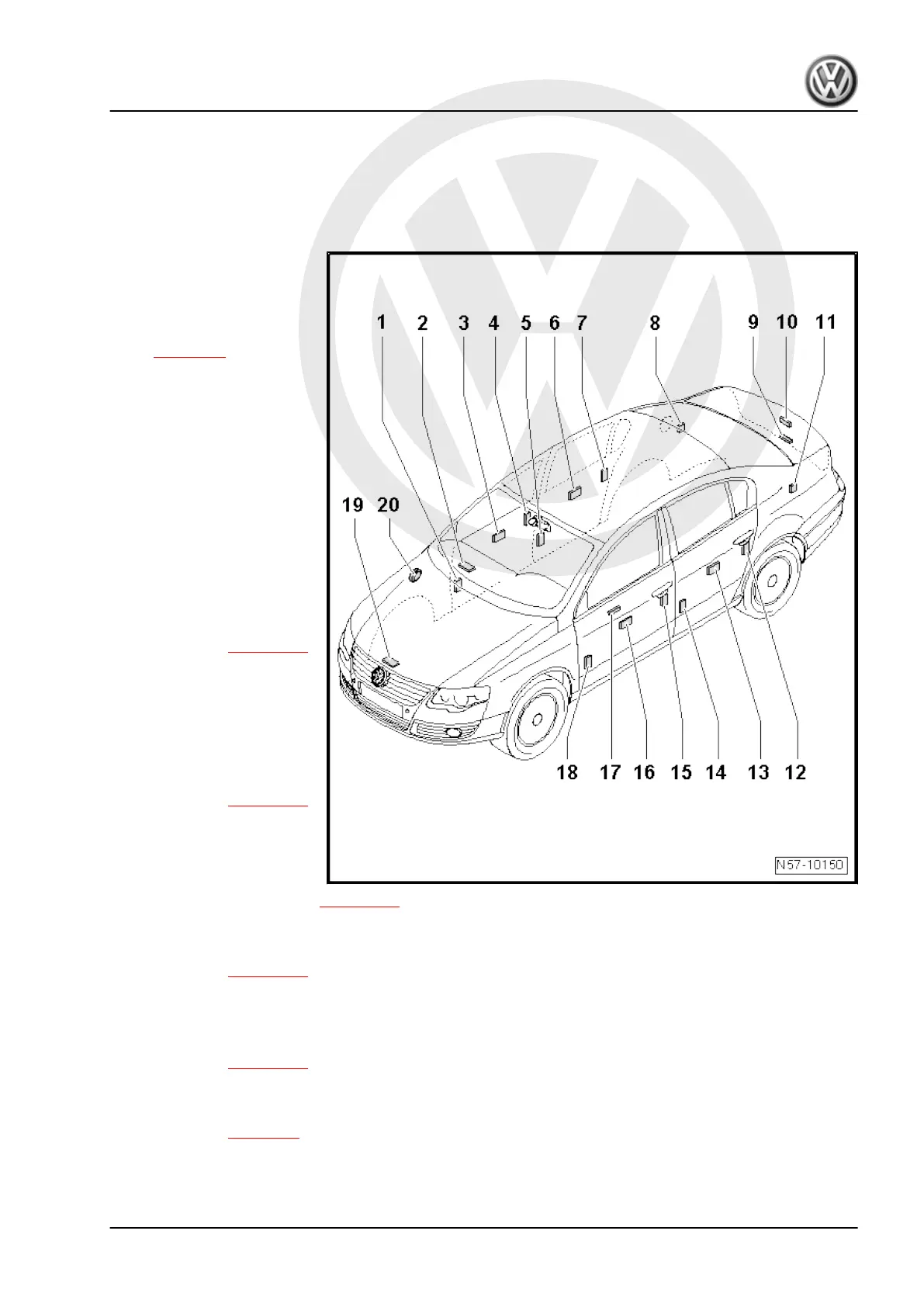

3.1 Fitting location overview - central locking components
1 - Coupling station
❑ Fitting location: right A-
pillar.
❑ To disconnect connec‐
tor, loosen boot at pillar
⇒ page 93 .
2 - Convenience system cen‐
tral control unit - J393-
❑ Fitting location: under
dash panel on front pas‐
senger side
❑ Removing ⇒ General
body repairs, interior;
Rep. gr. 70 ; Dash‐
board; Removing and
installing dash panel
3 - Front passenger door con‐
trol unit - J387-
❑ Integrated in window
regulator motor, front
passenger side - V148-
❑ Removing ⇒ page 348
4 - Door lock on front passen‐
ger side
❑ Door lock is secured to
assembly carrier.
❑ Electric central locking
is integrated in door
lock.
❑ Removing ⇒ page 110
5 - Coupling station
❑ Fitting location: right B-
pillar.
❑ To disconnect connec‐
tor, loosen boot at pillar ⇒ page 134 .
6 - Rear right door control unit - J389-
❑ Integrated in rear right window regulator motor - V27-
❑ Removing ⇒ page 360
7 - Rear right door lock
❑ Door lock is secured to assembly carrier.
❑ Electric central locking is integrated in door lock.
❑ Removing ⇒ page 161
8 - Tank filler flap locking motor - V155-
❑ Fitting location: behind right luggage compartment trim
❑ Removing ⇒ page 88
9 - Rear lid handle release button - E234-
❑ Location (saloon): in VW emblem
❑ Location (estate): on rear lid
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
3. Central locking 125
