3.24 Operating without current
3.24.1 Glass panel
Note
♦
In the event of power failure, front glass panel near to sliding sunroof motor can be moved by hand using a
commercially available hexagon key.
♦
Front glass panel must only be moved manually until its front edge is flush with front edge of rear glass
panel. If glass panel is moved further backwards, mechanism cables may hook off.

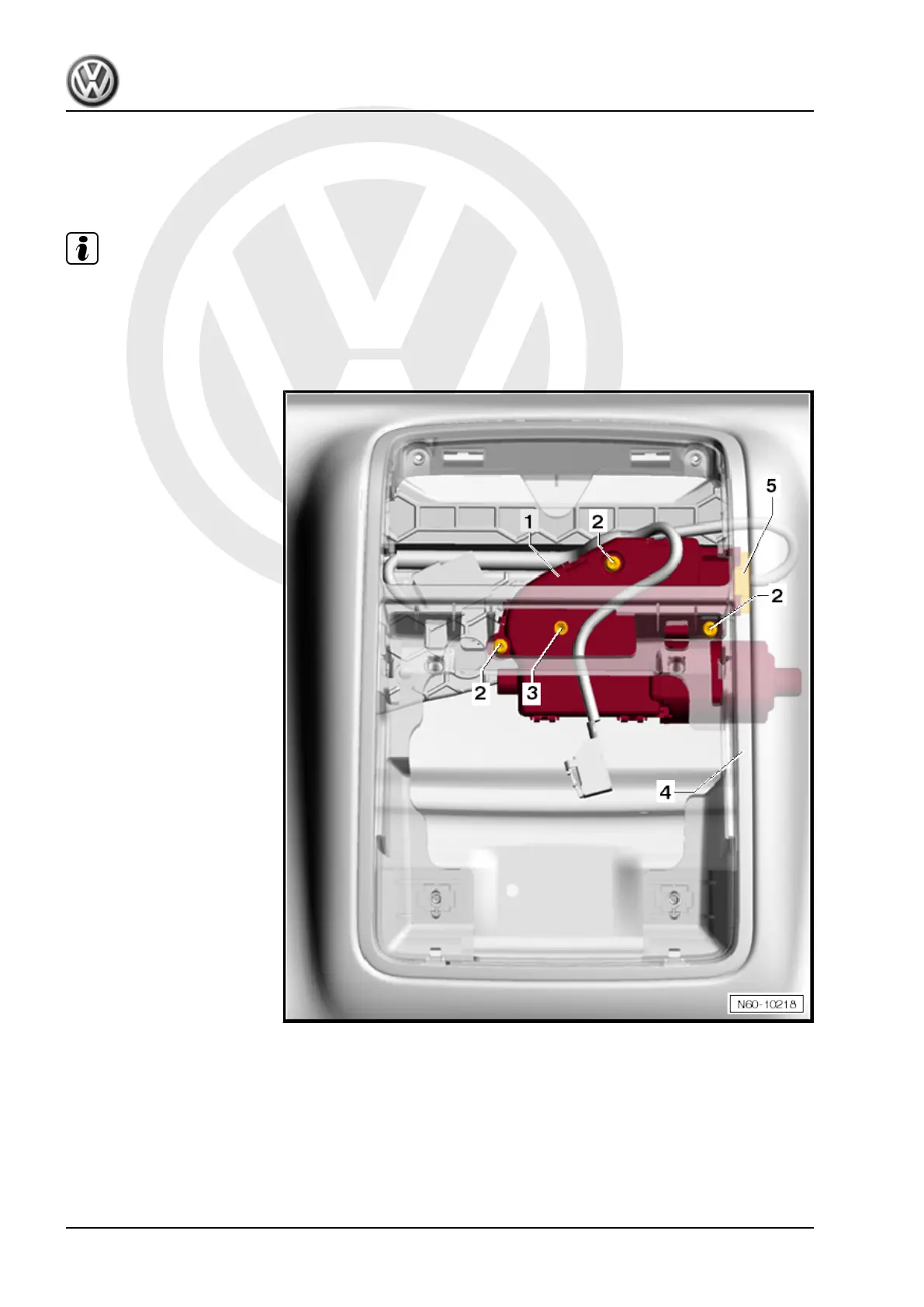

– Removing front lights and operating unit ⇒ Electrical system;
Rep. gr. 96 ; Lights and switches in roof trim; Front interior
lights .
– Using a standard hexagon key, undo the bolt -3-.
When turning by hand, greater force is necessary since motor is
not uncoupled from drive.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
270 Rep. gr.60 - Sunroof
