3.4 Removing and installing rear lid hinge
3.4.1 Removing
– Remove rear lid ⇒ page 60 .
– Remove moulded headliner ⇒ General body repairs, interior;
Rep. gr. 70 ; Roof trim; Removing and installing moulded
headliner (estate) .

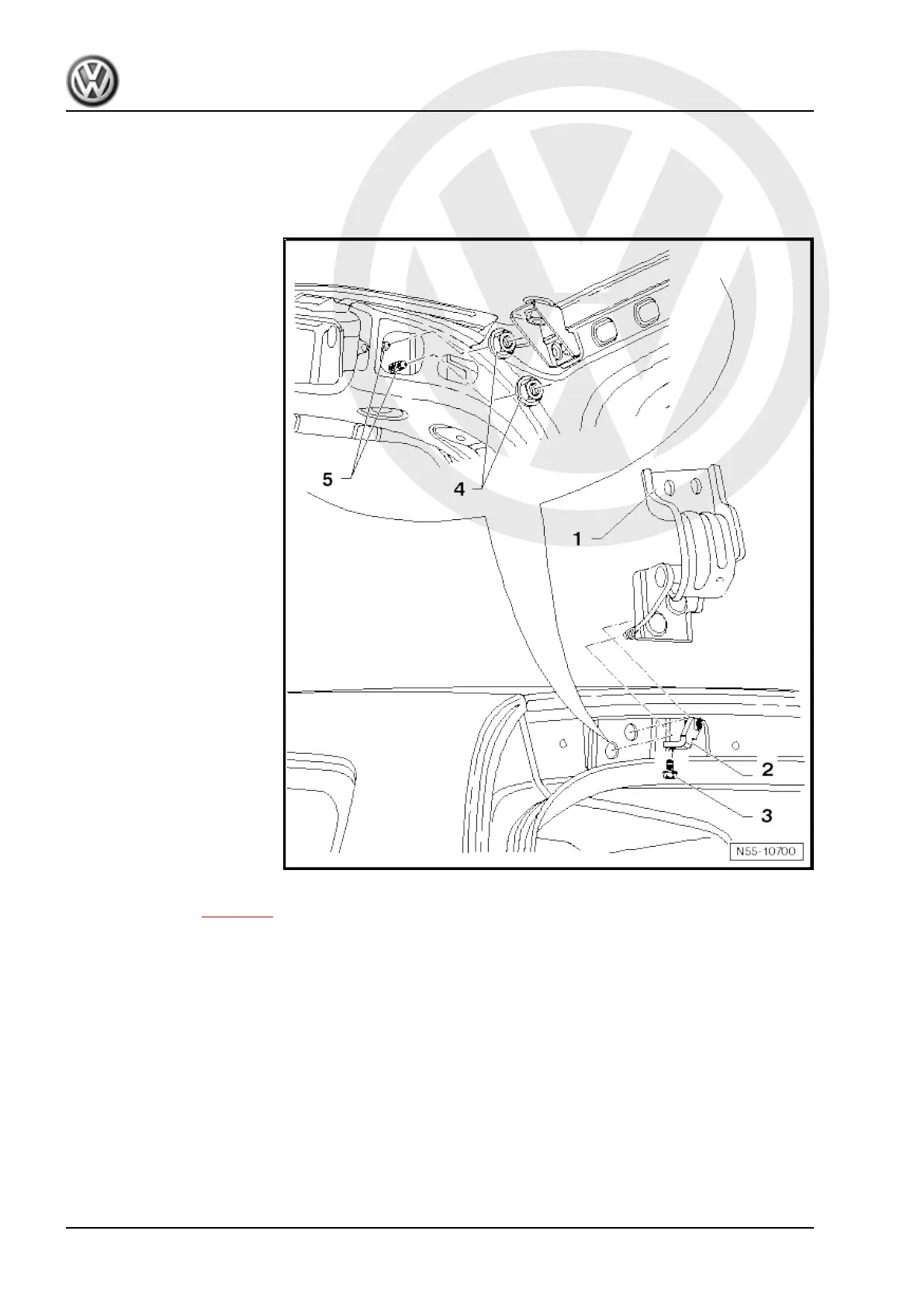

– If part of original equipment, remove bolt -3- for arm -2- leading
to motor in control unit. The arm remains in the vehicle.
– Remove hexagon nuts -4- from studs -5- of hinge on interior
of vehicle and remove hinge -1- from outside.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
62 Rep. gr.55 - Bonnet, rear lid
