1.3 Assembly overview - rear wheel housing
liner
1.3.1 Rear wheel housing liner
Note
♦
The illustrations show the left-hand side. The right side is analogous.
♦
Minor differences may be encountered in respect of rear wheel housing liner, depending on vehicle model.

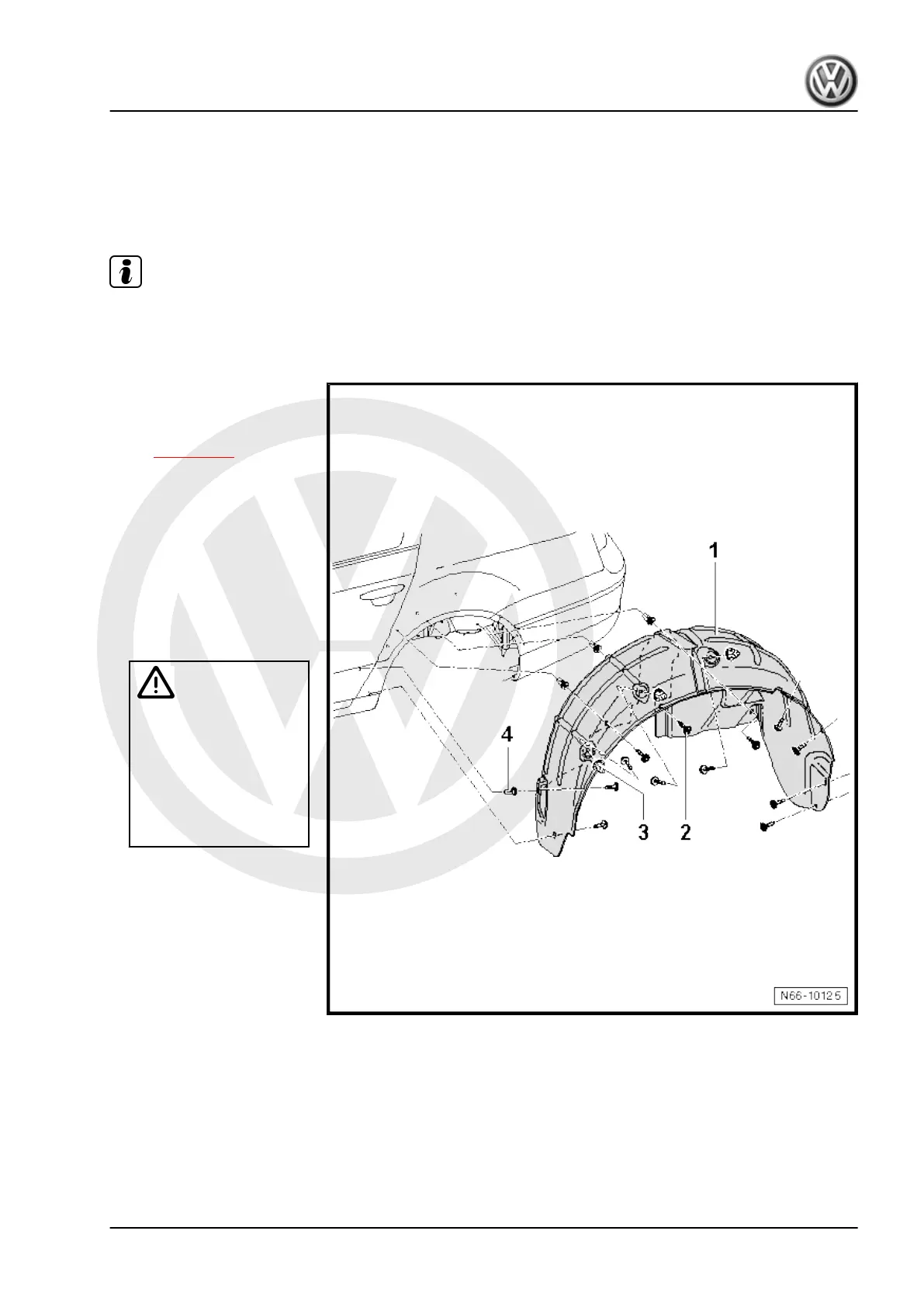

1 - Wheel housing liner
❑ Material: PP/EPDM
❑ Removing and installing
⇒ page 382
2 - Bolt
❑ Vehicles up to 10.2010:
qty. 12
❑ Vehicles from 11.2010:
qty. 11
❑ Specified torque: 2 Nm
3 - Expansion nut
❑ Gas-tight.
❑ Qty. 3
WARNING
♦Check gas-tight spreader
nuts for damage and re‐
new if necessary.
♦The spreader nut seals
the interior against ex‐
haust gases and must al‐
ways be renewed in the
event of damage.
4 - Speed nut
❑ Qty. 4
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
1. Wheel housing liner 379
