3.5 Removing and installing bonnet lock
3.5.1 Removing
– Remove rear lid trim ⇒ General body repairs, interior; Rep.
gr. 70 ; Rear lid trim; Removing and installing rear lid trim
(estate)

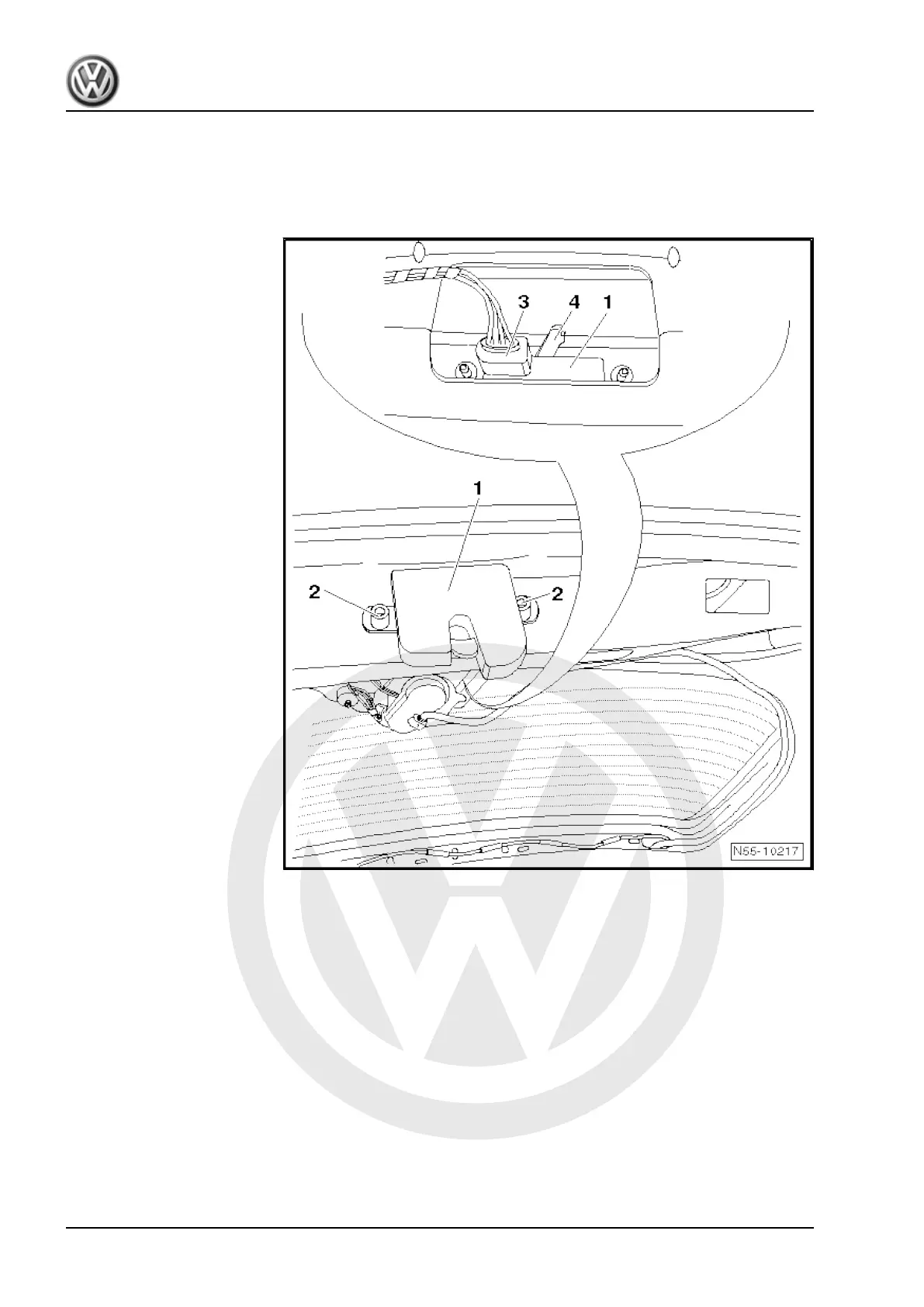

– Disconnect connector -3- on back of lock.
– Remove bolts -2- and take off lock -1- from rear lid.
The rear lid can be opened using emergency release -4- for elec‐
trical malfunctions. Emergency release is accessible through an
aperture in rear lid trim.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
64 Rep. gr.55 - Bonnet, rear lid
