13.7.2 Installing front wheel housing trim
– Prepare wheel housing for bonding ⇒ page 443 .
– Feed front wheel arch trim -1- under side member extension
-4- -arrow a-.
– Pull off backing from adhesive tape -3-.
– Press front wheel arch trim firmly on.
– Tighten bolt -2- to specified torque of 2 Nm.
– Minimum curing period ⇒ page 444

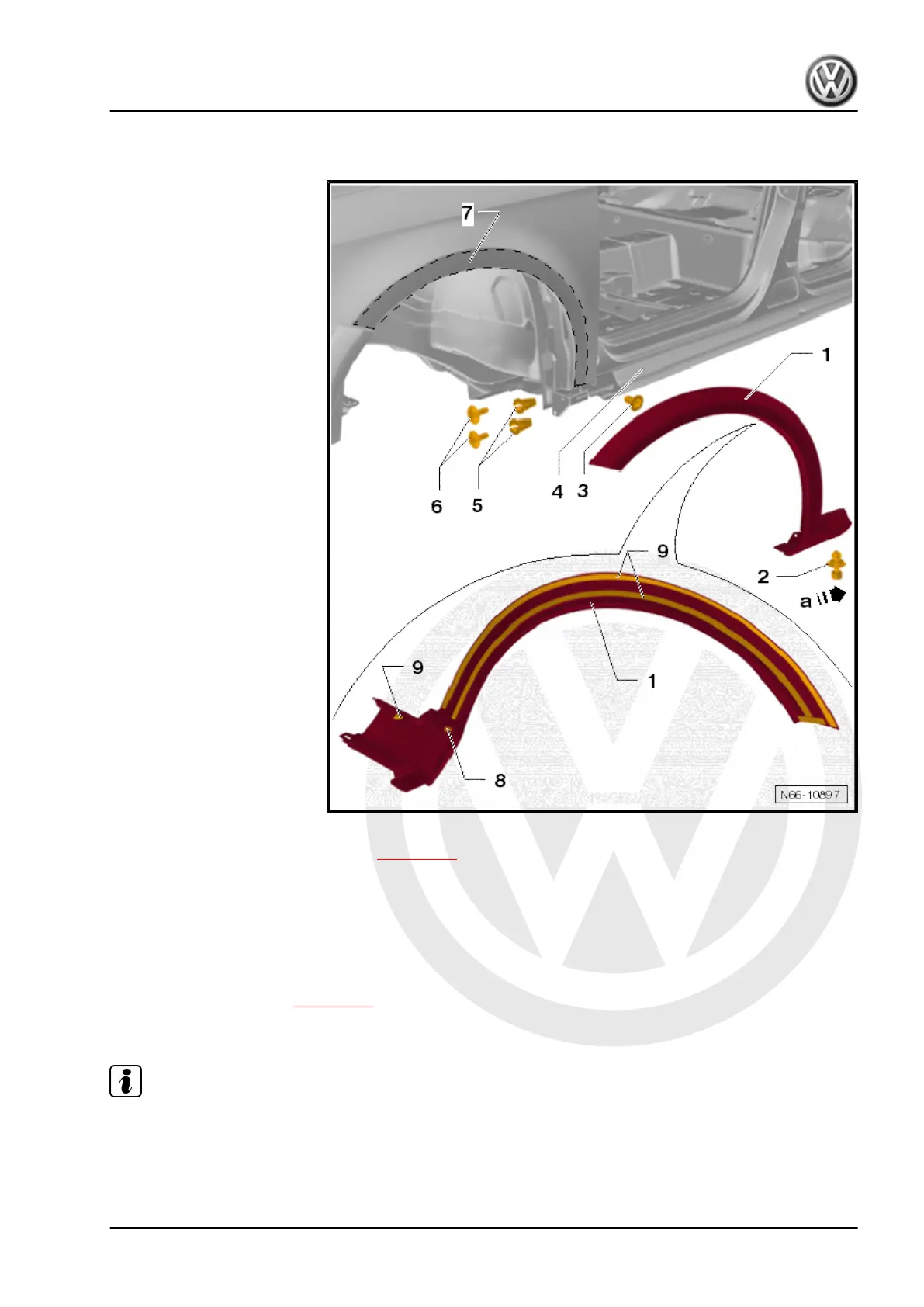

13.8 Rear wheel arch trim
Note
♦
Installation of the wheel arch trim is described only for the left
side. The right side is analogous.
♦
The wheel arch trim cannot be removed without damaging it.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
13. Add-on parts, Passat Alltrack 441
