– In
the case of vehicles with adaptive cruise control, the sensor
for adaptive cruise control - G550- has to be adjusted ⇒ Ve‐
hicle diagnostic tester.

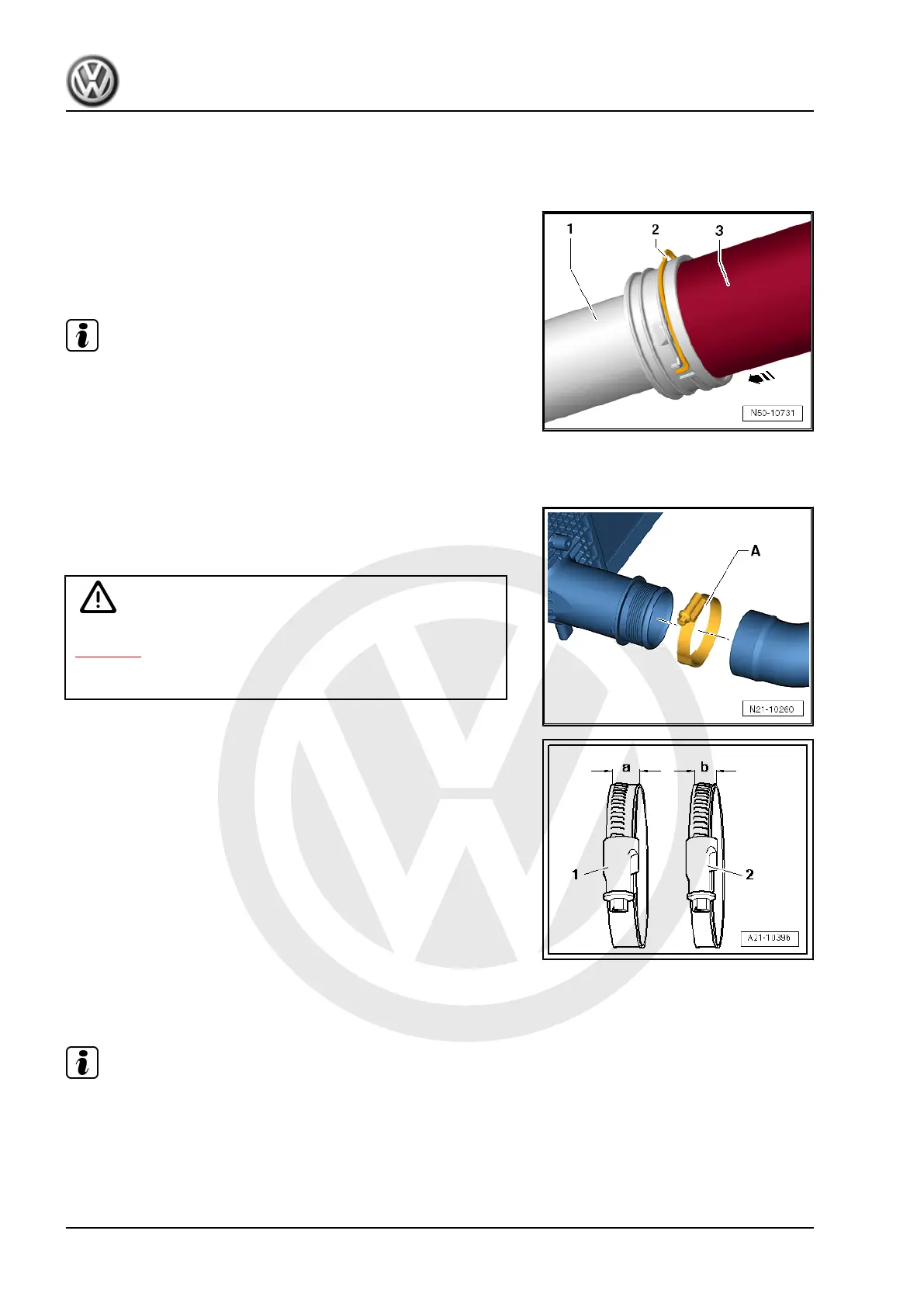

Engaging pressure hose with plug-in connector
• Make sure that retaining clip -2- is in upper position.
– Insert pressure hose -3- in direction of -arrow- into coupling
-1-.
– Press retaining clip -2- all the way downwards.
Note
♦
If the retaining clip cannot be pushed down fully, the pressure
hose is not inserted far enough into the plug-in connector.
♦
Press pressure hose further in, and engage retaining clip.
• Check push-fit coupling by pulling on it.
Installing pressure hose with hose clip
– Push pressure hose together with hose clip -A- to stop onto
corrugated pipe connection.
– Tighten bolt of hose clip -A-.
Caution
The bolt of hose clip -A- must be tightened as prescribed
⇒ page 8 . If the specified torque is too low or too high, the
pressure hose may slip off the corrugated pipe connection
when the vehicle is being driven.
Specified torque for hose clips
1 - Hose clip -a- = 13 mm wide: 5.5 Nm
2 - Hose clip -b- = 9 mm wide: 3 Nm
1.3 Removing and installing lock carrier
Removing
Note
♦
The lock carrier is a safety-relevant component. It must not be repaired for this reason.
♦
In the event of damage, renew lock carrier.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
8 Rep. gr.50 - Body - front
