2 Wings

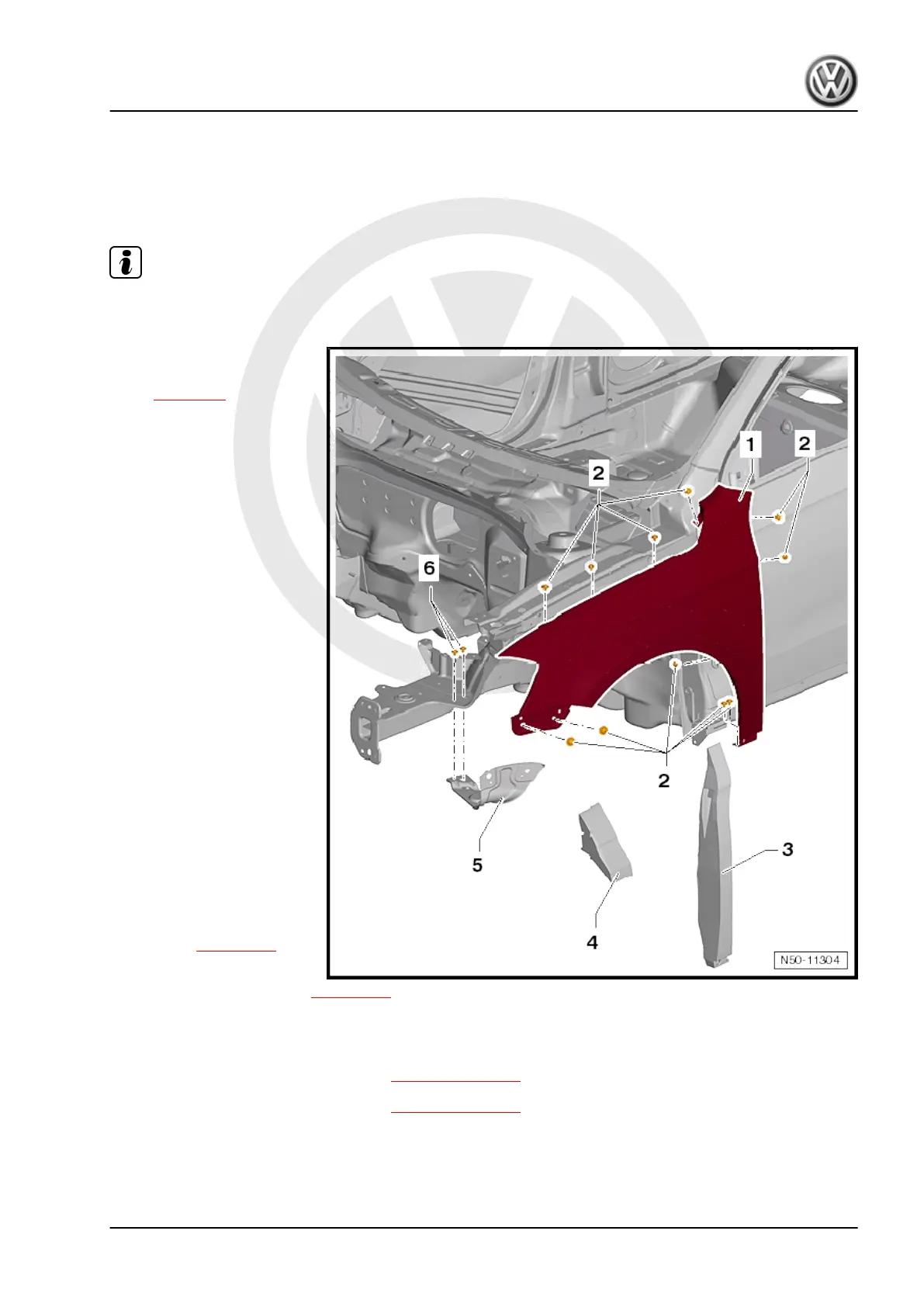

2.1 Assembly overview - front wing
Note
The illustrations show the left-hand side. The right side is analogous.
1 - Wings
❑ Removing and installing
⇒ page 12
2 - Bolt
❑
Qty. 3, A-pillar
❑ Qty. 1, wheel housing
❑ Qty. 2, side member
❑ Qty. 2, wing bracket
❑ Qty. 3, wing connection
piece
❑ Specified torque:
7.5 Nm
3 - End plate insulation
❑ Removing:
– Pull insulation off A-pil‐
lar at bottom in direction
of travel and pull out
downwards.
4 - Foam element
❑ Inserted between wing
and longitudinal mem‐
ber for top of wheel arch
❑ Removing:
– Pull foam element out
downwards.
5 - Wing bracket
❑ Removing:
– Remove front bumper
cover
⇒ page 280 .
–
Remove guide at side
for front bumper cover
⇒ page 285 .
–
Unscrew bolts -2- and -6-
❑ Installing:
– Tighten bolts -2-. Specified torque
⇒ Item 2 (page 11)
–
Tighten bolts -6-. Specified torque
⇒ Item 6 (page 11)
– Wing
brace must be adapted together with wing to bonnet and front bumper cover ⇒ Body Repairs; Rep.
gr. 00 ; Body panel gaps/shut lines; Body - front .
6 - Bolt
❑ Qty. 2
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
2. Wings 11
