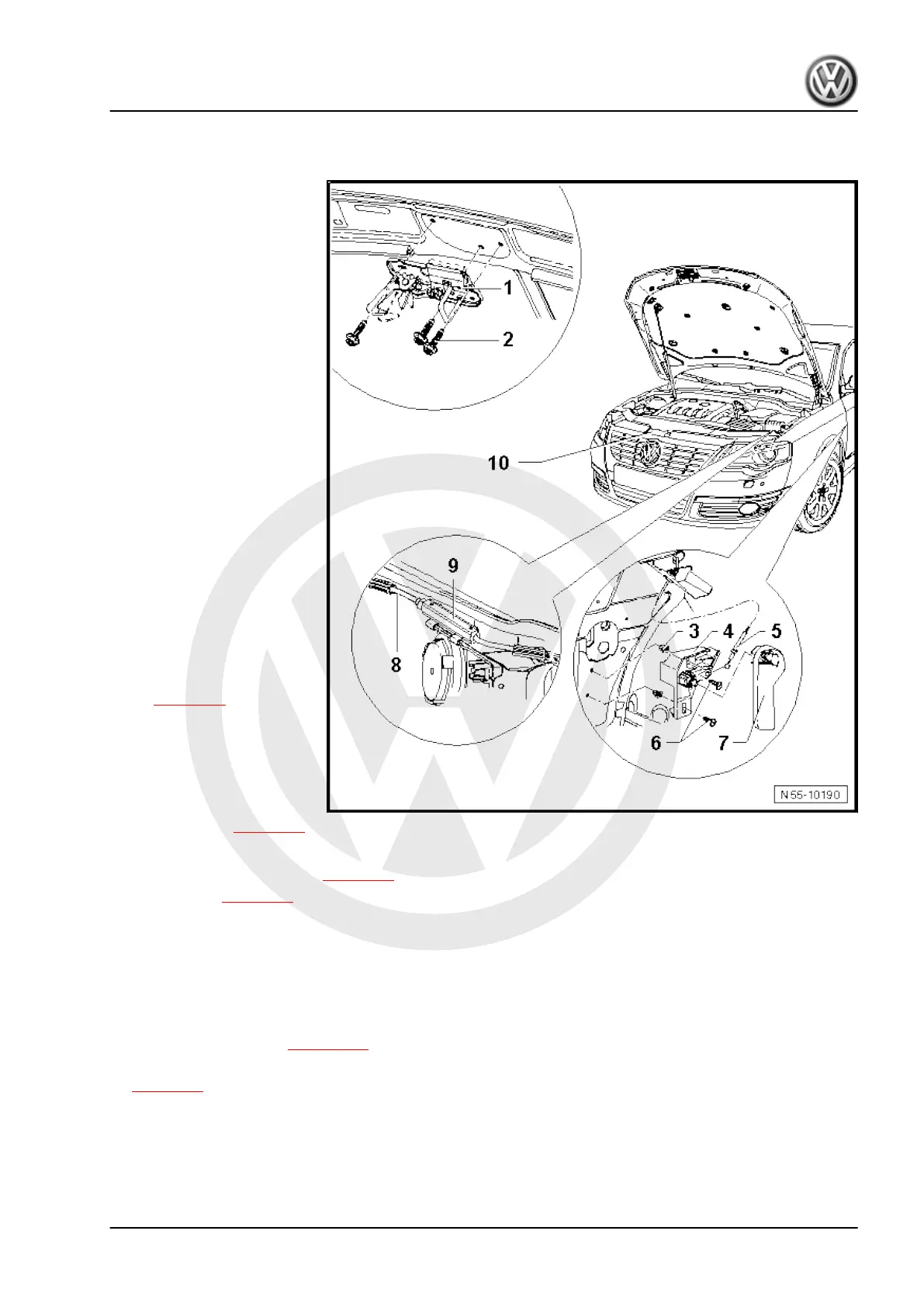

1.8 Assembly overview - bonnet lock and release components
1 - Arrester
❑
Removing:
– Unscrew bolts -2- and
remove arrester.
❑ Adjusting:
– Adjustment is carried
out by moving arrester
to left or right in elonga‐
ted holes.
2 - Bolt
❑ Qty. 3
❑ Specified torque: 10 Nm
3 - Expansion nut
❑ Qty. 2
4 - Mounting bracket
5 - Bowden cable
❑ Clipped into mounting
bracket.
6 - Bolt
❑ Qty. 2
❑ Specified torque: 3 Nm
7 - Operating lever
❑ Removing and installing
⇒ page 36
8 - Bowden cable
❑
Clipped onto wheel
housing and lock carri‐
er.
9 - Bowden cable coupling
❑ Separating
⇒ page 33
10 - Bonnet lock
❑
Removing and installing
⇒ page 31
❑
Adjusting
⇒ page 35
1.9 Removing and installing bonnet lock
1.9.1 Removing
– Remove radiator grille ⇒ page 394 .
– Detach Bowden cable at Bowden cable coupling
⇒ page 33 .
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
1. Bonnet (hood) 31
