1.16 Removing undamaged side window (estate)
Note
Removal and installation are described only for the left side window. Removal and installation of the right side
window are analogous.
– Detach luggage compartment trim in upper area ⇒ General
body repairs, interior; Rep. gr. 70 ; Load and luggage com‐
partment trims .
– Remove C- and D-pillar trim ⇒ General body repairs, interior;
Rep. gr. 70 ; Pillar trims .

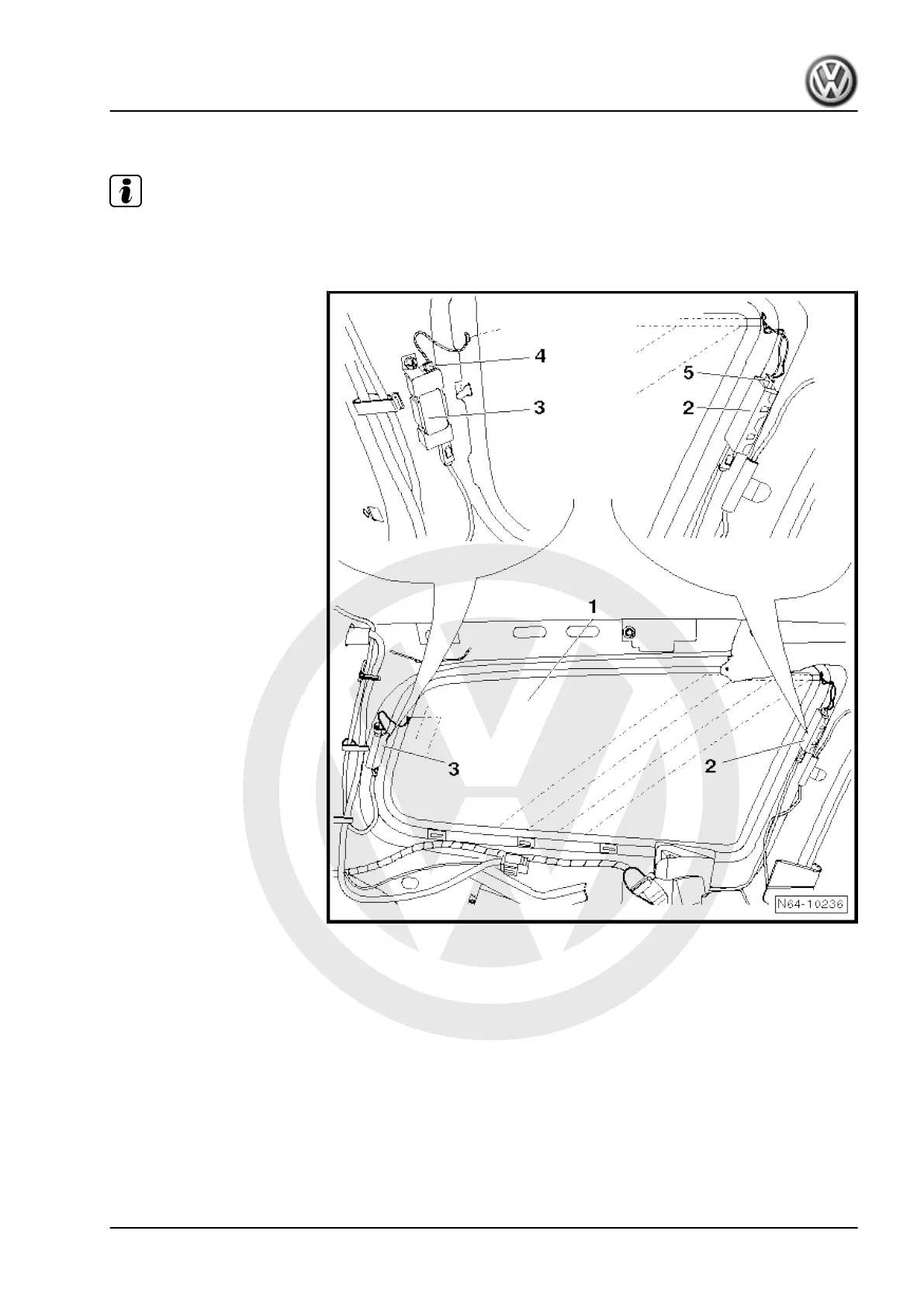

– If part of installed equipment; pull connections -4 and 5- off
connections -2 and 3-.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
1. Flush bonded windows 333
