3.9 Removing and installing drive for swivelling ball head
Removing

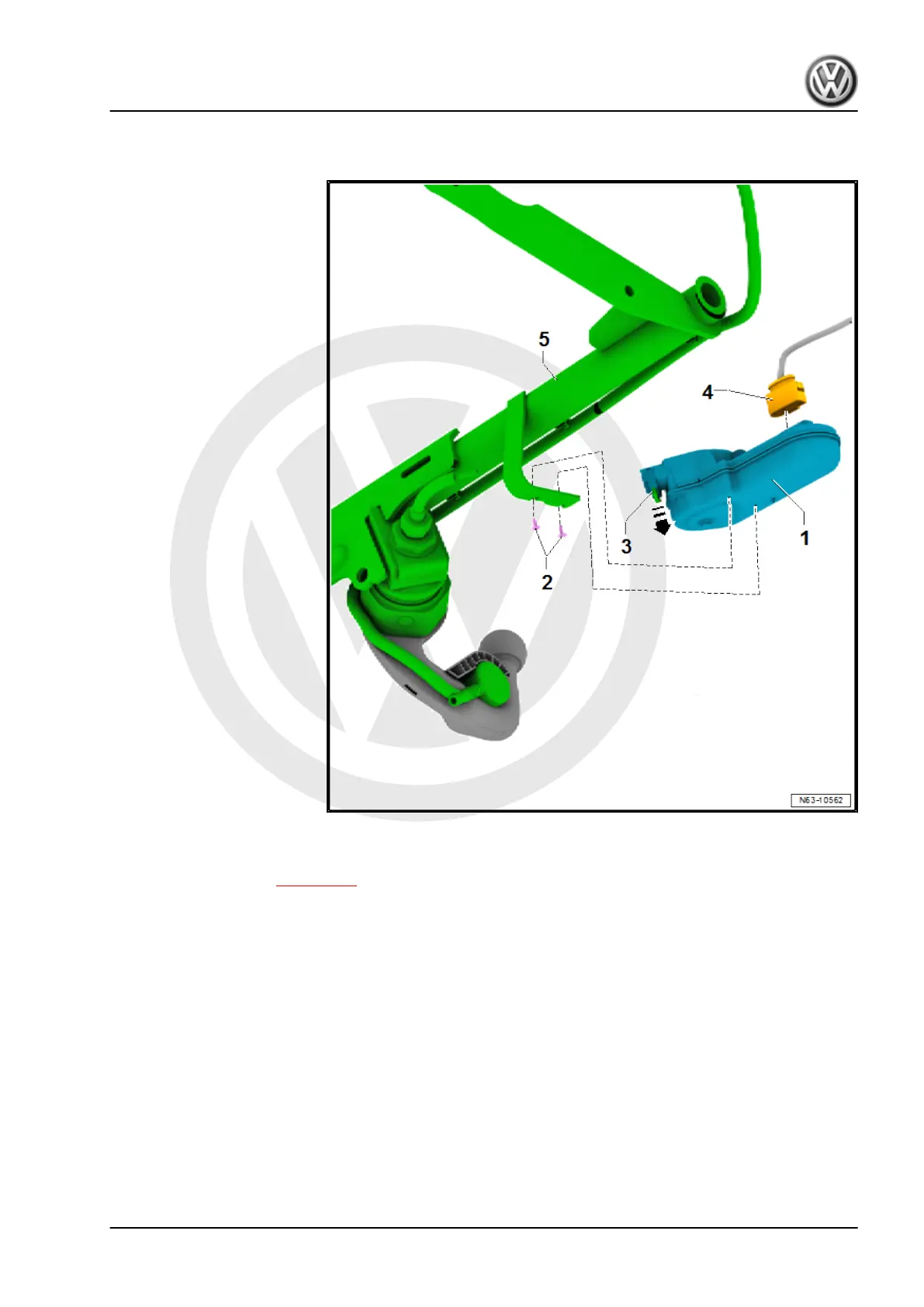

Remove towing bracket ⇒ page 317 .
– Disconnect connector -4-.
– Pull down locking mechanism -3- -arrow-.
– Remove bolts -2- and remove drive -1-.
Installing
– Push drive -1- onto Bowden cable.
– Press in locking mechanism -3-. Ensure that connection is
firmly seated.
– Tighten bolts -2-. Specified torque: 1 Nm.
– Connect connector -4-.
– Adapt drive using ⇒ Vehicle diagnostic tester.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
3. Rear bumper cover (estate) 319
