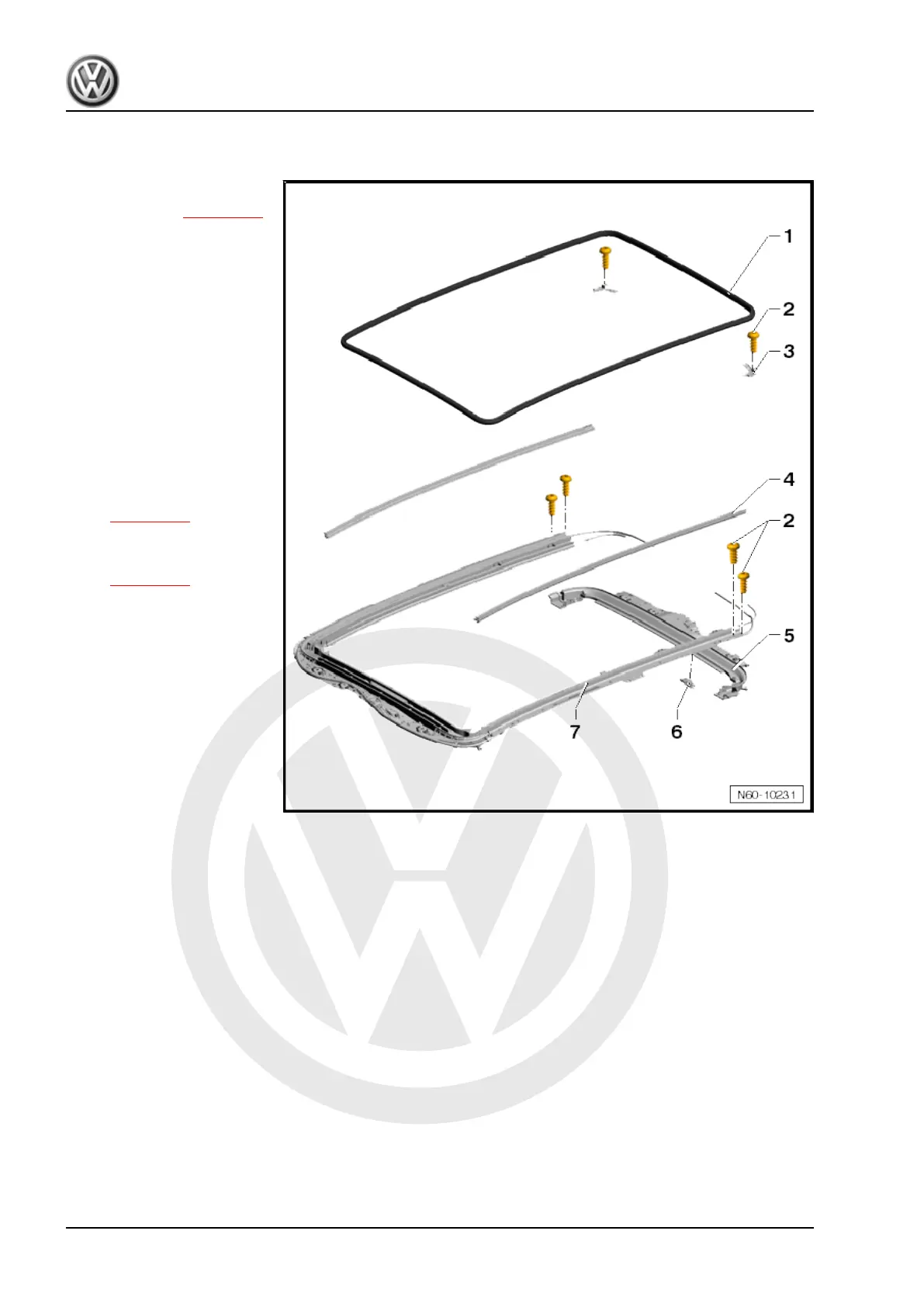

3.17 Assembly overview - assembly frame
1 - Inner seal
❑ Renewing ⇒ page 229
2 - Bolt
❑ For the cover
❑ Specified torque: 2 Nm
3 - Cover
❑ Part of inner seal
❑ Cannot be renewed in‐
dividually
4 - Sunroof sun blind rail
❑ Part of guide rail
❑ Cannot be renewed in‐
dividually
5 - Rear part
❑ Removing and installing
⇒ page 258
6 - Rear motor plate
❑ Removing and installing
⇒ page 251
7 - Guide rail with front part
❑ Cannot be renewed in‐
dividually
❑ Part of the front part
