3.15 Removing and installing sun blind
3.15.1 Removing
Note
In the event of power failure, sun blind can be moved by turning sun blind motor with a commercially available
hexagon key to removal position (fully open) ⇒ page 270 .
– Open sun blind completely.
– Remove moulded headliner ⇒ General body repairs, interior;
Rep. gr. 70 ; Roof trim .
– Remove rear glass panel ⇒ page 219 .

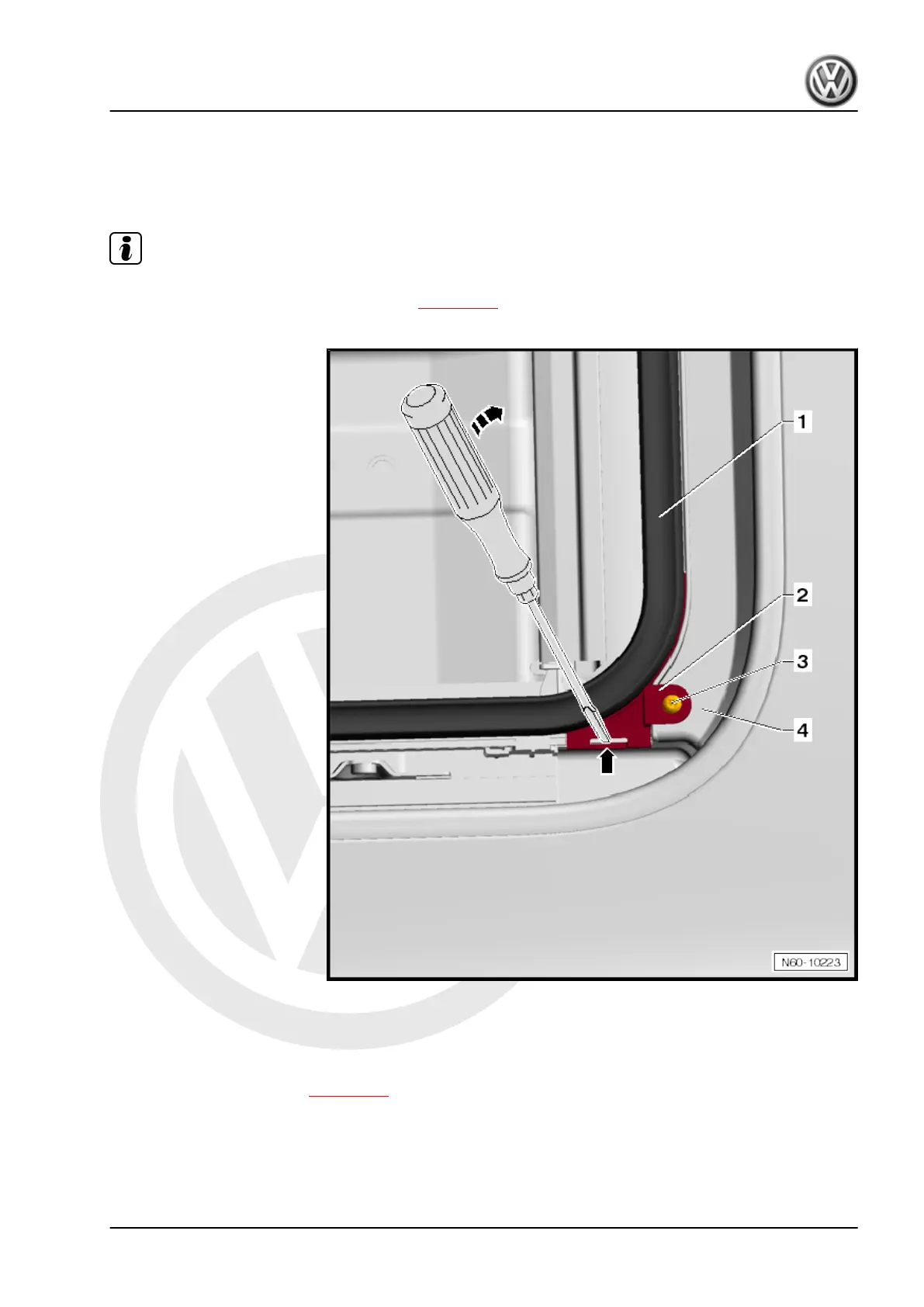

– Undo and remove screws -3- of cover -2-.
– Release catch -arrow- of cover -2- from the rear section -4-
using a screwdriver.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
3. Panorama sliding sunroof (Arvin-Meritor) 241
