– Insert front-end hook - 3370- between edge of roof and wind
deflector bearing -arrow-.
– Pull wind deflector bearings out of detents on left and right in
direction of -arrow-, using front-end hook - 3370- .
– Remove wind deflector upwards out of guide rails.
1.10.2 Installing
– Place wind deflector in guide rail and slide wind deflector with
height limit stop under front of roof aperture on both sides.
– Using light pressure, press wind deflector bearings into guide
rails.
Note
Wind deflector bearings must audibly engage in the guide rails.
1.10.3 Adjusting

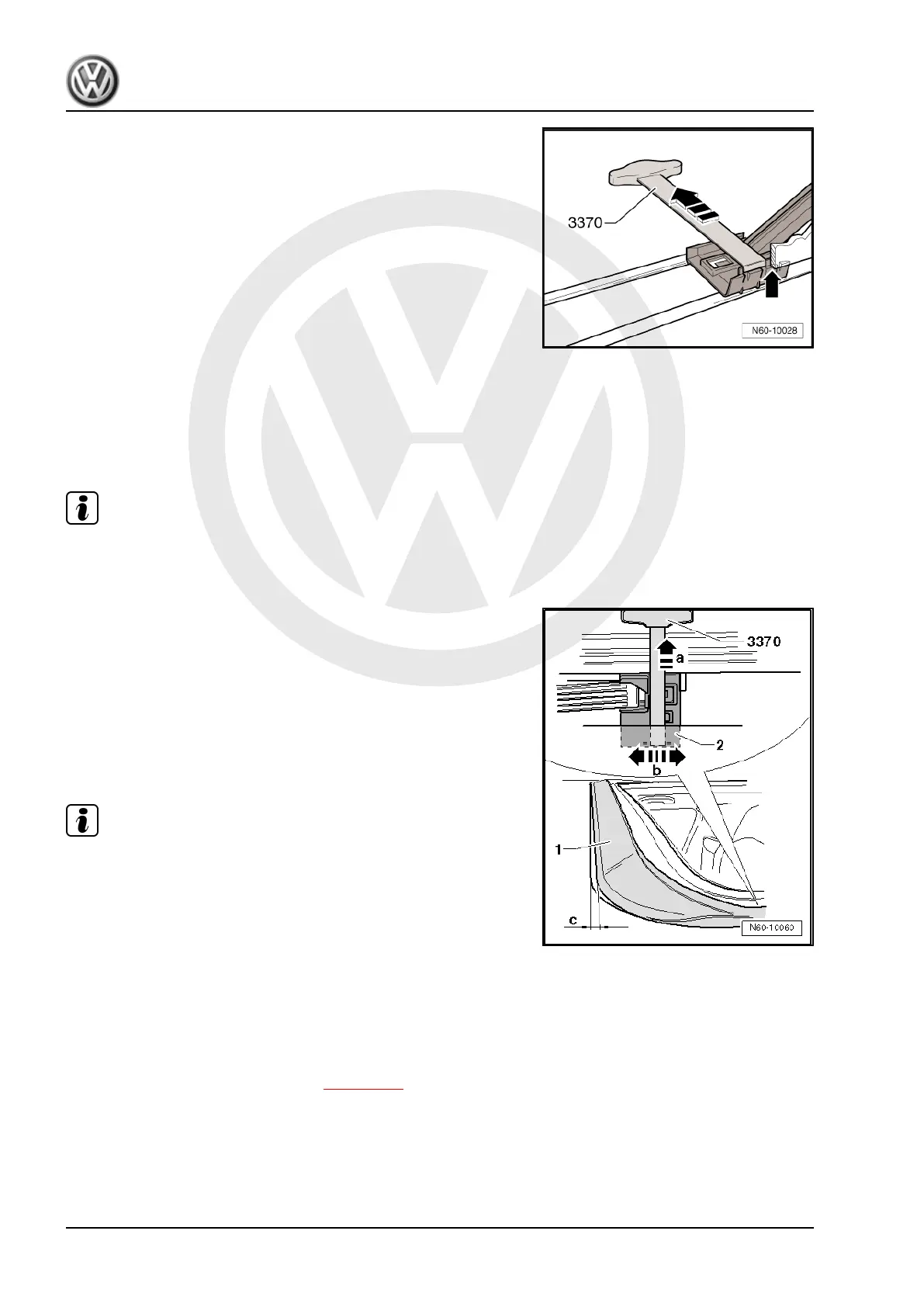

– Insert front-end hook - 3370- between edge of roof and wind
deflector bearing -2-.
– Pull wind deflector bearings -2- out of locking devices of left
and right guide rails in -direction of arrow a- using front-end
hook - 3370- .
– Slide wind deflector -1- parallel in guide rails -arrow b- until a
uniform distance -c- between 0.3 mm and 1.3 mm has been
attained.
– Press wind deflector bearings -2- into guide rails.
Note
Wind deflector bearings must audibly engage in the guide rails.
1.11 Removing and installing sliding headlin‐
er
1.11.1 Removing
– Removing glass panel for sunroof ⇒ page 180 .
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
184 Rep. gr.60 - Sunroof
