Instructions and work specifications for the Park Assist system
can be found in ⇒ Electrical system; Rep. gr. 94 ; Park Assist
system (PA)
– Place front bumper cover -1- onto middle guide on lock carrier,
keeping cover parallel to guide until they engage with each
other.
– Press front bumper cover -1- onto guides on left and right on
wing until they engage with each other.
– Ensure joints are parallel and shut lines are equal ⇒ Body Re‐
pairs; Rep. gr. 00 ; Body gaps; Body, front .
– Locate bolts -2-, -3- -4- and -5- and tighten them to respective
specified torque ⇒ page 279 .

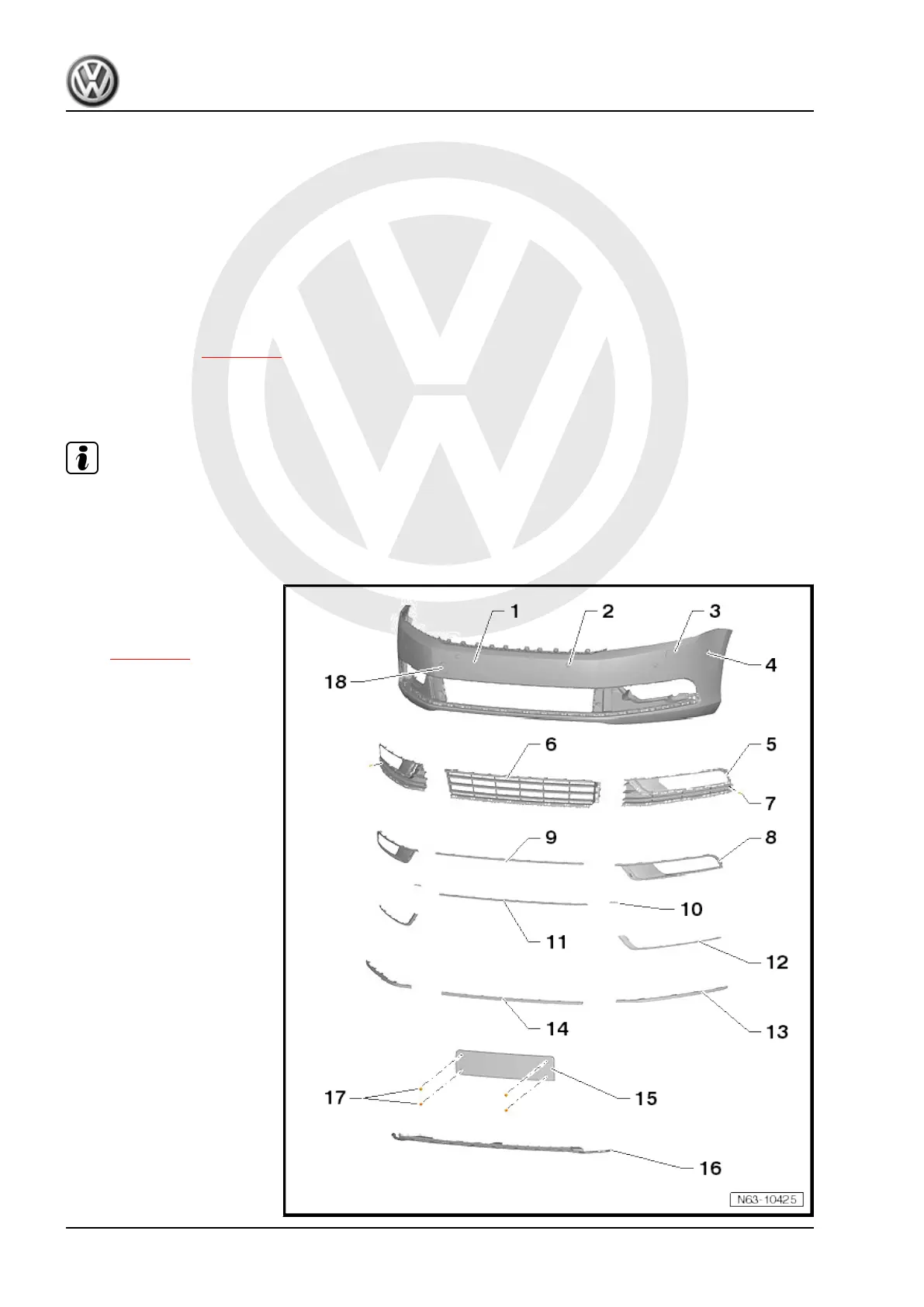

1.6 Front bumper cover add-on parts
Volkswagen R GmbH, optional equipment, »R Line«
Note
♦ The attachments may be slightly different, depending on vehicle model, and these differences must be taken
into account.
♦ The add-on parts apply to all models. The only differences are optical, depending on the model.
1 - Front bumper cover
❑ Material PP/EPDM.
❑ Removing and installing
⇒ page 280
2 - Parking aid sensor
❑ Instructions and work
specifications for the
Park Assist system ⇒
Electrical system; Rep.
gr. 94 ; Park Assist sys‐
tem (PA)
3 - Cover for headlight washer
system
❑ Left and right
❑ Instructions and work
specifications for the
headlight washer sys‐
tem ⇒ Electrical sys‐
tem; Rep. gr. 92 ; Head‐
light washer system
4 - Park assist steering send‐
ers
❑ Instructions and work
specifications for the
Park Assist system ⇒
Electrical system; Rep.
gr. 94 ; Park Assist sys‐
tem (PA) .
5 - Side air intake grille
❑ Left and right
❑ Different versions, allo‐
cation ⇒ Electronic
parts catalogue “ETKA”
❑ Removing:
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
282 Rep. gr.63 - Bumpers
