8 - Centre air intake grille
❑ Clipped in front bumper cover
❑ Can only be removed with front bumper cover removed and the side air intake grilles removed
9 - Cover for towing eye
10 - Side air intake grille
❑ Removing:
– Release from catches from the middle
– Pull out of side insert to centre.
11 - Right trim
❑ Extension of wheel arch trim
❑ Engaged in bumper cover -1-.
❑ Remove only when bumper cover -1- is removed.

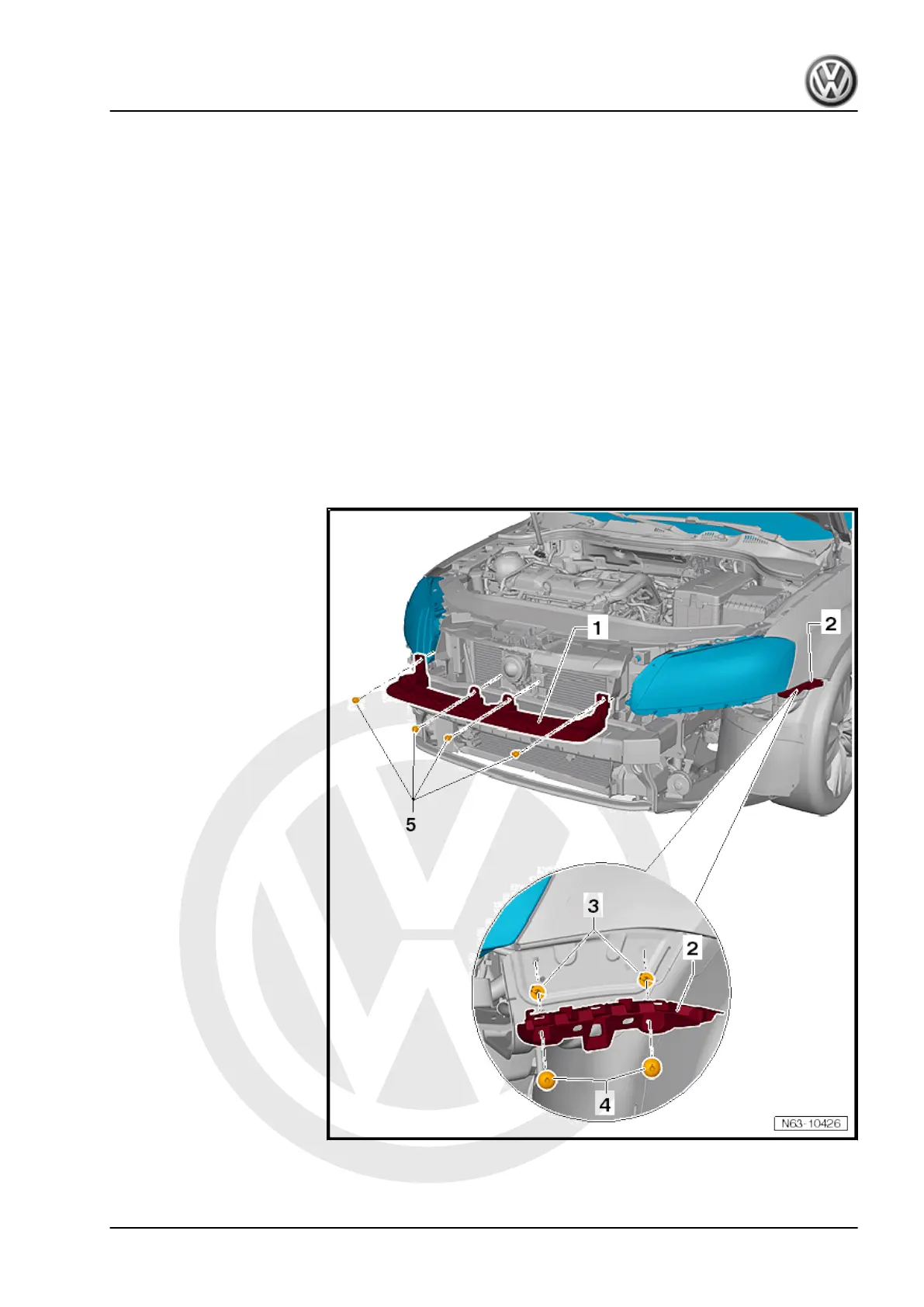

1.8 Front bumper cover substructure parts
1 - Centre guide profile
2 - Guide profile
❑ Left and right
3 - Expansion nut
❑ Qty. 2 on each side
4 - Bolt
❑ Qty. 2 on each side
❑ Specified torque: 3 Nm
5 - Bolt
❑ Qty. 4
❑ Specified torque: 8 Nm
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
1. Front bumper cover 285
